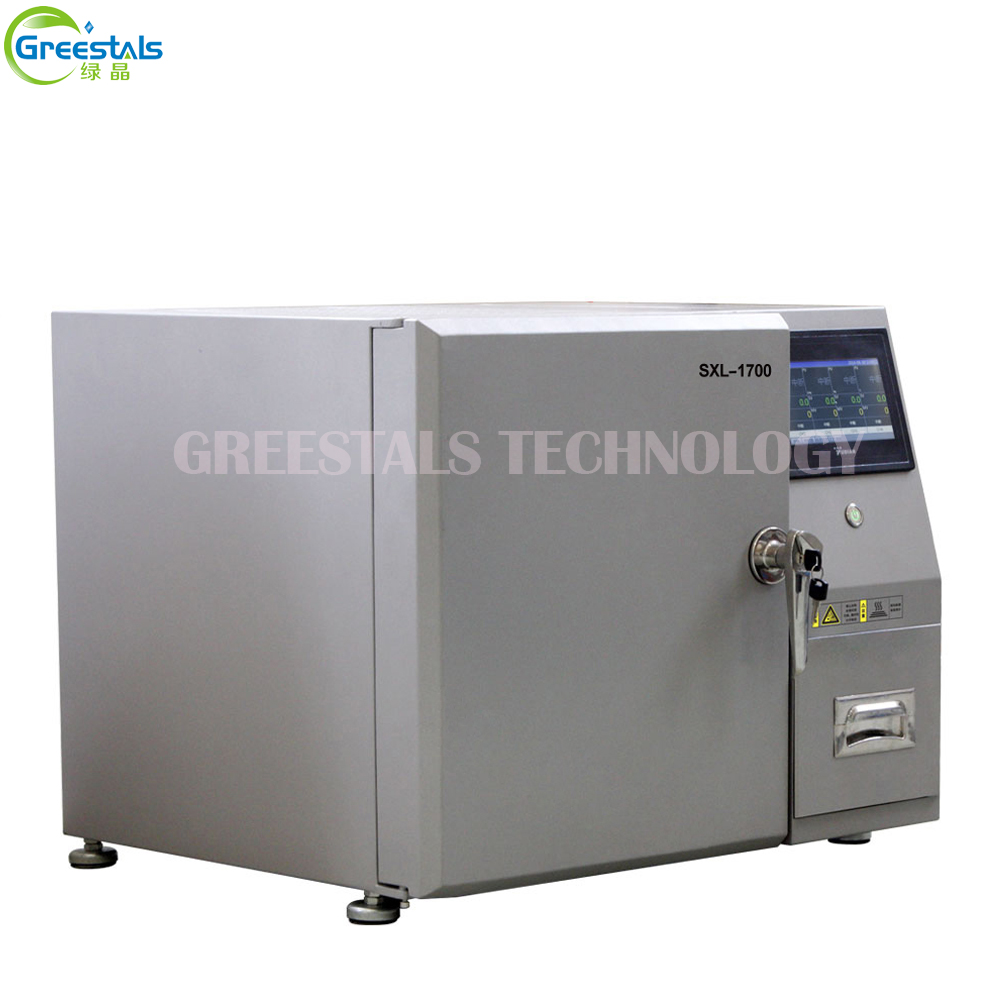

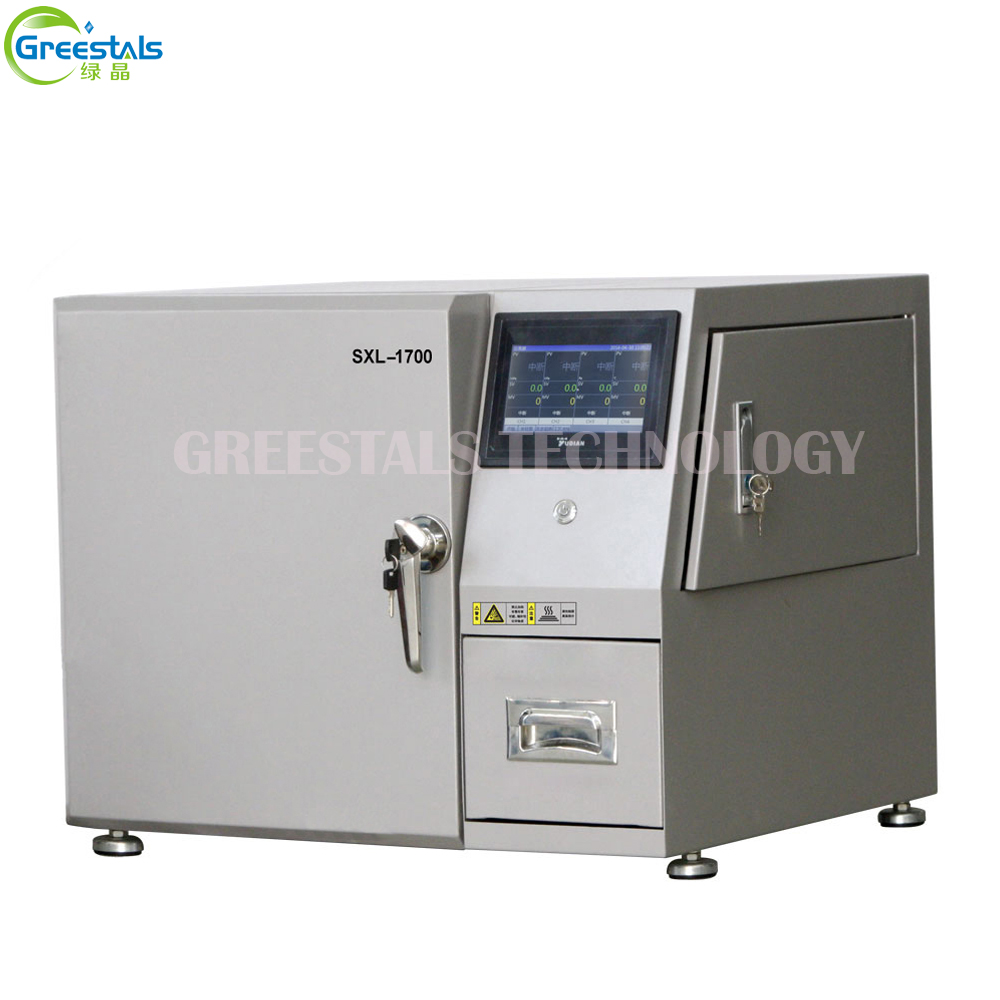

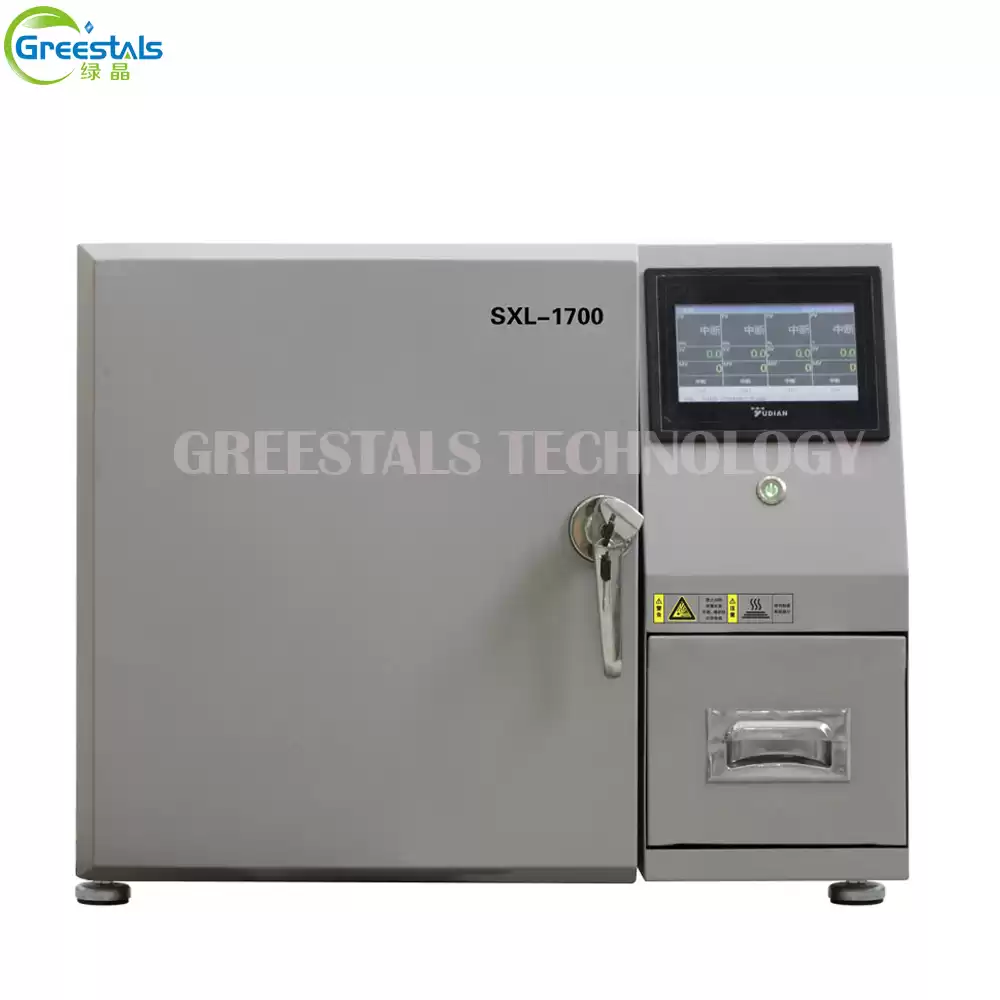

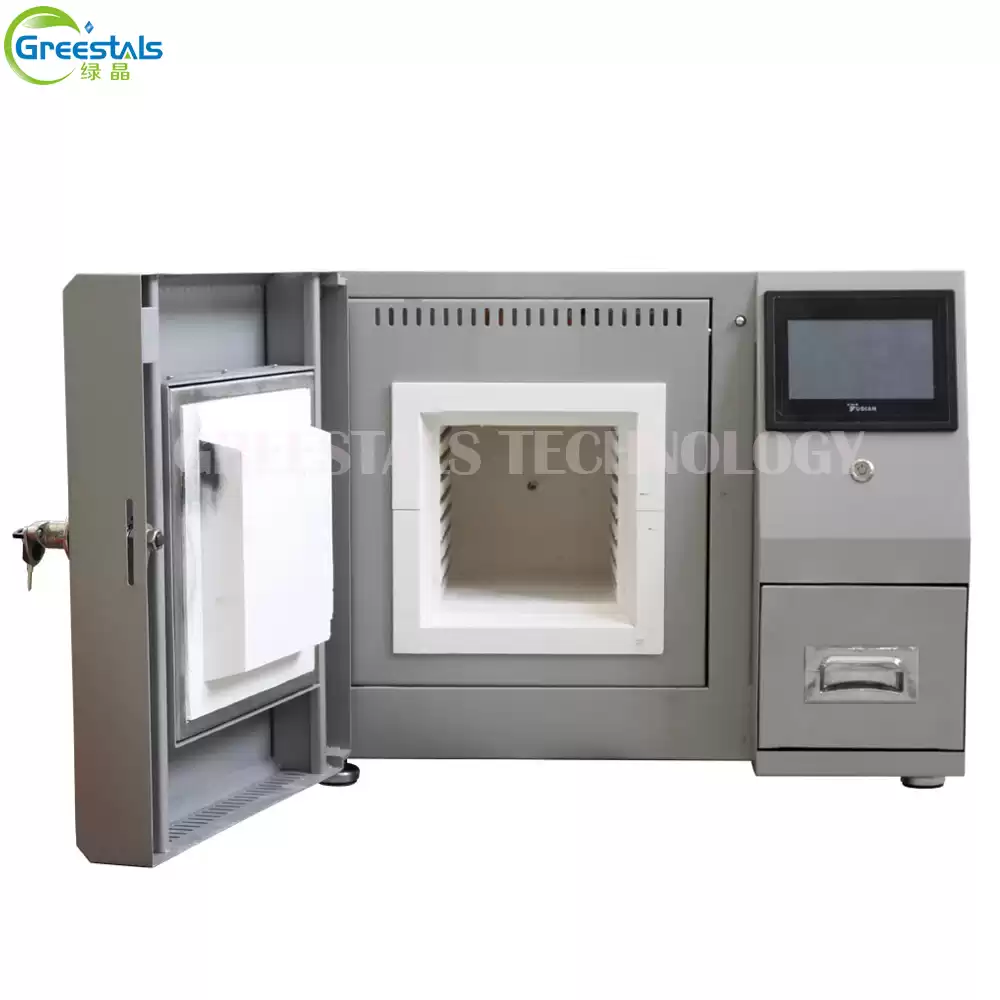

1700℃ Touch Screen Box type electric lab muffle furnace

Box type electric lab muffle furnace is adopted unique touch-screen control system, intelligence operations, graphic interface operation more convenient; unlock the door will power off


  • Furnace Tube Size
  • Max Temperature1700℃
  • Heating Zone Size400*300*300mm


Box type electric lab muffle furnace is adopted unique touch-screen control system, intelligence operations, graphic interface operation more convenient; unlock the door will power off, experimental operation safer; pull-out lockers can be placed experiments necessary accessories, improve work efficiency; intelligent temperature control system program, phase trigger, SCR control, high precision; Japanese technology vacuum molding quality polycrystalline alumina fiber, high-quality heating elements, the experimental process without dregs, oxidation and other foreign matter.


Main function & Features:

1. Use 7 inch touch screen, all the data (heating program, heating curve, etc.) can be setting on the touch screen, and all the setting data and operations are graphic interface, easy to operate;

2. Operator can preset multiple heating curve, assigned to different sintering materials, direct call when needed, without disturbing each other, without having to repeat the modified temperature parameters;

3. Data storage, output, use a U disk can be copied to your computer, save in Excel format as report;

4. Furnace chamber Japanese technology vacuum molding quality polycrystalline alumina fibers, good insulation effect, durable energy conservation; And on the furnace chamber surface with high temperature insulation coating, ensure furnace good heating performance.

5. The temperature control system uses artificial intelligence technology, with PID control, self-tuning function

6. Temperature control accuracy: ±1℃

7. Heating rate: Recommend 10℃/min, Max. 30℃/min

8. Double shell design, air insulation technology with intelligent thermal sensing technology-driven air-cooled system, quickly and effectively reduce the case temperature, improve the cooling efficiency;

9. Over temperature and thermocouple damage power off automatically with alarm, leakage protection, ensure safe and reliable operation


Main applications:

Universities, research institutes, industrial and mining enterprises to do the powder sintering , sintering of ceramics, high temperature experiments, material handling, quality inspection purposes.


Model

Chamber size

(D*W*H, mm)

Rated

power

Heating

element

Thermocouple

Continous Working

Temperature

Max.

Temperature

Program

Segments

SXL-1200

300*200*200

4KW

Swedish

Kanthal alloy

wire

USA Omega

N mode

1100℃

1150℃

30

400*300*300

8KW

SXL-1400

300*200*200

6KW

silicon carbon

rod

S model

1300℃

1350℃

50

400*300*300

8KW

SXL-1700

300*200*200

6KW

silicon

molybdenum

rod

B mode

1600℃

1650℃

400*300*300

14KW


Standard Accessories:

Crucible tongs 1 pc, high temperature gloves 1 pc


Optional accessories:

Furnace frame; crucibles; tube, Oven gloves, Computer control software; Paperless recorder,etc.
