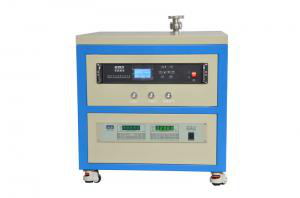

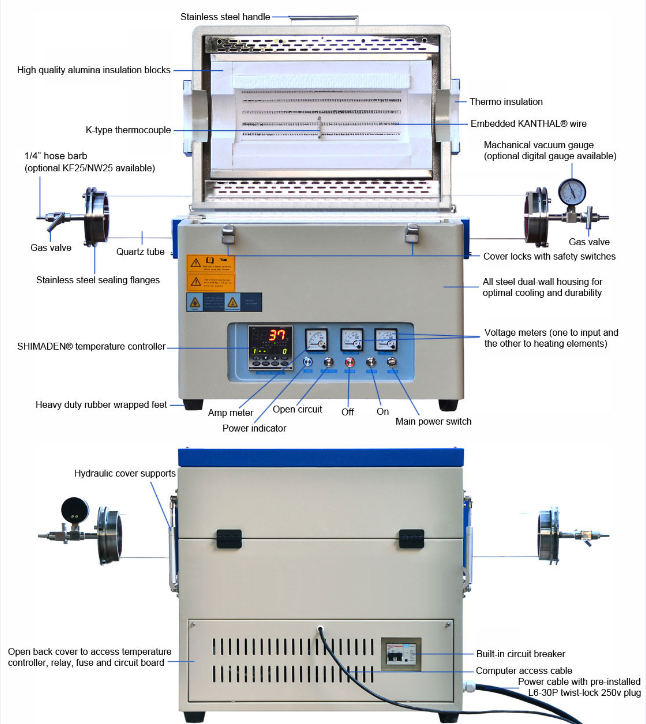

Model

TL1700-1700-I

TL1700-1700-II

TL1700-1700-III

TL1700-1700-IV

Power

7KW

7KW

10KW

10KW

Tube size

Dia60(OD)X1250mm

Dia80(OD)X1250mm

Dia60(OD)X1300mm

Dia80(OD)X1300mm

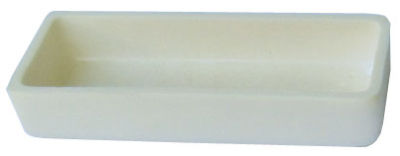

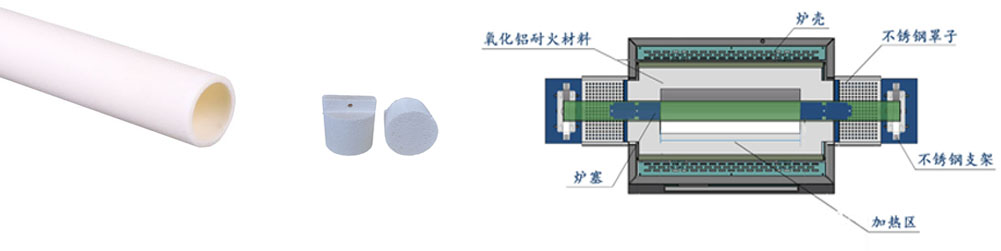

Two furnace plugs are placed on each side to block thermal radiation in the center of the furnace tube and must be placed in the correct position in the furnace chamber before heating.

The power supply voltage

220V/380V

Phase

Single

Heating element

Model 1800 silicon molybdenum bar

The control mode

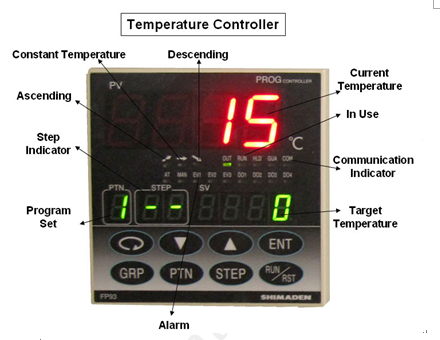

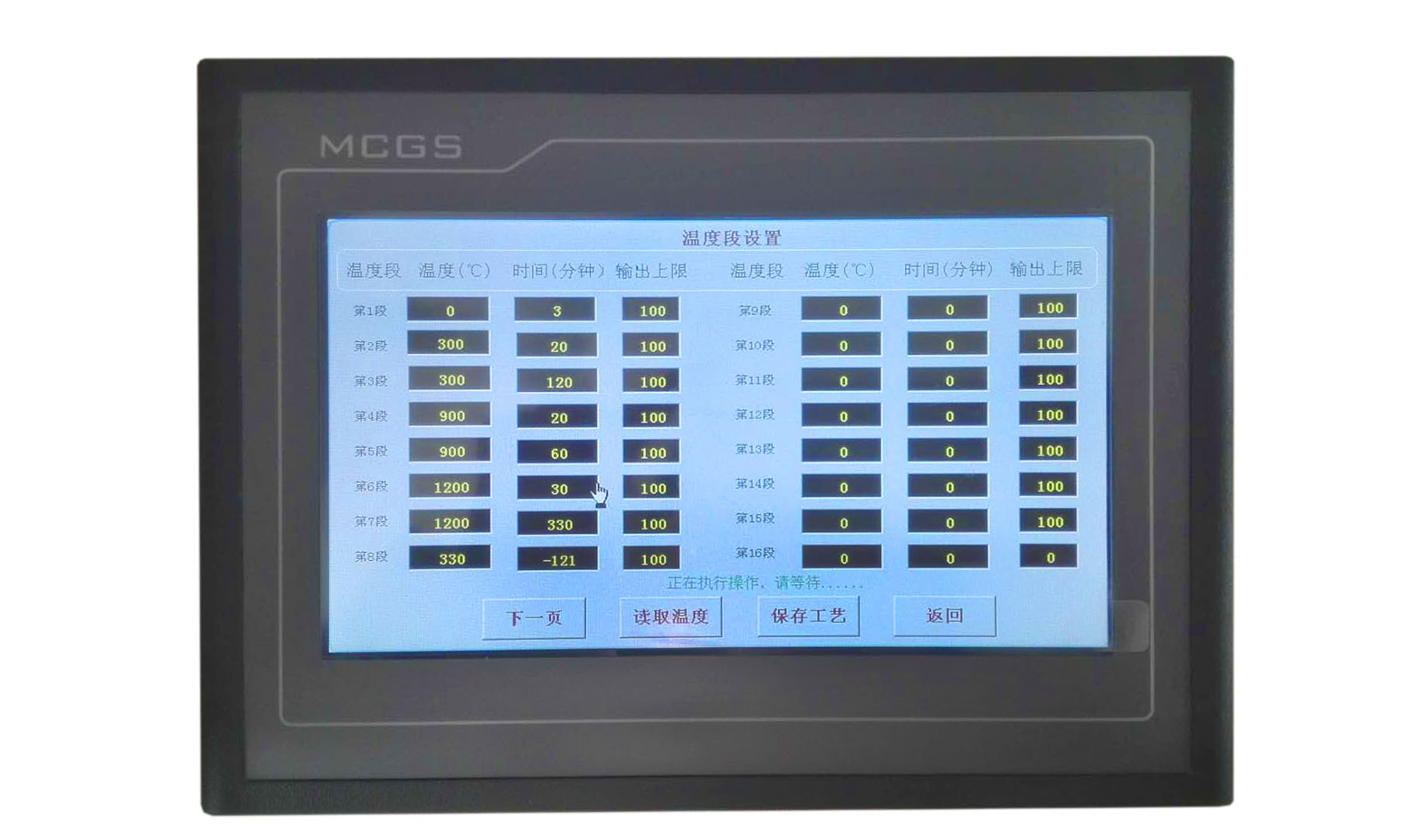

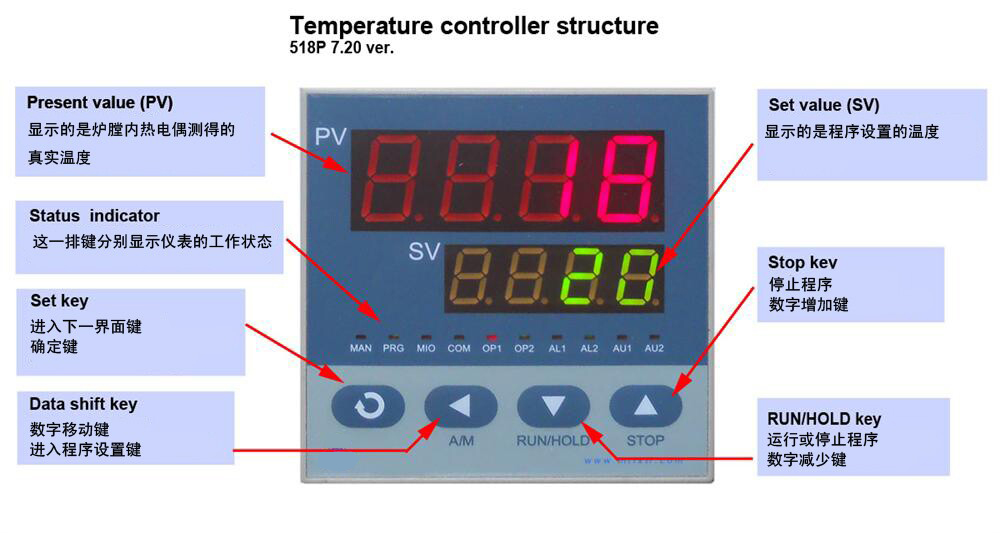

Temperature control meter using Yudian program(standard)

1、50 - segment programmed temperature control intelligent PID adjustment.

2、It has overtemperature protection and broken couple protection. When overtemperature or broken couple, the electric furnace heating circuit is automatically cut off.，(When the temperature of the electric furnace exceeds 1720 degrees or the thermocouple is burned OFF, the AC relay ON the main circuit will automatically disconnect, the main circuit will be disconnected, the ON lamp ON the panel will be OFF, the OFF lamp will be ON, the limited protection of the electric furnace).

3、With 485 communication interface（Software is available when purchasing）

4、With power off protection function, that is, after power off to start the furnace, the program does not start from the starting temperature, but from the starting temperature of the furnace when power off.

5、The instrument has the function of temperature self-setting

（Replace imported instrument, need to pay extra）

FP93 thermometer (Japan SHIMADEN) EUROTHERM instrument  Touch screen instrument

Chamber of a stove or furnace materials

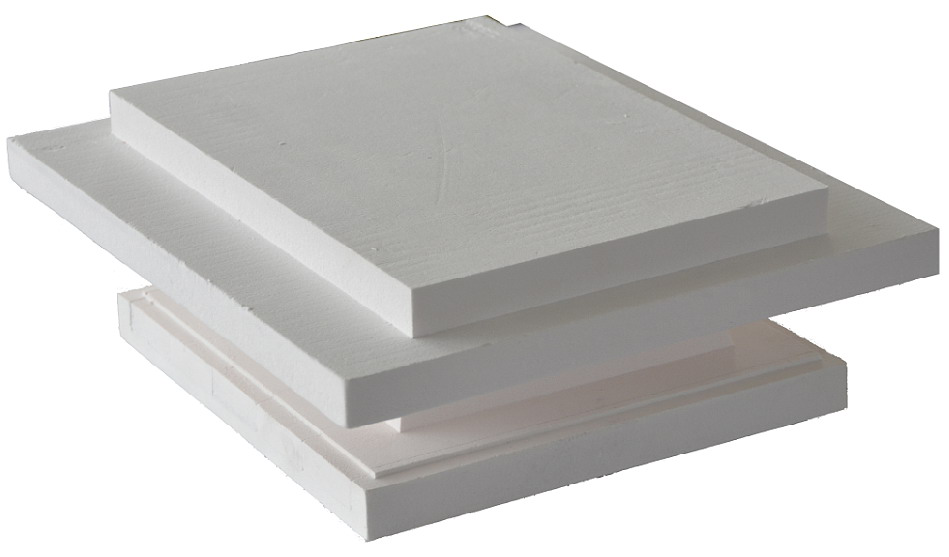

1. High quality high purity alumina polycrystalline fiber curing furnace formed by vacuum filtration.

2. Adopt Japanese technology to form, do not drop slag, good heat preservation

Control precision

+/- 1 ℃

Trigger

Phase shift trigger

Electrical appliances

Zhejiang chint

Silicon controlled rectifier

106/16E Ximenkang, Germany

The highest temperature

1700 ℃

The rated temperature

1650 ℃

Heating rate

   ≤20 ℃/ Min （It can be modified as required）

Recommended rate of heating

  ≤10℃/ Min

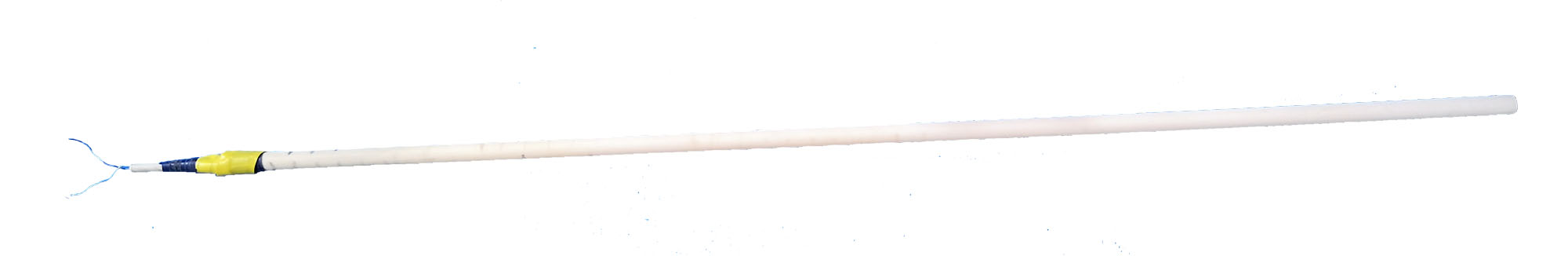

Model of thermocouple in the first and second temperature zones

Type B

Length of heating section

210+210mm

Length of constant temperature section

250-300 mm

The temperature calibration（optional）

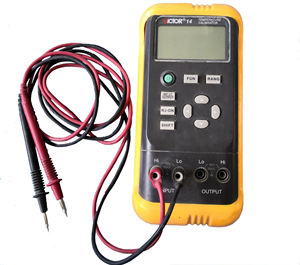

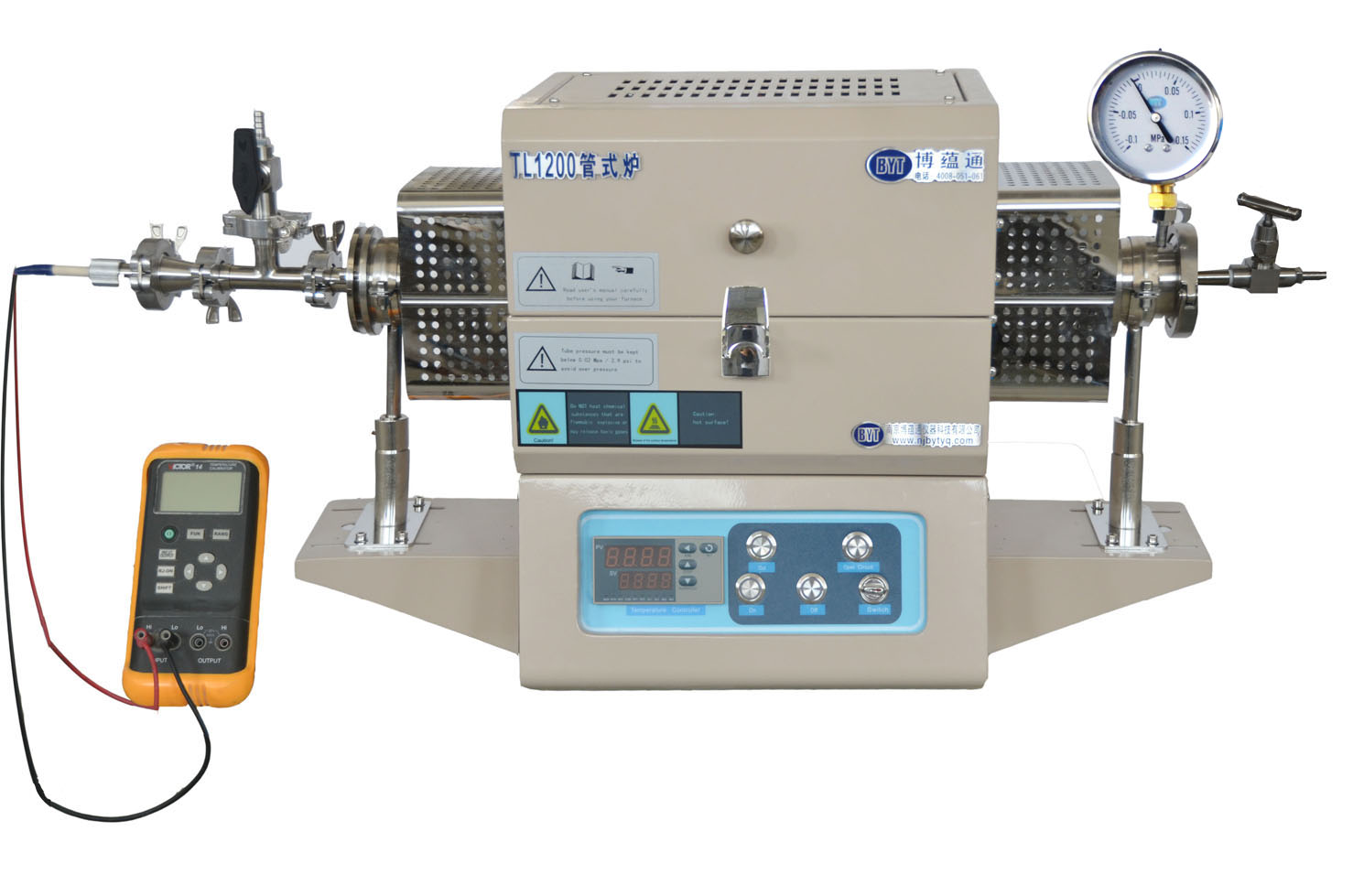

Regular temperature calibration of tube furnace can keep the accuracy and uniformity of furnace temperature. You can choose a simple calibration tool to assist you in this task. The complete calibration kit includes a standard thermocouple, a temperature calibrator, and a compensation conductor

Vacuum system

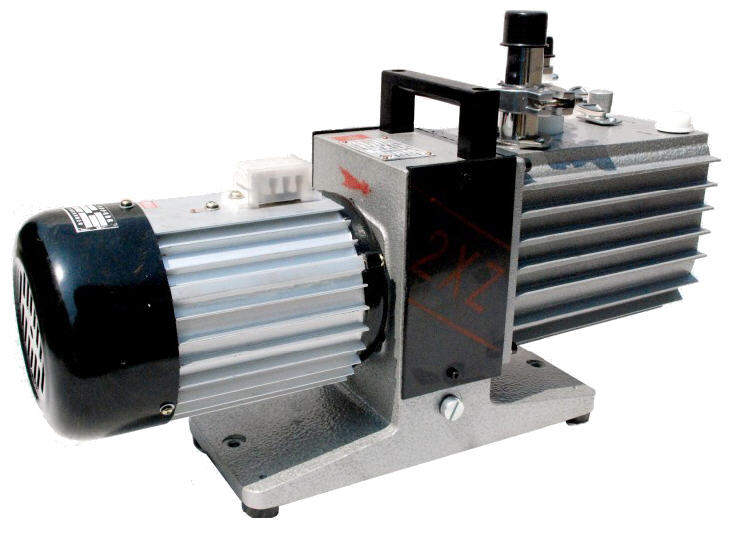

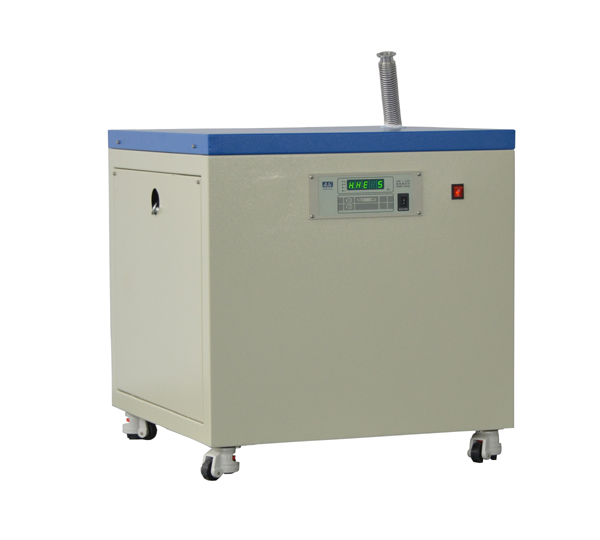

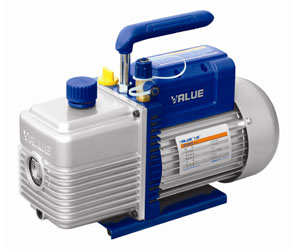

   1、Single-stage pump TW-1.5A 2、Double pump 2 xz - 2  3、Vs-0.1 vacuum system

   4、VS high vacuum system 5、Constant pressure pump   6、UK PCG550 (INFICON) capacitive vacuum gauge

1. Generally, the tw-1.5a single-stage pump is used to roughly vacuum and drive the gas out of the furnace tube.

2. Two-stage pump 2XZ-2 vacuum pump can pump the vacuum of tubular furnace tube to about 10Pa.

3. Vs-0.1 vacuum system can pump the vacuum degree of tube furnace to 0.1Pa (with resistance vacuum gauge display).

4. VS high vacuum system (the system is composed of molecular and mechanical pump) can pump the vacuum degree in the tube furnace to 10-3 Pa.

5. Constant pressure pump (the system can control the pressure in the tube at -100.0kPa ~ 100.0kpa).

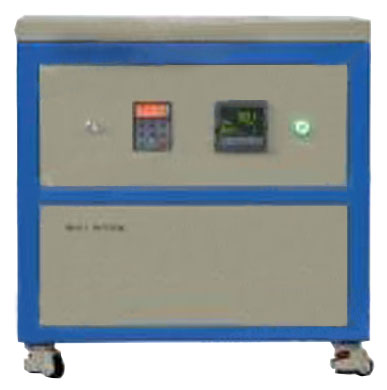

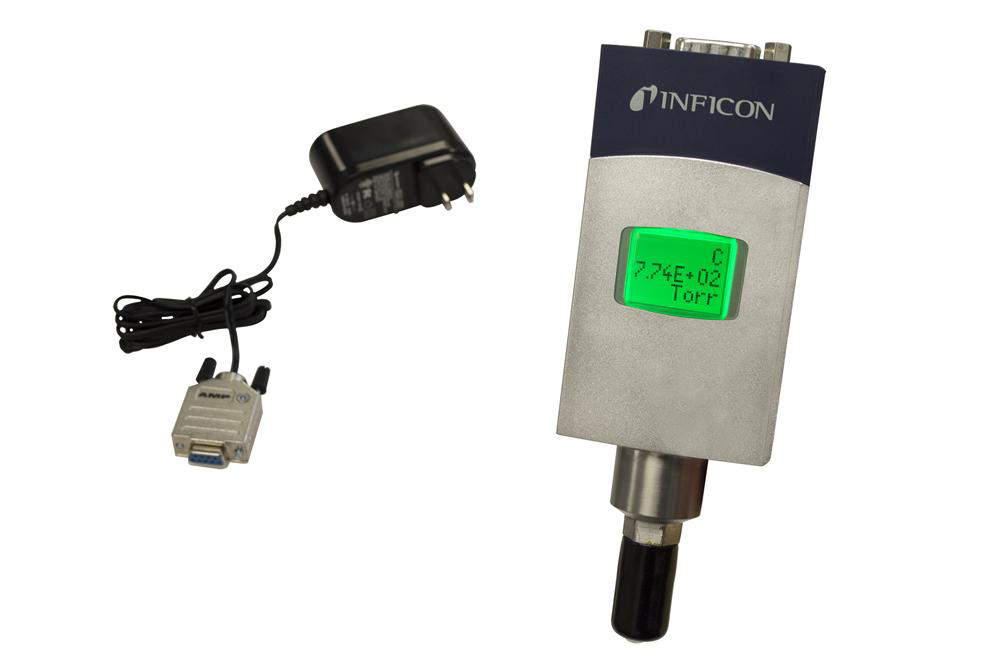

6. British (INFICON) capacitive vacuum gauge (measuring range: 3.8 x10-5-1125 Torr, can detect all kinds of gases, including mixed gases, accurate measurement, good repeatability, optional anti-corrosion type PCG554)

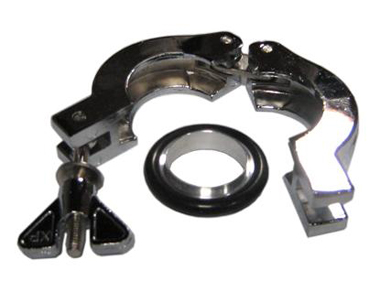

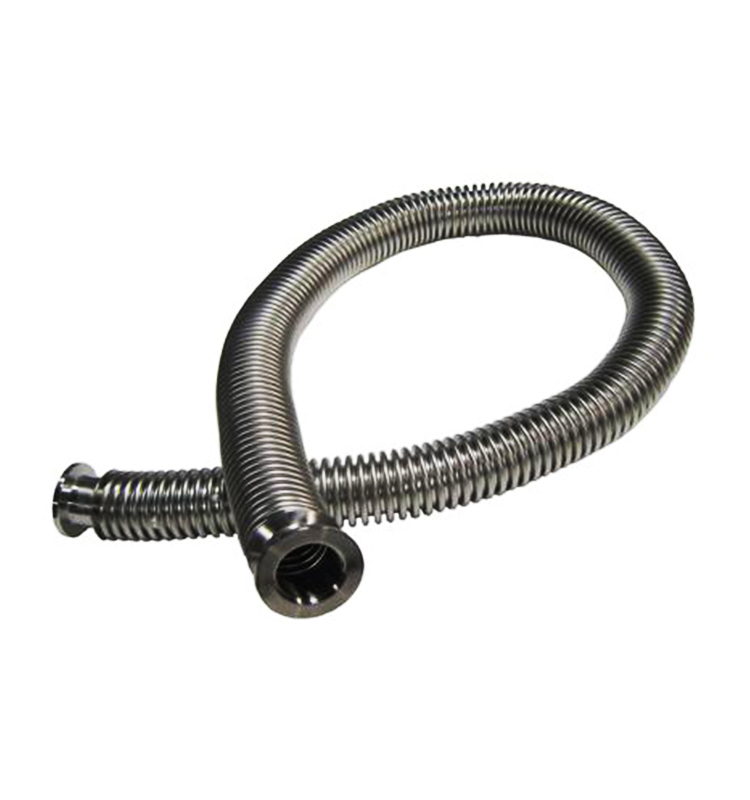

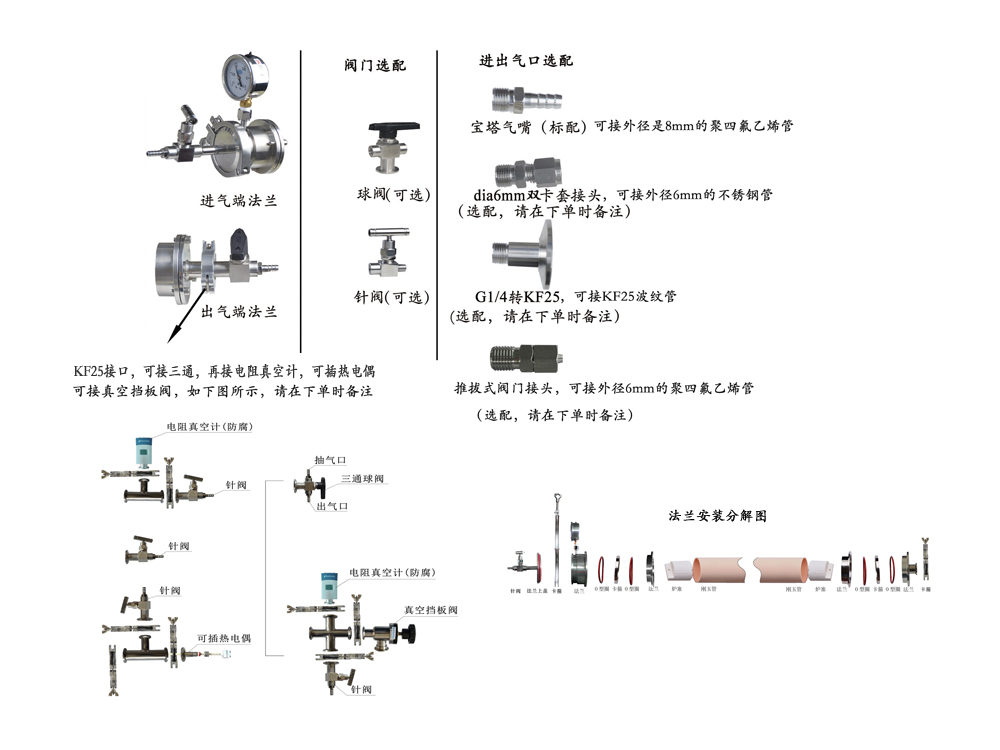

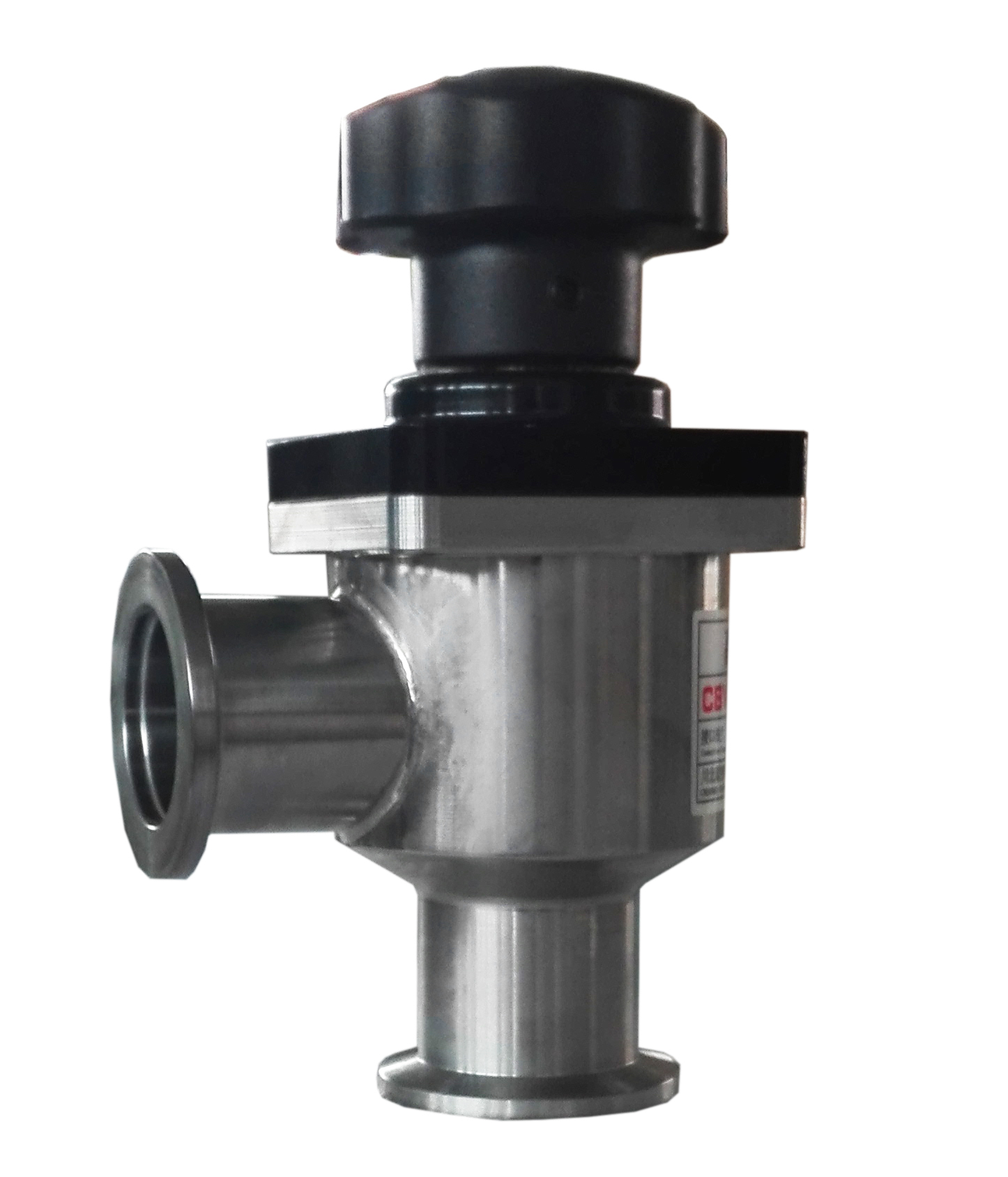

Valve and flange

Compliance

 CE

Ambient surface temperature

≤45℃
