Technical Specifications for 1746-IO12DC
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Backplane Current
|
60-80 milliamps
|
|
Part Number/Catalog No.
|
1746-IO12DC
|
Voltage Range
|
10-30 Volts DC
|
|
Module Type
|
Digital I/O Module
|
Power Dissipation
|
6.05 Watts
|
|
Manufacture Year
|
2022
|
Output Current
|
0.5mA
|
|
Product Package
|
Original Package
|
UPC
|
10262258092910
|

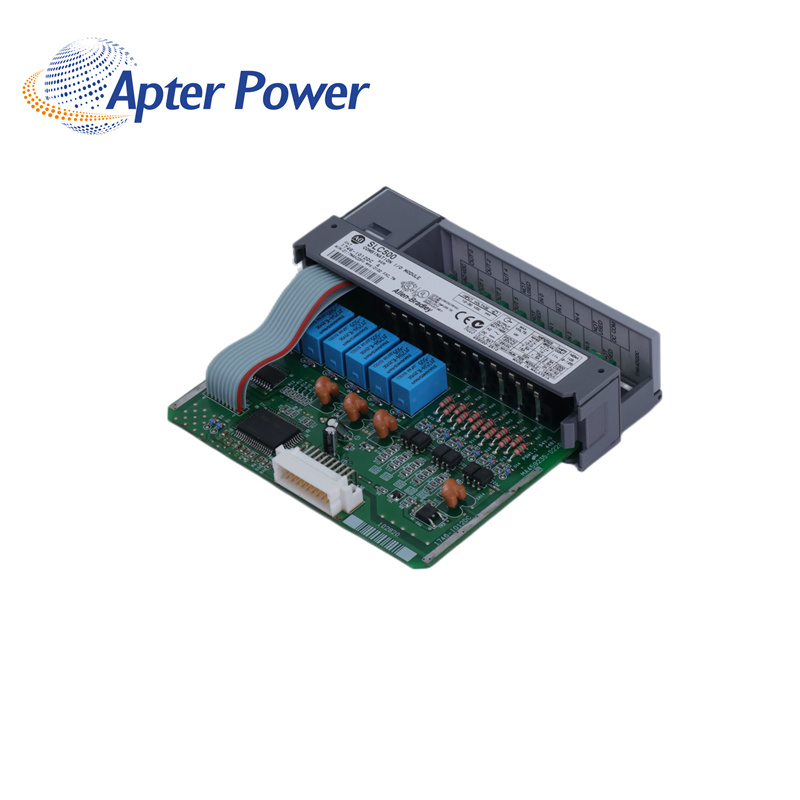

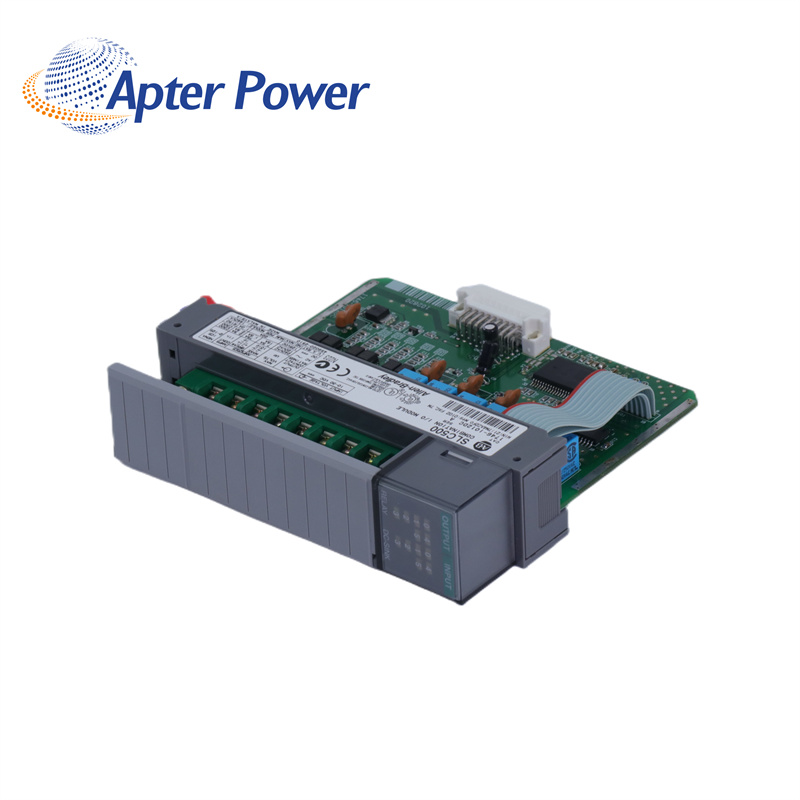

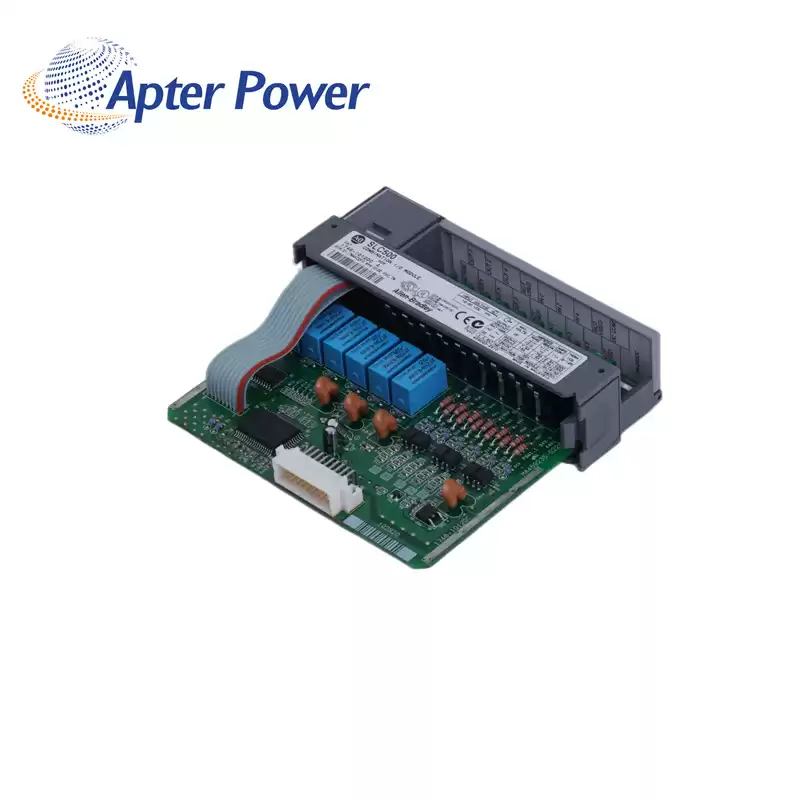

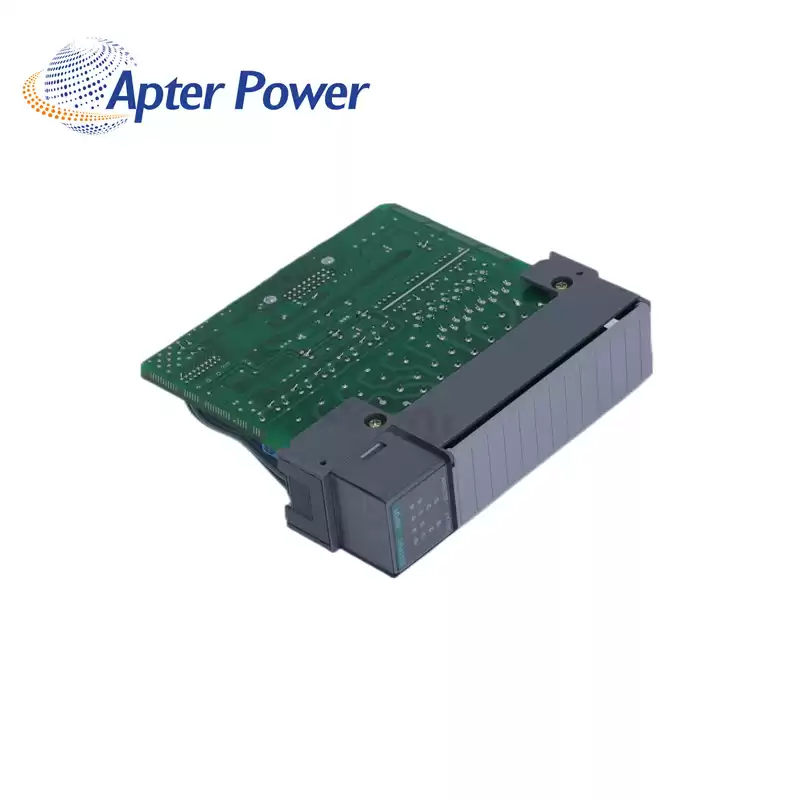

About 1746-IO12DC
|
The 1746-IO12DC uses a Normally-Open contact and the maximum current on each point is 1.5 Ampere at 120V AC and 1.2A at 24V DC. It has 1.84W power dissipation on each output point and the entire module dissipates 3.9W of heat. It has a working temperature bracket between 0 and 60 °C (32 and 140 °F) with 5-95% humidity and has a non-functional temperature range of -40-85 °C (-40-185 °F).
The 1746-IO12DC SLC 500 Digital I/O Combination Module by is an input/output combination module with six 24V DC inputs and six 100-120V AC relay contact outputs and is located on any slots of the SLC 500 chassis except the 0 chassis.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
