1746-OX8
|
|
Dimensions ：
|
12.7cmx5cmx15.2cm
|
Weight：
|
0.4KG
|
|

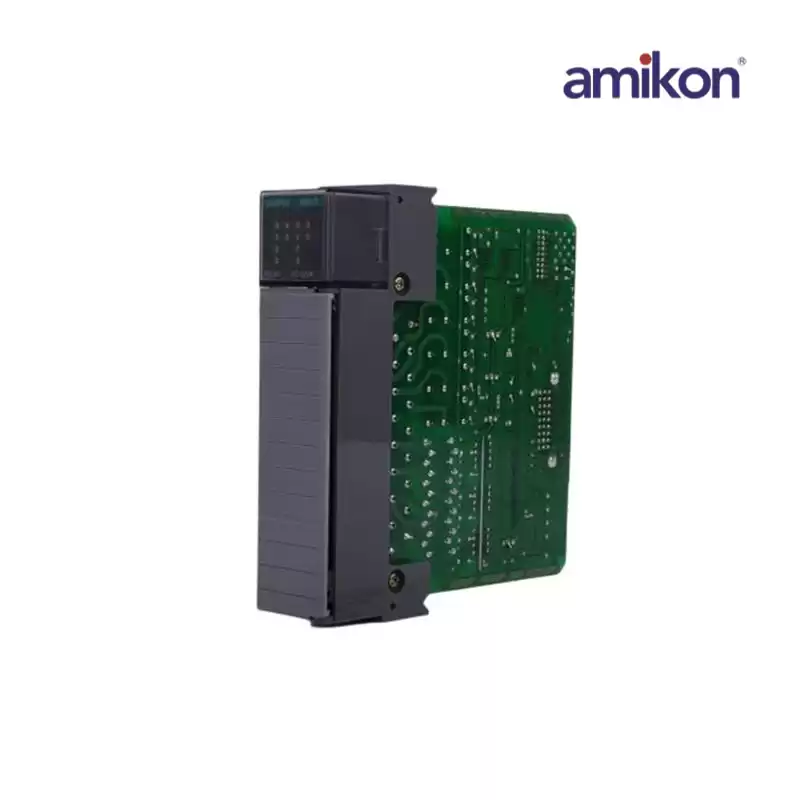

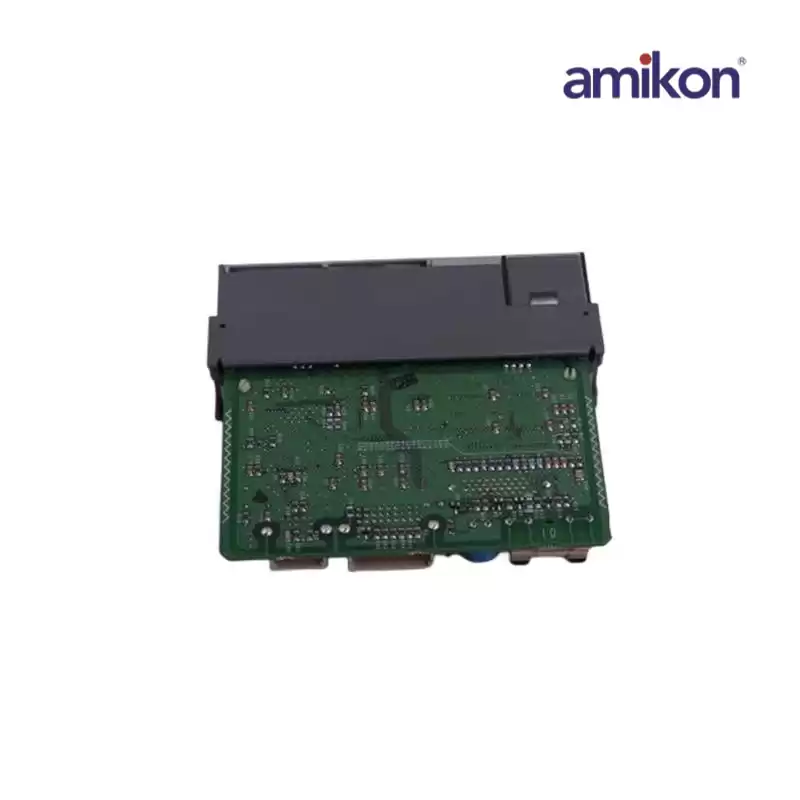

The 1746-OX8 is an SLC 500 digital I/O module. This output module comes with 8 high-current relay contact outputs that are individually-isolated.
It is also an N.O. relay output module with relay contact ratings with a maximum of 30 A each for make and break at 120 Volts AC and a maximum of 15 A make and 1.5 A break at 240V AC. At a continuous 5 A for both AC voltages, the module has a make of 3600 VA and a break of 360 VA. For DC voltages, the maximum make and break are 0.22 A each at 125 Volt DC and both 1.2 A each at 24 Volt DC.
|
|
