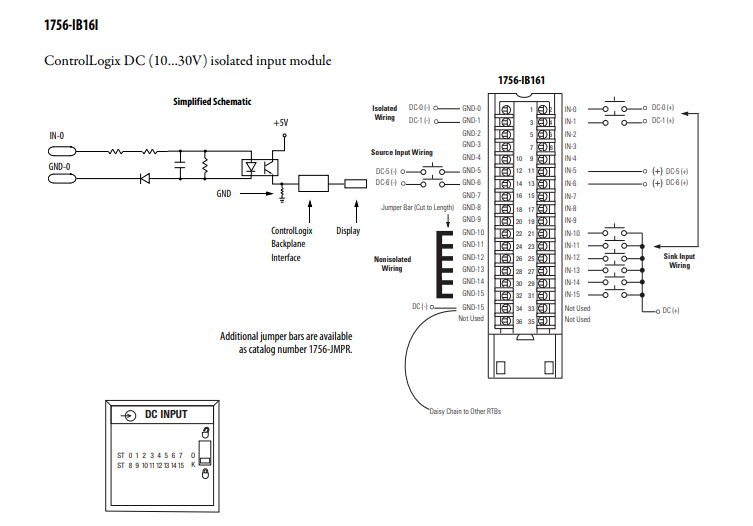

The Allen-Bradley 1756-IB16I is a ControlLogix Digital I/O Module compatible with the 1756 ControlLogix chassis. It is a module that has 16 individually isolated inputs and requires either a 1756-TBS6H or 1756-TBCH removable terminal block housing (RTB). Using the RSLogix 5000 software, users can configure a Change of State and Input Filter Times.
The 1756-IB16I's voltage category is 12/24V DC sink/source, with an operating voltage range of 10 to 30V DC. This module has a nominal input voltage of 24V DC, a maximum power dissipation of 5 W at 60 Degrees Celsius, and a thermal dissipation of 17.05 BTU/hour. At 5.1V, it has a current draw of 100 mA and 3 mA at 24V.
It also has a maximum inrush current of 250 mA peak (decaying to <37% in 22 ms, without activation). During an off-state, the maximum current is 1.5 mA and the maximum voltage is 5V. The module's current during on-state ranges from 2 mA at 10V DC to 10 mA at 30V DC. The current draw of this module at 5.1V is 100 mA and at 24V, it is 3 mA.
|
Attribute
|
|
1756-IB16I
|
|
|
|
|
|
Inputs
|
|
16 individually isolated
|
|
|
|
|
|
Voltage category
|
|
12/24V DC sink/source
|
|
|
|
|
|
Operating voltage range
|
|
10…30V DC
|
|
|
|
|
|
Input voltage, nom
|
|
24V DC
|
|
|
|
|
|
Input delay time (screw to backplane)
|
|
|
|
Off to On
|
|
Hardware delay: 1 ms max + filter time
|
|
|
|
User-selectable filter time: 0 ms, 1 ms, or 2 ms
|
|
On to Off
|
|
Hardware delay: 4 ms max + filter time
|
|
|
|
User-selectable filter time: 0 ms, 1 ms, 2 ms, 9 ms, or 18 ms
|
|
|
|
|
|
Current draw @ 5.1V
|
|
100 mA
|
|
|
|
|
|
Current draw @ 24V
|
|
3 mA
|
|
|
|
|
|
Total backplane power
|
|
0.58 W
|
Allen Bradley 1756-IB16I
1756-IB16I | Allen Bradley | ControlLogix Digital DC Isolated Input Module
Email:sales3@amikon.cn
Part Number:
|
1756-IB16I
|
|
Series:
|
ControlLogix
|
|
Module Type:
|
Digital DC Isolated Input Module
|
|
Inputs:
|
16 Individually Isolated Inputs
|
|
Input Voltage:
|
12-24 Volts DC Sink-Source
|
