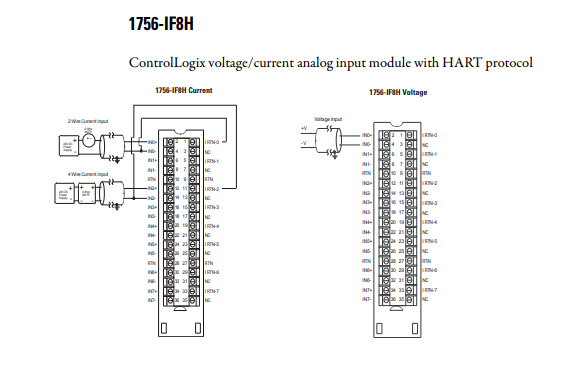

The Allen-Bradley 1756-IF8H is a HART Analog Module belongs to the ControlLogix system. It requires a 36-position spring clamp RTB, or removable terminal block housing, and it can either be the 1756-TBCH or 1756-TBS6H and is compatible with the HART 5, 6, and 7. 8 differential voltage or current inputs are available for this module, with one HART modem per module.
This 1756-IF8H input module receives signals from process value transmitters and then converts them to the corresponding measurement values for use in the Logix controller. The 1756-IF8H has three data formats for you to choose from using the Studio 5000 Logix Designer: analog only, analog and HART PV, and analog and HART by channel. If you want the members of the tag to be arranged like those of non-HART analog input modules, you should choose the analog and HART PV format.
Analog values are grouped together near the end of the tag, making it easier to view all 8 analog values at the same time. But if you want the Status, Analog Value, and Device Status for every channel to be grouped together in a tag, you should choose the analog and HART by channel format. This will make it easier for you to view all data related to a field device.
Backplane voltage and current ratings are 5.1 Volts DC, 300 milliamps, 24 Volts DC, and 135 milliamps and its total backplane power is 4.77 Watts. Voltage power dissipation is 3.21 Watts and 4.01 Watts for the current and it also has a maximum overvoltage protection of 30 Volts DC (voltage) and 8 Volts DC (current).
|
Attribute
|
|
1756-IF8H
|
|
|
|
|
|
Inputs
|
|
8 differential voltage or current
|
|
|
|
|
|
Input range
|
|
±10V
|
|
|
|
0...5V
|
|
|
|
1…5V
|
|
|
|
0...10V
|
|
|
|
0…20 mA
|
|
|
|
4…20 mA
|
|
|
|
|
|
Resolution
|
|
16…21 bits
|
|
|
|
|
|
Current draw @ 5V
|
|
300 mA
|
|
|
|
|
|
Current draw @ 24V
|
|
70 mA
|
|
|
|
|
|
Power dissipation, max
|
|
Voltage: 3.21 W
|
|
|
|
Current: 4.01 W
|
|
|
|
|
|
Thermal dissipation
|
|
Voltage: 11.0 BTU/hr
|
|
|
|
Current: 13.7 BTU/hr
|
Allen Bradley 1756-IF8H
1756-IF8H | Allen Bradley | Analog Input Module
Email:sales3@amikon.cn
Part Number:
|
1756-IF8H
|
|
Series:
|
ControlLogix
|
|
Module Type:
|
Hart Analog Input Module
|
|
Channels:
|
8 Differential
|
|
Backplane Current (5.1 Volts DC):
|
300 milliamps
|
