The Allen-Bradley 1756-L62 is a ControlLogix controller. It contains a user memory of 4 MB and an I/O memory of 478 kb. An optional nonvolatile memory storage is available for this controller. If you want to use nonvolatile memory, you can only use the 128 MB CompactFlash 1784-CF128 that is sold separately. The controller is only compatible with certain 1756 chassis, namely 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17. The 1756-L62 has two types, Series A and Series B.

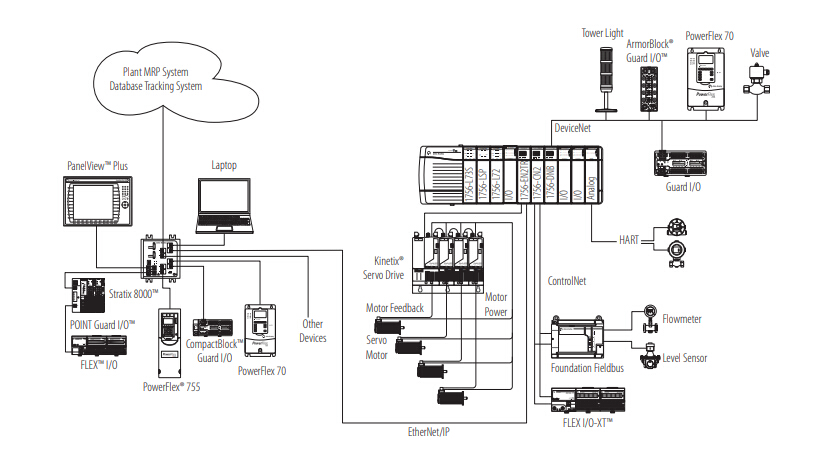

The 1756-L62 has three main controller tasks, particularly 100 programs per task, 32 tasks, and event tasks: all triggers. It also has an RS-132 serial port built in and can make use of several communicating options. These communication options available are Remote I/O, ControlNet, SynchLink, EtherNet/IP, Third-party process and device networks, Data Highway Plus, and DeviceNet. Serial port communications include DH-485, DF1 radio modem, DF1 full/half-duplex, Modbus via logic, and ASCII. It can support a maximum of 250 controller connections and also offers full support to controller redundancy.
This controller has a maximum total I/O of 128,000, a maximum analog I/O of 4000, and a maximum digital I/O of 128,000. It has a current draw of 14 mA at 24V DC and 1200 mA at 5.1V DC. It has an isolation voltage of 30V (continuous) has been type tested at 720V DC for 60s. The 1756-L62 has a thermal dissipation of 11.9 BTU/hr and a power dissipation of 3.5 W. Its storage temperature ranges from -40 to 85 Degrees Celsius and its operating temperature is from 0 to 60 Degrees Celsius.
|
Attribute
|
|
1756-L62
|
|
|
|
|
|
User memory
|
|
4 MB
|
|
|
|
|
|
I/O memory
|
|
478 KB
|
|
|
|
|
|
Optional nonvolatile memory storage
|
|
128 MB (1784-CF128)
|
|
|
|
|
|
Digital I/O, max
|
|
128,000
|
|
|
|
|
|
Analog I/O, max
|
|
4000
|
|
|
|
|
|
Total I/O, max
|
|
128,000
|
|
|
|
|
|
Replacement battery
|
|
Series A: 1756-BA1, 1756-BATM, 1756-BATA
|
|
|
|
Series B: 1756-BA2
|
|
|
|
|
|
Current draw @ 5.1V DC
|
|
1200 mA
|
|
|
|
|
|
Current draw @ 24V DC
|
|
14 mA
|
|
|
|
|
|
Power dissipation
|
|
3.5 W
|
Allen Bradley 1756-L62
1756-L62 | Allen-Bradley | ControlLogix System
Email:sales3@amikon.cn
Part Number:
|
1756-L62
|
|
Series:
|
ControlLogix
|
|
Module Type:
|
Processor Module
|
|
Fixed Memory:
|
2, 4, or 8 MB
|
|
Nonvolatile Memory:
|
See Compact Flash Card 1784-CF64
|
