The Allen-Bradley / Rockwell Automation 1756-OA16 is a 120/240V AC digital output
module. It houses 16 mechanically fused/group outputs (8 points/group). Operating
voltage range for 1756OA16 is 74...265V AC. Removable terminal block houses 1756-
TBNH and 1756-TBSH.
|
|
|
1756-OA16
|
|
|
|
|
|
Outputs
|
|
16 mechanically fused/group (8 points/group)
|
|
|
|
|
|
Pilot duty
|
|
0.5 A
|
|
|
|
|
|
Voltage category
|
|
120/240V AC 50/60 Hz
|
|
|
|
|
|
Operating voltage range
|
|
74…265V AC
|
|
|
|
47…63 Hz
|
|
|
|
|
|
Current draw @ 5.1V
|
|
400 mA
|
|
|
|
|
|
Current draw @ 24V
|
|
2 mA
|
|
|
|
|
|
Total backplane power
|
|
2.1 W
|
|
|
|
|
|
Load current, min
|
|
10 mA per point
|
|
|
|
|
|
Isolation voltage
|
|
250V (continuous), basic insulation type, outputs-to-backplane, and output group-to-group
|
|
|
|
No isolation between individual group outputs
|
|
|
|
Routine tested @ 1400V AC for 2 s
|
|
|
|
|
|
Module keying
|
|
Electronic, software configurable
|
Allen Bradley 1756-OA16

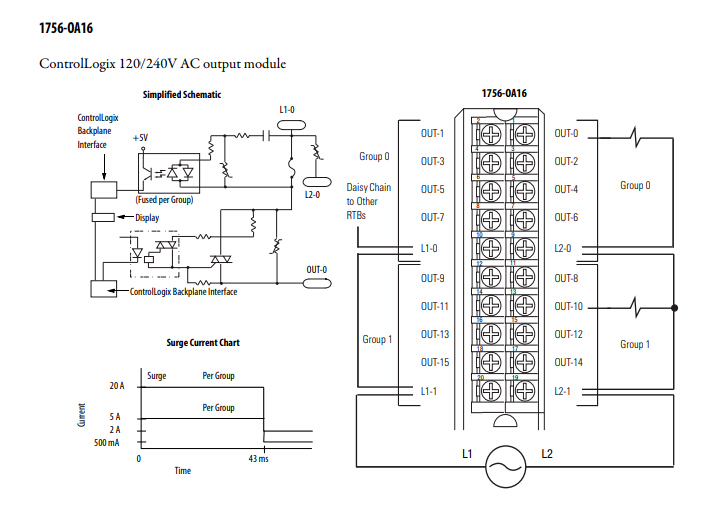

1756-OA16 | Allen Bradley | ControlLogix 120/240V AC output module
Email:sales3@amikon.cn
|
|
|
Inputs/Outputs
|
|
Voltage Category
|
|
Operating Voltage Range
|
|
Removable Terminal Block
|
|
|
|
|
|
|
|
|
|
|
|
1756-OA16
|
|
16 mechanically
|
|
120/240V AC
|
|
74…265V AC
|
|
1756-TBNH 1756- TBSH
|
|
|
|
fused/group
|
|
|
|
|
|
|
|
|
|
outputs (8 points/group)
|
|
|
|
|
|
|
