The ControlLogix® architecture provides a wide range of input and output modules to span
many applications, from high-speed digital to process control. The ControlLogix architecture
uses Producer/Consumer technology, which allows input information and output status to be
shared among multiple ControlLogix controllers.

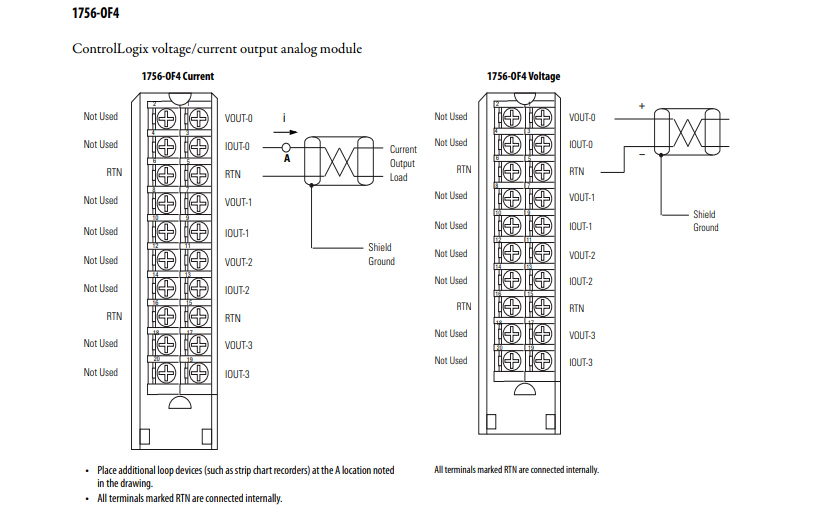

Each ControlLogix I/O module mounts in a ControlLogix chassis and requires either a
removable terminal block (RTB) or a 1492 interface module (IFM) to connect all field-side
wiring. RTBs and IFMs are not included with the I/O modules. They must be ordered
separately
|
Attribute
|
|
1756-OF4
|
|
|
|
|
|
Outputs
|
|
Four voltage or current outputs
|
|
|
|
|
|
Output range
|
|
±10V
|
|
|
|
4…20 mA
|
|
|
|
|
|
Resolution Voltage:
|
|
15 bits across 10.5V, 320 V/bit
|
|
|
|
Current: 15 bits across 21 mA, 650 nA/bit
|
|
|
|
|
|
Voltage and current ratings Backplane:
|
|
5.1V DC, 150 mA max 24V DC, 210 mA max
|
|
|
|
Output voltage: -10…+10V
|
|
|
|
Output current: 4…20 mA
|
|
|
|
|
|
Current draw @ 5.1V
|
|
150 mA
|
|
|
|
|
|
Current draw @ 24V
|
|
120 mA
|
|
|
|
|
|
Total backplane power
|
|
5.8 W
|
|
|
|
|
|
Power consumption
|
|
3.7 W backplane power
|
|
|
|
|
|
Open circuit detection
|
|
Current output only (Output must be set to >0.1 mA)
|
