Manufacturer
|
Allen Bradley
|
|
Part Number
|

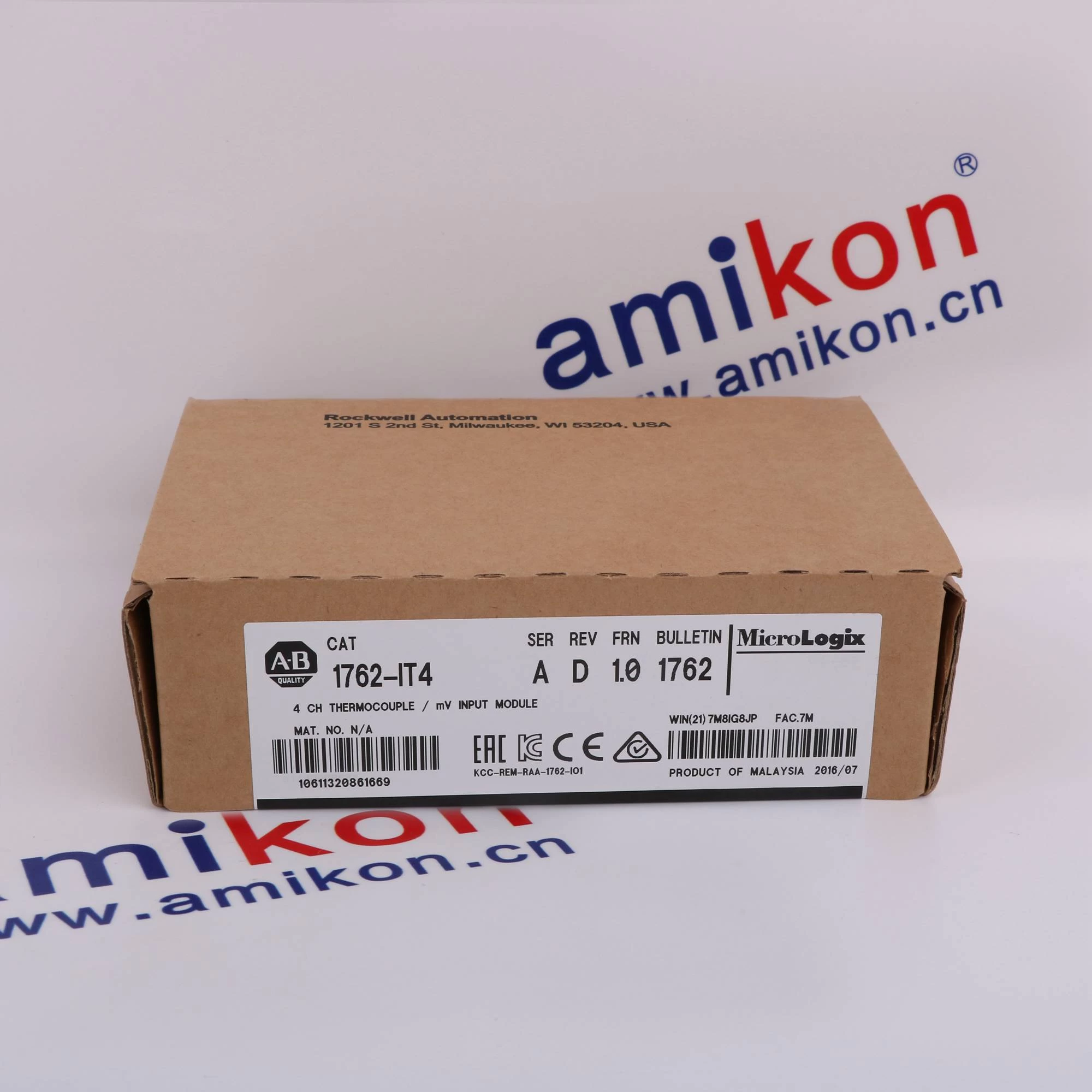

1762-IT4
|
|
Product Type
|
Expansion Input Module
|
|
Product Status
|
IN STOCK
|
|
Country of Origin
|
USA
|
|
Bus Current Draw, max
|
40 mA @ 5V DC
|
|
|
50 mA @ 24V DC
|
|
Number of Channels
|
4 input channels plus a CJC sensor
|
|
Accepted Inputs
|
Thermocouples Types: J, K, T, E, R, S, B, N, C
|
|
|
Millivolt Input Ranges: ±50 mV and ±100 mV
|
|
Filter Frequency
|
10 Hz…1 kHz
|
|
Temperature Units
|
°C or °F
|
|
Accuracy at 25 °C (77 °F)
|
Thermocouple Inputs: ±0.5…±3.0 °C (±0.9…±5.4 °F)
|
|
|
depending on thermocouple type
|
|
|
Millivolt Inputs: ±15…±20 mV
|
|
Accuracy at 0…55 °C (32…131 °F)
|
±0.8…±10 °C (±1.5…±18 °F) depending on thermocouple
|
|
|
type Millivolt Inputs: ±25…±30 mV
|
|
Common Mode Noise Rejection
|
115 dB min @ 50 Hz (with 10 Hz or 50 Hz filter)
|
|
|
115 dB min @ 60 Hz (with 10 Hz or 60 Hz filter)
|
|
Normal Mode Noise Rejection
|
85 dB min @ 50 Hz (with 10 Hz or 50 Hz filter)
|
|
|
85 dB min @ 60 Hz (with 10 Hz or 60 Hz filter)
|
|
Input Group to System Isolation
|
720V DC for 1 minute
|
|
Channel-to-Channel Isolation
|
±10V DC
|
|
|
|
|
|
|
|
|
EMAIL: sales2@amikon.cn (click!)

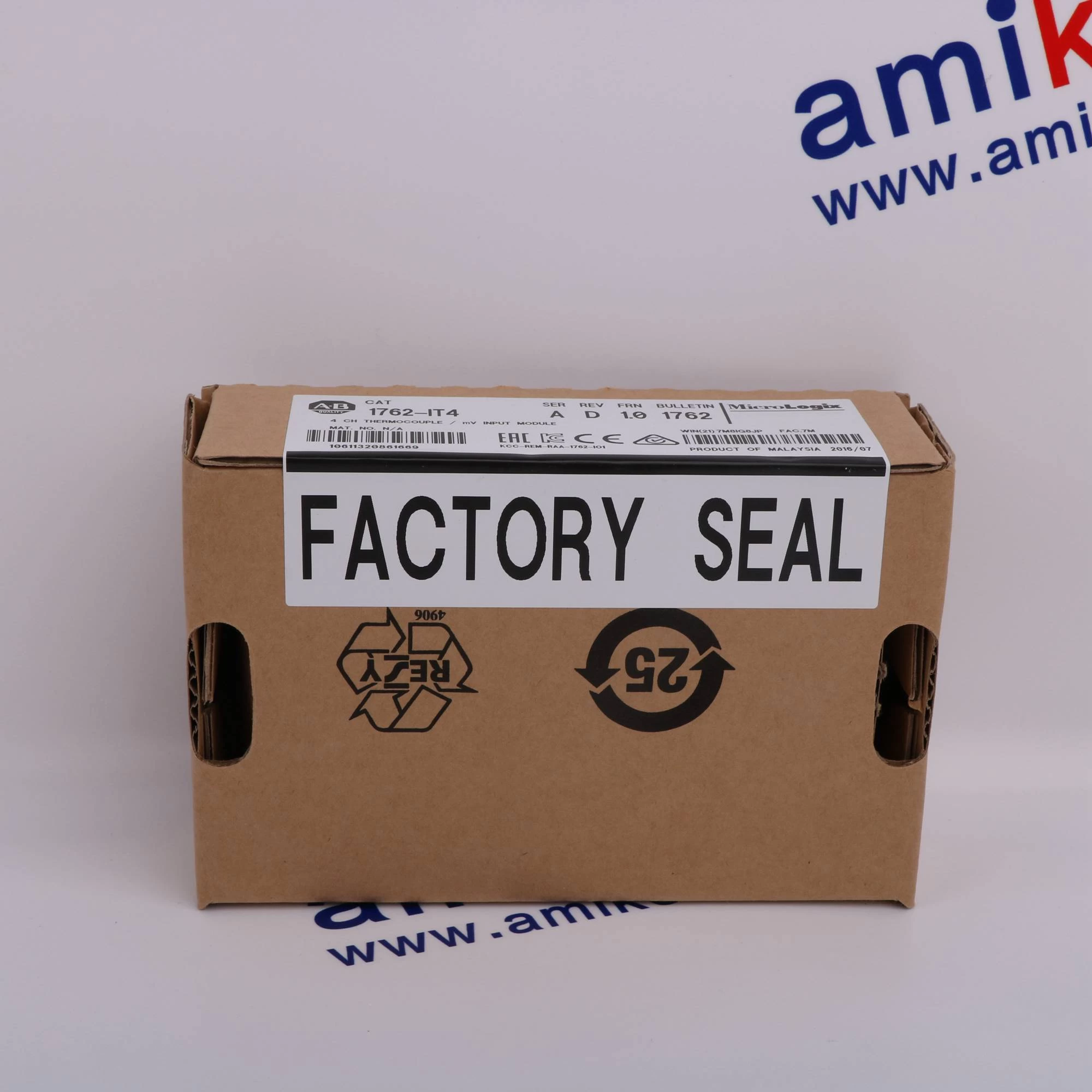

1)100% full New! - Original Factory Seal
2)Warranty: 12 months!
3)Package: Original packing with cartons.
4)Delivery time: Shipped in 3 days after payment
5)Payment: T/T 100% in advance
