Manufacturer Automation
-

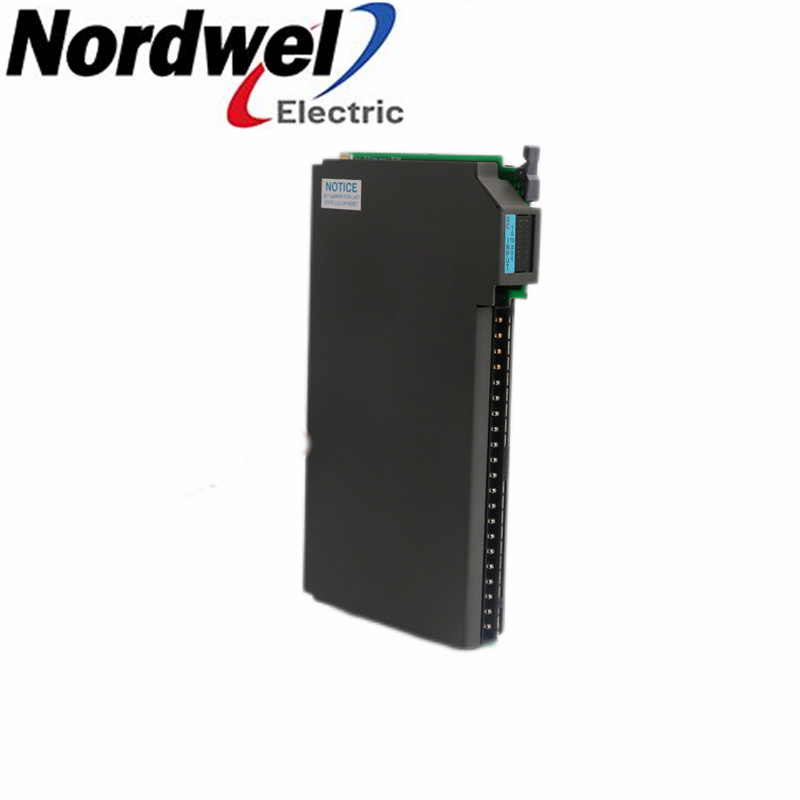

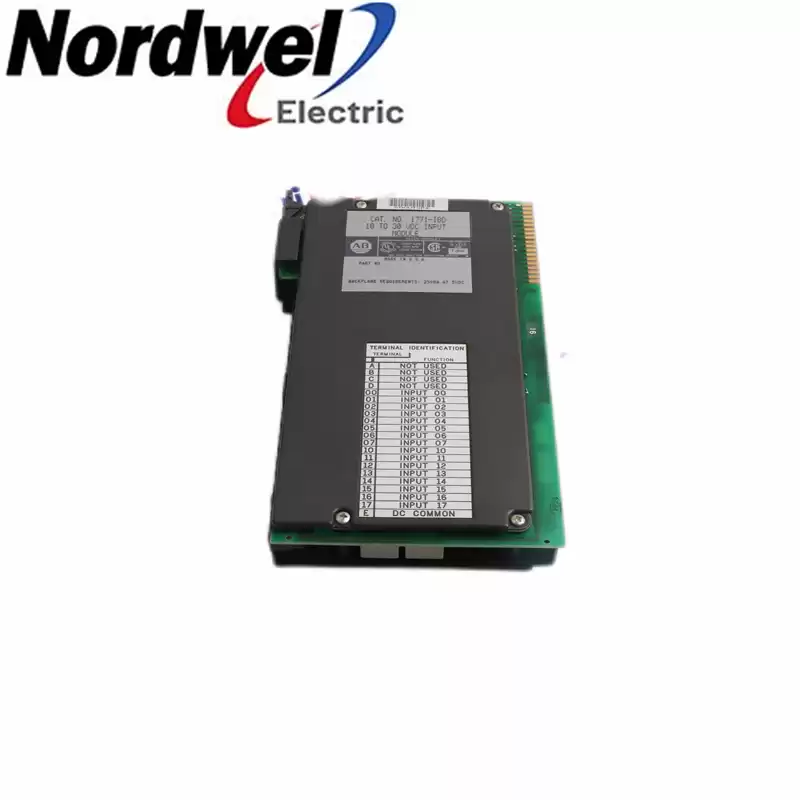

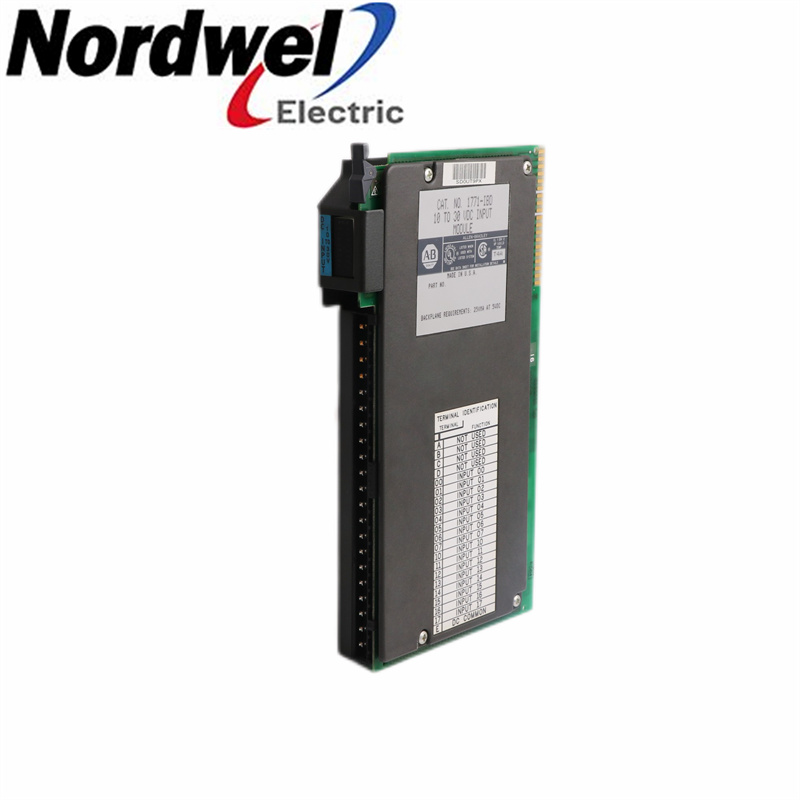

Module Type Digital DC Input Module
-
Part Number/Catalog No. 1771-IBD
-
Brand
-
Series 1771 Product Bulletin
-
No. of Inputs Sixteen (16) Inputs
-
Operating Voltage Range 10 to 30VDC
-
Input Delay Time, OFF to ON 1 ms
-
Input Delay Time, ON to OFF 1 ms or 6 ms
-
Power Dissipation 7.3 Watts (max.), 1.0 Watts (min.)
-
Thermal Dissipation 24.7 BTU/hr (max.), 3.4 BTU/hr (min.)
-
Backplane Current at 24 Volts 130mA @ 5V dc +5%
-
Compatible chassis All 1771 I/O chassis except 1771-A1, -A2, and -A4
-
Keying Between 10 and 12; Between 16 and 18
-
Field Wiring Arm Cat. No. 1771-WH
