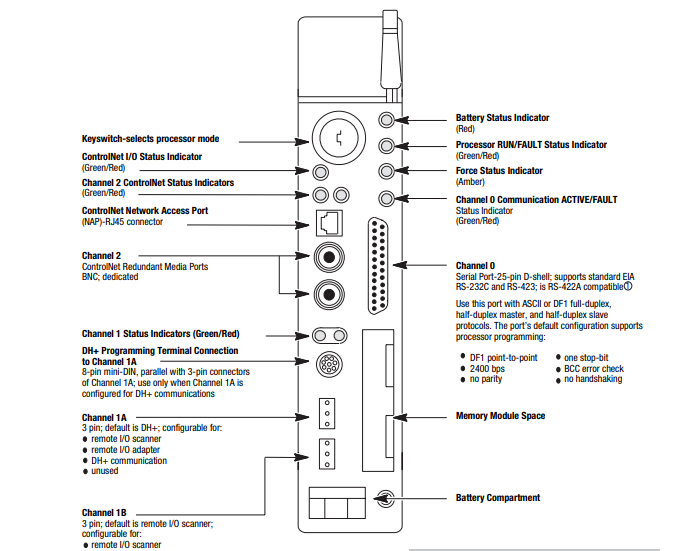

The Allen-Bradley 1785-L80C15 is one version of the ControlNet PLC-5 Programmable Controllers module series. This module comes with a ControlNet Network Access Port (RJ45 connector). This module is equipped with several indicators such as the ControlNet I/O Status Indicator (Green/Red), the Channel 2 ControlNet Status Indicator (Green/Red), the Battery Status Indicator (Red), the Processor RUN/FAULT Status Indicator (Green/Red), the Force Status Indicator (Amber), the Channel 0 Communication ACTIVE/FAULT Status Indicator (Green/Red), and the Channel 1 Status Indicator (Green/Red). This module also comes with a battery compartment for its replaceable battery. Please use only 1770-XYC batteries in the processor. Never use other types of batteries.
This module also comes with several channels. Channel 0 is optically-coupled (it provides high electrical noise immunity) and it can be used for most RS-422A equipment. The 1785-L80C15 has a dedicated ControlNet Redundant Media Ports BNC. The operating temperature of this module is 0-60 °C (32-140 °F). The storage temperature of this module is -40-85 °C (-40-185 °F). The relative humidity of this module is from 5-95% non-condensing.
The Allen-Bradley 1785-L80C15 has an operating shock of 30 g (3 pulses, 11 ms). The nonoperating shock of this module is 50 g (3 pulses, 11 ms). This module has an ESD immunity of 4 kV contact discharges. The weight of this module is around 3 lbs, 2 oz (1.42 kg). The maximum user memory words of this module are 100K. The program scan times of this module are 0.5 ms per K word (bit logic) and 2 ms per K word (typical).
|
Part Number:
|
|
1785-L80C15
|
|
|
|
|
|
Max Analog I/O:
|
|
Forcible 3072 and Nonforcible 50176
|
|
|
|
|
|
I/O Scan Time Per Rack:
|
|
ControlNet I/O 0.5 ms (average); Universal Remote I/O 10 ms
|
|
|
|
at 57.6 kbits/s, 7 ms at 115.2 kbits/s, 3 ms at 230.4 mbits/s
|
|
|
|
|
|
Max I/O Chassis Total:
|
|
125
|
|
|
|
|
|
Max I/O Chassis Extended Local:
|
|
0
|
|
|
|
|
|
Max I/O Chassis Universal Remote:
|
|
60
|
|
|
|
|
|
RS-232-C/422-A/423- A Ports:
|
|
1
|
|
|
|
|
|
Control Coprocessor Expansion Port:
|
|
Yes
|
Allen Bradley 1785-L80C15
1785-L80C15 | Allen Bradley | PLC-5/80C ControlNet PLC-5 Processor
Email:sales3@amikon.cn
Part Number:
|
1785-L80C15
|
|
Module Type:
|
ControlNet PLC-5 Processo
|
|
Processor:
|
PLC-5/80C
|
|
Max User Memory Words:
|
100 Kilowords
|
|
Battery-Backed Static RAM:
|
Yes
|
