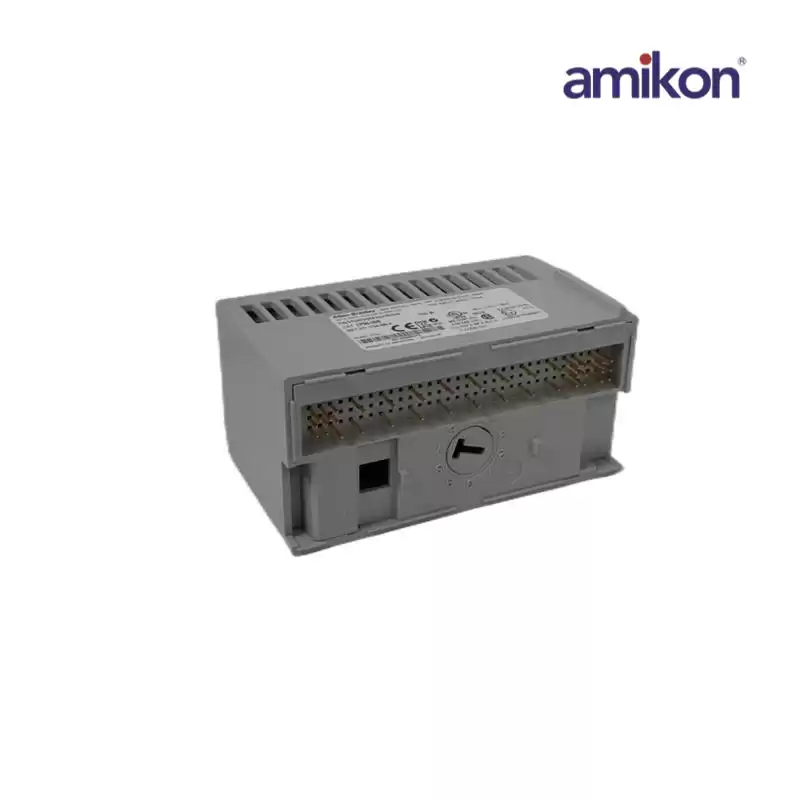

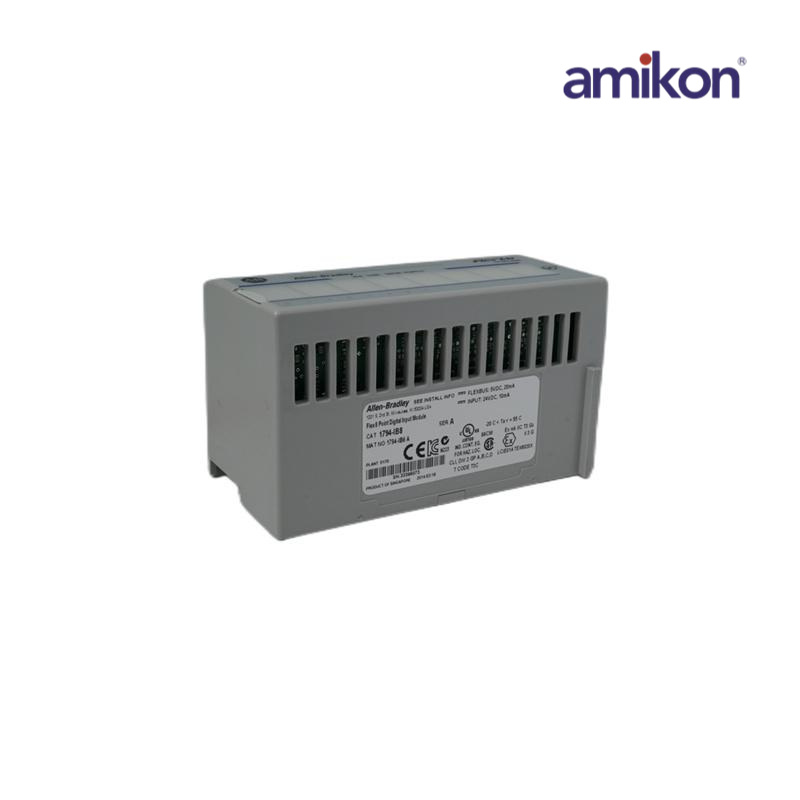

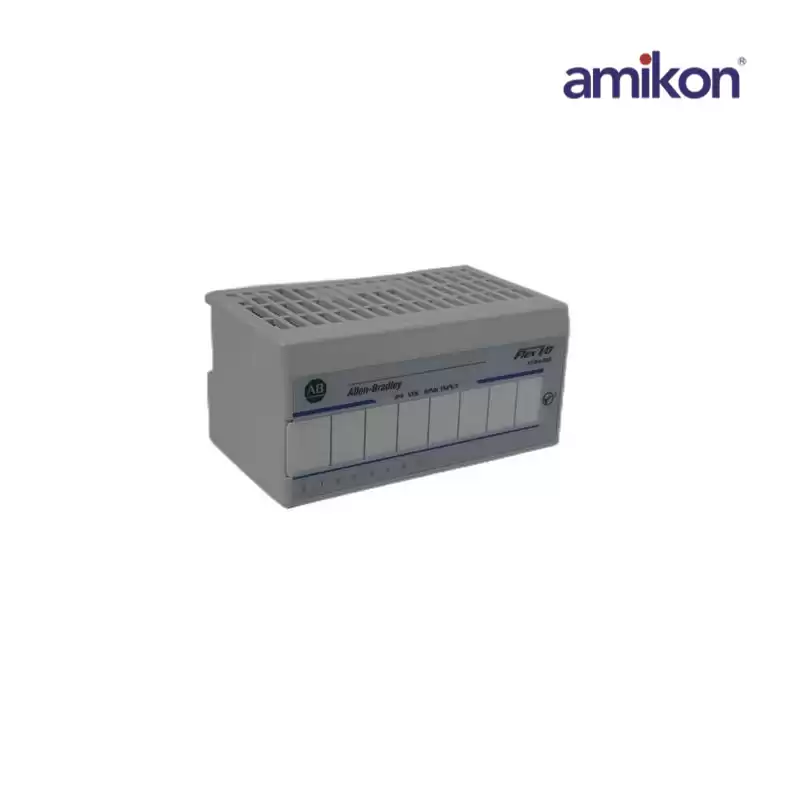

1794-IB8
|
|
Dimensions ：
|
7.6cmx5.1cmx5.1cm
|
Weight：
|
0.1KG
|
|
The 1794-IB8 module has 8 current sinking inputs with 24V DC nominal On-State voltage, 10 – 31.2V DC On-State voltage range, and 1.5mA minimum Off-State current. It has a maximum power dissipation of 3.5W at 31.2V DC. Terminal base units compatible with it are the 1794-TB3 and the 1794-TB3S.
It is installed using a DIN rail. It has various communication options such as ControlNet, DeviceNet, EtherNet/IP, and Universal Remote I/O.The 1794-IB8 is a Flex 1794 Digital DC Input module. It is fitted inside the terminal bus making a connection with the field devices and the I/O bus. Modules can be inserted or removed under power since the I/O module does not have any direct wiring.
|
|
