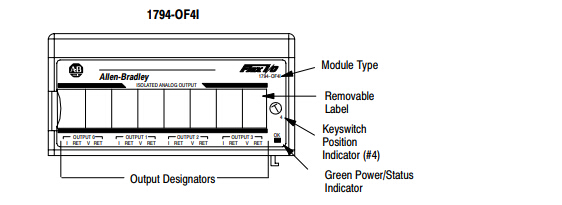

The Allen-Bradley 1794-OF4I is a 24 Volts DC FLEX I/O analog module. It has 4 isolated outputs and 4 key switch positions. These outputs can be connected to devices that use category 2-, 3-, or 4- wires. This module is compatible with several terminal base units, namely the 1794-TBT, 1794-TB3, 1794-TB3TS, 1794-TB3S, 1794-TBNF, and the 1794-TBN. It can be mounted using a DIN rail or a panel, it has an open enclosure, and it measures 3.7 x 2.6 x 3.7 inches
The external DC voltage range of the 1794-OF4I module is 19.2 to 31.2 Volts DC, including the 5% AC ripple. It also has an external DC power supply current of 210 mA at 24 Volts DC. Its maximum overload is 30 Volts or 32 mA continuous in one channel at a time. This module has a maximum 3 mA current load on voltage output and a 0 to 750 Ω resistive load on voltage output. Its output current ranges are 4 to 20 mA and 0 to 20 mA.
Both of these ranges are user-configurable. The module's output voltage varies from +/-10 Volts, +/-5 Volts, 0 to 10 Volts, and 0 to 5 Volts, all of which are also user-configurable. Both the voltage and current terminals have 0 output until the module is configured. The 1794-OF4I has a maximum power dissipation of 4.7 W at 31.2 Volts DC and a maximum thermal dissipation of 16 BTU/hour at 31.2 Volts DC. The module's isolation voltage is dependent on the terminal base unit it is connected to; it is 250 Volts continuous when using a 1794-TBN base unit and 120 Volts continuous when using other compatible base units.
|
Part Number:
|
|
1794-OF4I
|
|
|
|
|
|
Current Load on Voltage Output:
|
|
3mA max.
|
|
|
|
|
|
FlexBus Current:
|
|
50mA
|
|
|
|
|
|
Isolation Voltage:
|
|
120V Continuous
|
|
|
|
|
|
Output Current Terminal:
|
|
4-20mA
|
|
|
|
|
|
Output Voltage Terminal:
|
|
+/- 10V
|
|
|
|
|
|
Thermal Dissipation:
|
|
16 BTU/hr. @ 31.2V DC max.
|
Allen Bradley 1794-OF4I
1794-OF4I | Allen Bradley | I/O Isolated Output Analog Module
Email:sales3@amikon.cn
Part Number:
|
1794-OF4I
|
|
Product Type:
|
Flex I/O Isolated Output Analog Module
|
|
Outputs:
|
4 Isolated
|
|
Conversion Type:
|
Digital-to-Analog Converter
|
|
Update Rate:
|
2.5/5.0 ms
|
