1794-TB3S Allen Bradley Flex I/O Base

Contact: Miya

Job Title: Sales Manager

Skype: live:miyazheng520

Email: sales@amikon.cn

Tel: 86-18020776792(Whats App )

QQ :2851195450

Brand Name                 AB

Product reference     1794-TB3S

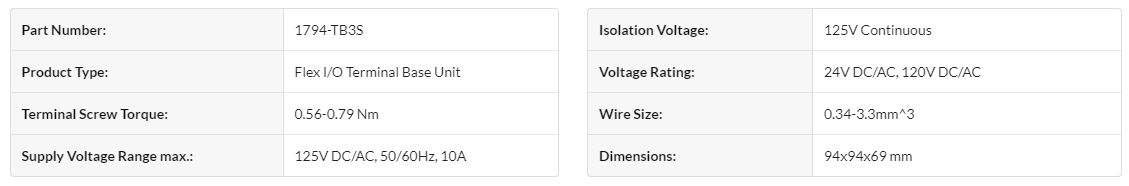

The Allen-Bradley 1794-TB3S Flex I/O Terminal Base Unit has a 0.56-0.79 Nm Terminal Screw Torque, a 125V DC/AC, 50/60Hz, 10A Supply Voltage Range max., and a 125V Continuous Isolation Voltage. It also operates with a 0.34-3.3mm^3 Wire Size and a 94x94x69 mm Dimensions.

The 1794-TB3S Flex I/O Terminal Base Unit by Allen-Bradley is a 16 I/O capacity terminal base unit module with eighteen common terminals and eighteen voltage terminals used in applications with up to 125V AC/DC rating. The module has a current of 10A (max) and provides a Flexbus current of 640mA at 5V DC and a 2A current across the input/output terminals. The 1794-TB3S also provides 125V AC/DC voltage and 10A current at 50-60Hz across the voltage/COM terminals. It can provide 125V isolation voltage between Field-Wiring-to-FLEXBUS employing the Basic Insulation type and it enables I/O termination using the spring clamp termination type.
The 1794-TB3S uses copper wire with 0.34 x 3.3mm2 stranded or solid wire rated at 167 °F and with a 1.2 mm (3/64 in) thick insulation as its base circuit cable and the module has a shipping dimension of 94mm x 94mm x 69mm. Like most terminal base in the Flex I/O series, it is given the T4A (North America) and T4 IEC temperature code for maintaining function at a maximum temperature of 135 0C and it has a factory-defined operational temperature limit between -20 and 70 °C (-4 and 158 °F) at 5-95% non-condensing humidity. It is IEC-tested to functionally resist an operational vibration of 2G at 10-500Hz and it is also tested to operate without de-rating at a shock of 30G. The 1794-TB3S is UL, CSA, CE, and Ex-certified.

Technical specifications:

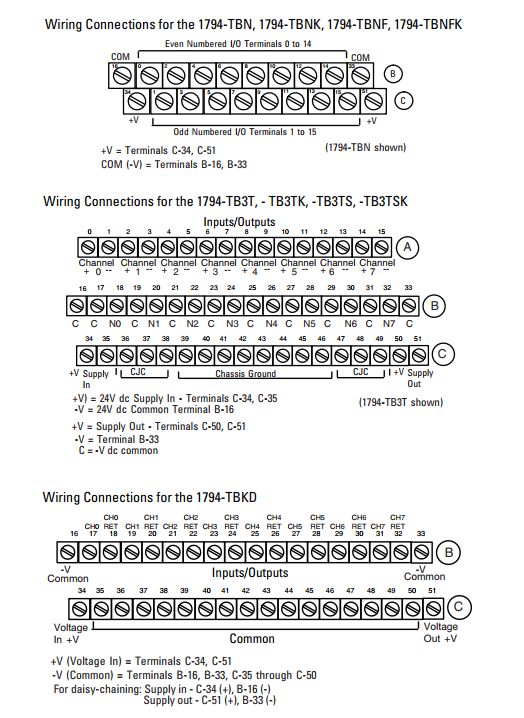

For Spring-clamp Terminal Base Units: 1794-TB3S, -TB3TS, -TB3GS, -TB32S, -TB3SK, -TB3TSK, -TB3GSK ″ Insert a 2.54…3.05 mm (0.10…0.12 in.) wide-bladed screwdriver into the slot and lift up. Insert wire, and remove screwdriver.For Cage-clamp Terminal Base Units: 1794-TB2, -TB3, -TB3K, -TB3T,-TB3TK, -TB3G, -TB3GK, -TB32 ″ Tighten screws to 0.8 Nm (7 lb-in). For Knifeswitch Cage-clamp Terminal Base Unit: 1794-TBKD ″ Tighten screws to 0.53 Nm (6 lb-in). For NEMA Screw-clamp Terminal Base Units: 1794-TBN, -TBNK, -TBNF, -TBNFK ″ Tighten screws to 1.02 Nm (9 lb-in). Install or Change a Fuse in the 1794-TBNF or 1794-TBNFK Terminal Base Unit This terminal base unit has fuse holders for 5x20 mm fuses on each of the eight even-numbered I/O terminals (0 through 14 - row B). To install or change a fuse: 1. Press the fuse holder down toward the terminal strip. 2. Remove the fuse from the fuse holder. 3. Insert a known good 5x20 mm fuse into the fuse holder. 4. Rotate the fuse holder back to vertical until it snaps into the locked position. The 1794-TBNF and 1794-TBNFK terminal base units are shipped with eight 5x20 mm, 1.6 A, 250V AC slow-blow fuses, one for each even-numbered terminal (0 through 14 on row B). These fuses are suitable for use with the 1794-OA8 AC output module. Refer to the specific installation instructions for fusing recommendations for your particular module. Use the Knifeswitch Terminal Base The knifeswitch terminal base has 16 individual mechanical-knifeswitch circuit breakers (two for each channel). Each switch opens or closes one side (input/output and return) for a channel

1. Place a small-bladed screwdriver into the slot of the knifeswitch of the I/O point circuit that you wish to break. 2. Rotate downward to open the circuit. This opens the path of an individual circuit. 3. To reestablish the circuit, rotate the knifeswitch back into the terminal base unit until it snaps into place.
