17LPM 45PSI DC electric Self-priming RV Boating 12V Diaphragm Pressure caravan fresh pump
Product Description
Whaleflo 12V caravan pump FL series is ideal water transfer in caravan,RV,marine, garden,camping,boat, outdoor and with self-priming ability. FL series pump has four diaphragm pump.Whaleflo 12v fresh caravan water pump pressure vary from 17-60PSI, Flow from 10-17LPM.

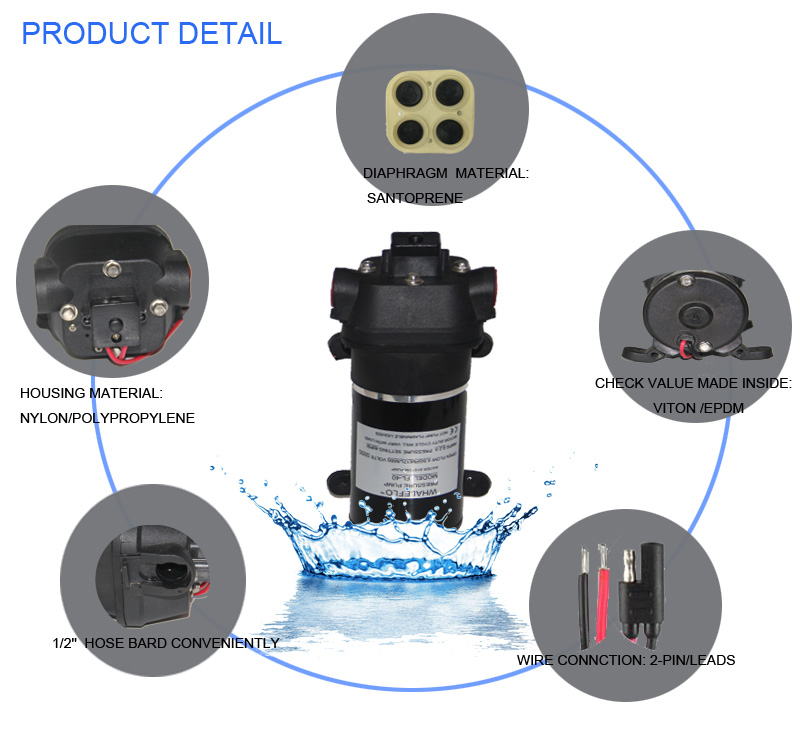

Whaleflo 12v caravan pump chamber material made of Santoprene.The inside check value is EPDM(Ethylene Propylene Diene Monomer) and Viton use widely for liquid PH value vary from 4-11PH value.
DP pump with 1/2’’(12mm) hose barb,3/4’’ male thread and 3/4’’ female thread.
Pump working duty: working intermittent
Performance
High flow, self-priming, Dry run with damage , Low noise, automatic pressure switch,mini and flexible, superior rubber feet with low noise.
Application
caravan,RV,marine, garden,camping,boat, outdoor
Technical Data
|
Model
|
Volt（V)）
|
Open Flow（LPM/GPM）
|
Demand Pressure( PSI/Bar)
|
Amps Draw( A)
|
Check value
|
Diaphragm
|
Ports
|
Wire connection
|
|
FL30
|
12
|
10(2.6)
|
17(1.17)
|
2.2
|
EPDM/VITON
|
Santoprene
|
3/4‘’
|
2-pin/ Leads
|
|
FL31
|
24
|
10(2.6)
|
17(1.17)
|
1.5
|
EPDM/VITON
|
Santoprene
|
3/4‘’
|
2-pin/ Leads
|
|
FL35
|
12
|
12.5(3.3)
|
35(2.41)
|
7
|
EPDM/VITON
|
Santoprene
|
3/4‘’
|
2-pin/ Leads
|
|
FL34
|
24
|
12.5(3.3)
|
35(2.41)
|
4
|
EPDM/VITON
|
Santoprene
|
3/4‘’
|
2-pin/ Leads
|
|
FL60
|
12
|
17(4.5)
|
60(4.13)
|
13.2
|
EPDM/VITON
|
Santoprene
|
3/4''
|
2-pin/Leads
|
|
FL44
|
24
|
17(4.5)
|
40(2.76)
|
5.6
|
EPDM/VITON
|
Santoprene
|
3/4''
|
2-pin/Leads
|
|
FL40
|
12
|
17(4.5)
|
40(2.76)
|
9.2
|
EPDM/VITON
|
Santoprene
|
3/4''
|
2-pin/Leads
|
|
FL33
|
115
|
12.5(3.3)
|
35(2.41)
|
0.8
|
EPDM/VITON
|
Santoprene
|
3/4”
|
2-pin/lLeads
|
|
FL32
|
220
|
12.5(3.3)
|
35(2.41)
|
0.4
|
EPDM/VITON
|
Santoprene
|
3/4''
|
2-pin/Leads
|
|
FL41
|
115
|
17(4.5)
|
40(2.76)
|
1.5
|
EPDM/VITON
|
Santoprene
|
3/4"
|
2-pin/Leads
|
|
FL43
|
220
|
17(4.5)
|
40(2.76)
|
0.8
|
EPDM/VITON
|
Santoprene
|
3/4"
|
2-pin/Leads
|
|
Pump Design
|
4 chamber Daiphragm
|
|
Port size
|
3/4''(19mm) female thread
|
|
Connector
|
1/2'' hose barb , 3/4'' BSPT thread
|
|
Voltage
|
12V, 24V ,115V,230V
|
|
Check value
|
EPDM or VITON
|
|
Liquid temp
|
140F(60C) maximum
|
|
Seld-priming
|
6.5 feet （ 2M）suction Lift
|
