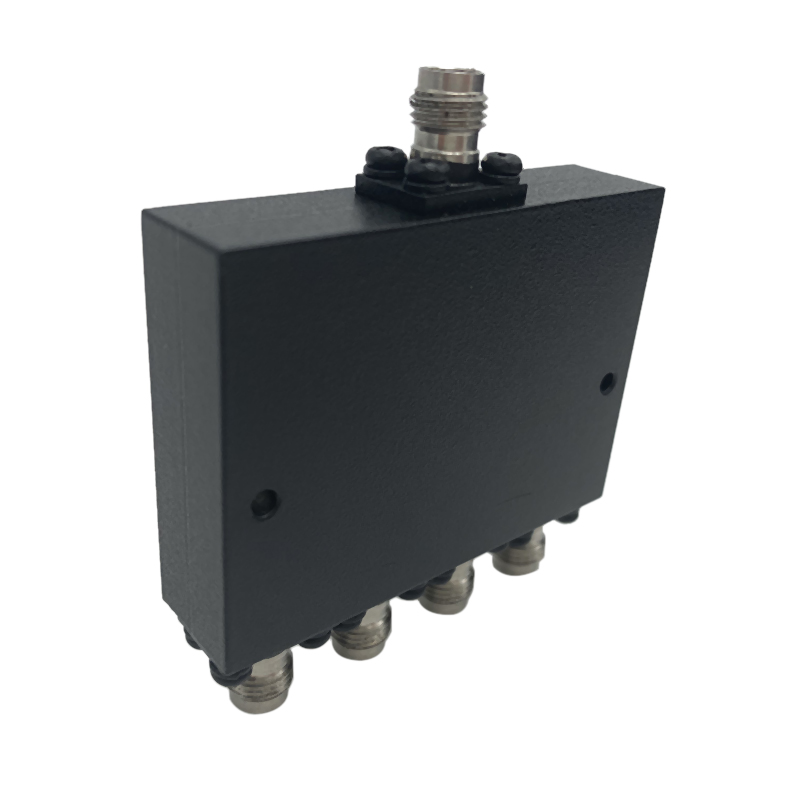

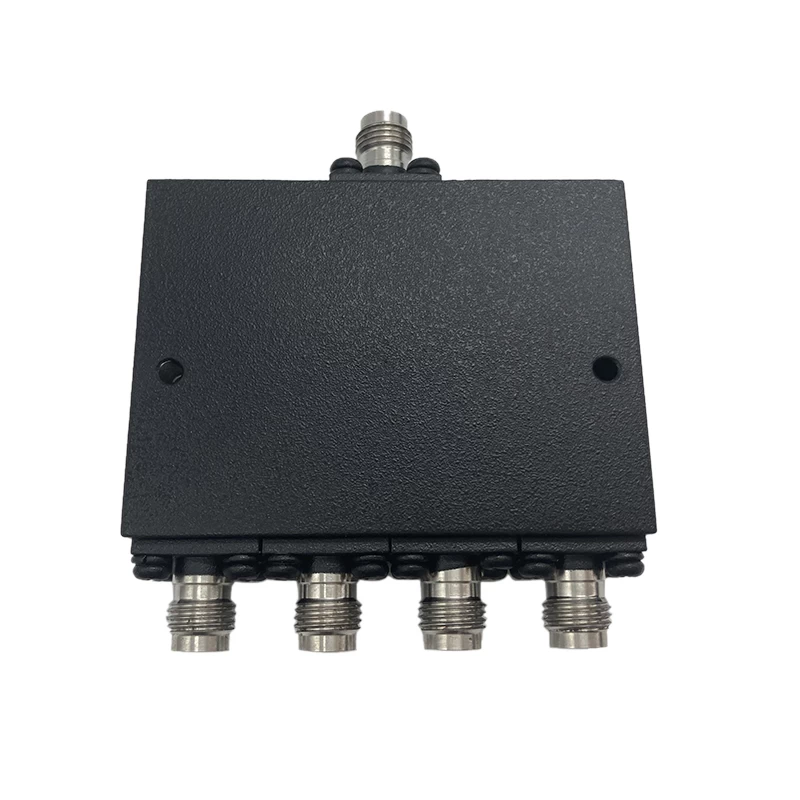

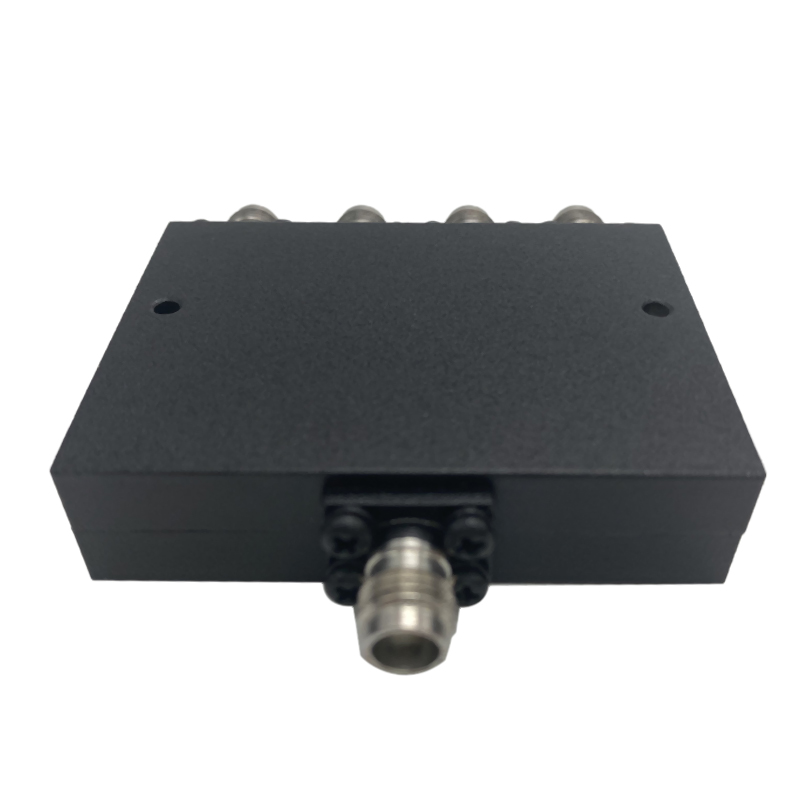

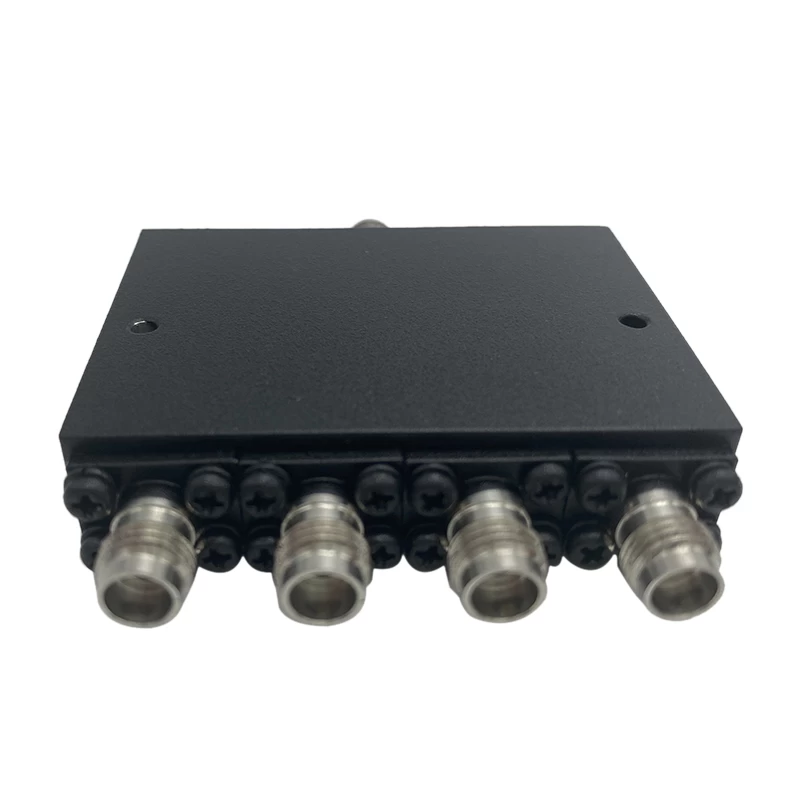

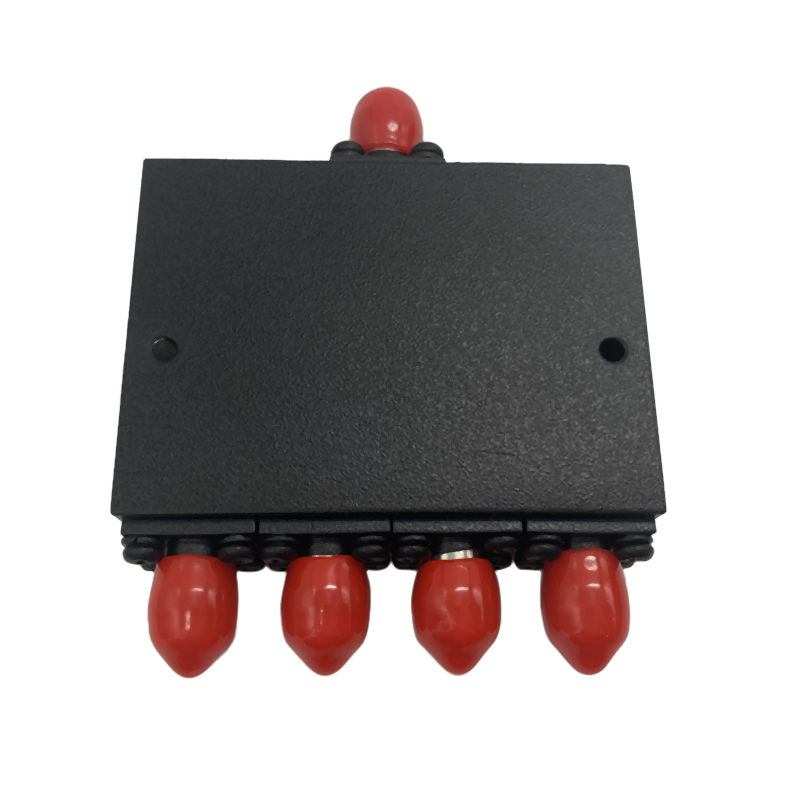

18-50GHz 4Way Wilkinson Power Divider

18-50GHz High Frequency Range 4Way Wilkinson/Microstrip Power Splitter/Divider with SMA-F with High frequency band,it is low insertion loss,low VSWR.



Product Name

4Way Wilkinson/Microstrip Power Splitter/Divider with SMA-F


Frequency range covering from 18GHz to 50GHz


Product Features

◆High Frequency Range of18-50GHz

◆ Low VSWR

◆ Low Insertion Loss

◆ Indoor Application

Widely used for In-building Solutions and high frequency equipements.

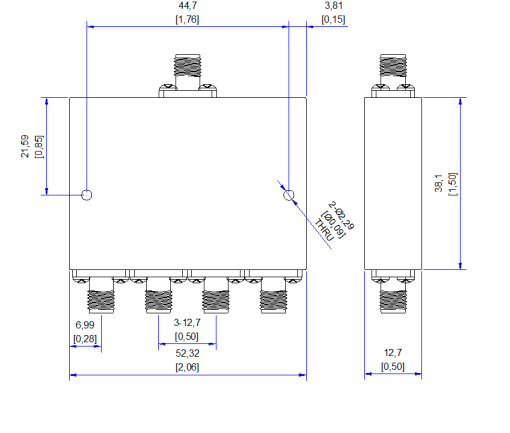

Technical &Mechanical Specifications


Frequency Range (GHz)

18~50

Nominal Impedance (Ohm)

50

VSWR

1.7

IL(dB)

2.6

Isolation (dB)

16

Amplitude Balance (dB)

±0.6

Phase Balance (deg)

±6

Power Handing

15W Avg

Connector Type

5×2.4-Female

Color

Black

Operating Temperature (℃)

-32~+85



OUR SERVICES
1. Professional skills support for 18-50GHz High Frequency Range 4Way Wilkinson/Microstrip Power Splitter/Divider with SMA-F
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
