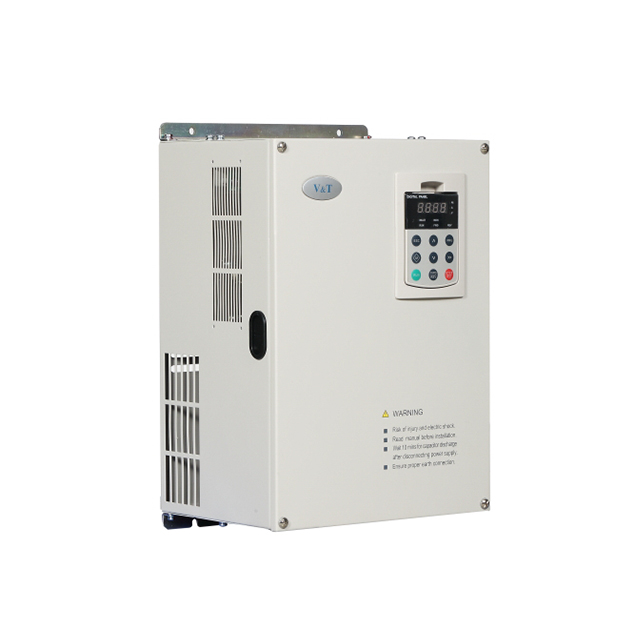

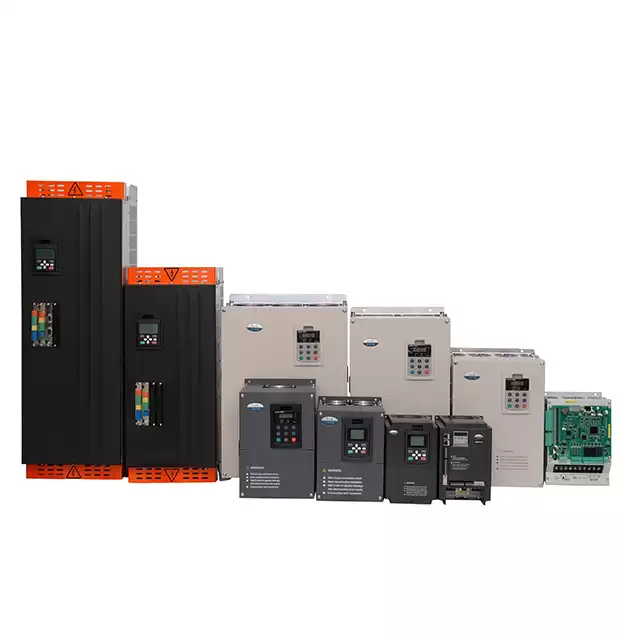

18.5kW-55kW V6 Series High Performance Universal Inverter

As the VFD manufacturer in china, V&T V6-H series is a high performance vector control and torque control inverter.The product adopts close-loop vector control technology and torque control technology which are synchronized with the current international advanced technology, and it has the same excellent control performance with the international high-end frequency drive.


  • Shipping PortShenzhen
  • Place of OriginChina
  • AvailabilityOEM/ODM, Minmum Order Request
  • PackageStandard Export Package Carton/Wood
  • Delivery Time5-7 working days for standard series; 7-14 working days for customized AC drives
  • TransportationExpress · Sea freight · Land freight · Air freight
  • Term of paymentT/T, L/C, D/P
  • Warranty18 Months
  • CustomizedYES
  • Sample freight payerBuyer
  • Sample provideYES
  • CertificationCE, EAC, ISO9001, OHSAS18001, TS16949, SGS

Product Overview

Item Description
Product Name Frequency Inverter/ AC Drive
Model Number V6-H-4TxxG/xxL
Power Range 0.75kW-500kW
Rated Input Voltage 3 phase 380V/480V
Rated Output Voltage 3 phase 0 to rated input voltage
Input Frequency 50Hz/60Hz
Adaptable Motor Asynchronous Motor
Control Mode V/F Control, Vector Control, Sensorless Vector Control, Sensor Vector Control, Vector Torque Control
Communication Modbus 485 RTU
IP Class Standard IP20
Overload Capacity 150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)

Feature

■ Open - loop vector, Closed - loop vector, Open - loop torque, Closed - loop torque control.

■ Inverter operates stably without tripping under any acceleration and deceleration time and any impact load.

■ Real torque control is realized through the independent current loop control, and online switching between torque control and speed control is supported.

■ Independent input and output port of high speed pulse, which can realize high speed pulse cascade function.

■ Accurate speed identification and rotor flux orientation, the torque can also respond quickly and operate stably when a load of 0.25hz breaks.

■ High-precision current detection and protection, high-precision hall to detect output current, realization of fast real-time control and protection of software and hardware, and assurance of performance and reliability of the whole machine.


Model Explanation


Product Catalogue

V6−H−4T□□□G ;Three−phase 400V Constant torque/heavy−duty application

Power (kW) 0.75 1.5 2.2 3.7 5.5 7.5 11 15 18.5 22 30 37 45 55 75
Motor power (kW) 0.75 1.5 2.2 3.7 5.5 7.5 11 15 18.5 22 30 37 45 55 75
Output Voltage (V) Three-phase 0 to rated input voltage
Rated current (A) 2.5 3.8 5.5 9 13 17 24 30 39 45 60 75 91 112 150
Overload capacity 150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag ;feature)
Input Rated voltage/frequency Three-phase 380V/480V; 50Hz/60Hz
Allowable voltage range 323V ~ 528V; Voltage imbalance ;≤3%; allowable frequency fluctuation: ±5%
Rated current (A) 2.8 4.2 6.1 10 15 19 26 33 43 50 66 83 100 123 165
Braking unit Built-in as standard Built-in as option
Protection class IP20
Cooling mode Natural−cooling Forced air cooling
Power (kW) 90 110 132 160 185 200 220 250 280 315 355 400 450 500
Motor power (kW) 90 110 132 160 185 200 220 250 280 315 355 400 450 500
Output Voltage (V) Three-phase 0 to rated input voltage
Rated current (A) 176 210 253 304 350 380 426 470 520 600 650 690 775 860
Overload capacity 150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag ;feature)
Input Rated voltage/frequency Three-phase 380V/480V; 50Hz/60Hz
Allowable voltage range 323V ~ 528V; Voltage imbalance ;≤3%; allowable frequency fluctuation: ±5%
Rated current (A) 160* 196* 232* 282* 326* 352* 385* 437* 491* 580* 624* 670* 755* 840*
Braking unit External braking unit needed
Protection class IP20
Cooling mode Forced air cooling
*V6−H−4T90G and higher products are equipped with external DC reactor as standard.


V6−H−4T□□□L ;Three−phase 400V Variable torque/light−duty application

Power (kW) 1.5 2.2 3.7 5.5 7.5 11 15 18.5 22 30 37 45 55 75 90
Motor power (kW) 1.5 2.2 3.7 5.5 7.5 11 15 18.5 22 30 37 45 55 75 90
Output Voltage (V) Three-phase 0 to rated input voltage
Rated current (A) 3.3 5 7.5 11 17 22 30 37 44 56 72 91 110 142 176
Overload capacity 115% 1 minute, 160% 0.5 second, interval: 10 minutes (inverse time lag feature)
Input Rated voltage/frequency Three-phase 380V/480V; 50Hz/60Hz
Allowable voltage fluctuation range 323V ~ 528V; Voltage imbalance: ≤3%; allowable frequency fluctuation: ±5%
Rated current (A) 3.6 5.5 8.3 12 19 25 33 40 50 62 80 100 121 156 194
Braking unit Built-in as standard Built-in is optional
Protection class IP20
Cooling mode Natural cooling Forced air cooling
Power (kW) 110 132 160 185 200 220 250 280 315 355 400 450 500 560
Motor power (kW) 110 132 160 185 200 220 250 280 315 355 400 450 500 560
Output Voltage (V) Three-phase 0 to rated input voltage
Rated current (A) 210 253 304 350 380 426 470 520 600 650 690 775 860 950
Overload capacity 115% 1 minute, 160% 0.5 second, interval: 10 minutes (inverse time lag feature)
Input Rated voltage/frequency Three-phase 380V/480V; 50Hz/60Hz
Allowable voltage range 323V ~ 528V; Voltage imbalance ;≤3%; allowable frequency fluctuation: ±5%
Rated current (A) 196* 232* 282* 326* 352* 385* 437* 491* 580* 624* 670* 755* 840* 920*
Braking unit External braking unit needed
Protection class IP20
Cooling mode Forced air convection cooling

*V6−H−4T110L and higher power products are equipped with external DC reactor as standard.


V6−H−2T□□□G Three−phase 200V Constant torque/heavy−duty ;application

Power (kW)

0.4

0.75

1.5

2.2

Motor power (kW)

0.4

0.75

1.5

2.2


Output

Voltage (V)

Three−phase 0 to rated input voltage

Rated current (A)

3

5

7.5

10

Overload capacity

150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes ;(inverse time lag feature)


Input

Rated

voltage/frequency

Three−phase or single−phase 200V~240V; 50Hz/60Hz

Allowable voltage

range

180V ~ 260V; Voltage ;imbalance3%; allowable frequency fluctuation: ±5%

Rated current (A)

3.8

5.5

8.3

12

Braking unit

Built−in as standard

Protection class

IP20

Cooling mode

Natural−cooling

Forced air cooling


Technical Specification











Control characteristics

                        Control mode

Vector control 1

Vector control 2 (Without encoder)

Vector control 2 (With encoder )

Starting torque

0.50Hz 180%

0.25Hz 180%

0.00Hz 180%

Range of speed regulation



1:100



1:200



1:1000

Precision of steady speed



± 0.5%



± 0.2%



± 0.02%

Torque control

N

Y

Y

Precision of torque control





±5%



±5%

Torque response time

<20ms

<10ms















Product functions



Key functions

Under-voltage regulation, switchover of run command source(operation panel, terminal and communication), speed tracing function, torque limit, multi− step frequency reference(up to 23 step frequency), motor data identification, S curve acceleration and deceleration, slip compensation, PID regulation, droop control, current limit, switch-over between torque control and speed control, manual torque boost and auto torque boost, programmable digital inputs and programmable digital outputs

Frequency reference mode

Parameter setting, operation panel UP/DN, terminal, terminal UP/DN, communication, analog ( AI1/AI2/AI3), pulse DI , etc.



Frequency range

0.00 ~ 300.00Hz

Note:

In the control mode of vector control 1, frequency range from 0.0Hz to 3000.0Hz can be customized according to the customer demand

Start frequency

0.00 ~ 60.00Hz

Acceleration time and deceleration time

0.1 ~ 36000s


Dynamic braking

Braking unit action voltage: 650 ~ 750V; operating time: 100.0s

The braking unit can be built-in for V6−H−4T75G and below equipment



DC braking

DC braking start frequency: 0.00 ~ 300.00Hz

DC braking current: constant torque: 0.0 ~ 120.0%, variable torque: 0.0 ~ 90.0% DC braking time: 0.0 ~ 30.0s; DC braking function does not required waiting time to start to realize quick braking

Magnetic flux braking

Enabled or disabled during deceleration are optional, the default setting is enabled






Unique functions



Multi-function M key

The unique multi-function key can be set to frequently used operations: such as JOG, emergency stop, switchover of run command source, switchover of parameters display mode, etc.

Multiple parameters display modes

Basic parameters display mode, fast parameters display mode, non−factory setting parameters display mode, last changed 10 parameters display mode



Parameters copy

The standard operation panel can realize the parameters upload, download and display the copy progress. Users can set to forbid overwriting the

uploaded parameters

Displayed and hidden parameters group

The customer can select to display or hide the parameters group by themselves

Dual 485 communication ports

Dual 485 communication ports support Modbus protocol (RTU). The maximum distance is 500 meters



Installation dimension



V6−H−2T0.4GV6−H−2T2.2GV6−H−4T7.5G/11L  And below power class



V6−H−4T11G/15L And above power class


Product appearance, installation dimensions, approximate weight

Voltage

Model

Appearance, installation dimensionmm

weightkg

W

H

D

W1

H1

D1

T1

Hole ;d

200V

V6−H−2T0.4G

118

190

155

105

173

40.8

3

5.5

1.5

V6−H−2T0.75G

175

60.5

4

2.2

V6−H−2T1.5G

155

40.8

3

1.5

V6−H−2T2.2G

175

60.5

4

2.2

400V

V6−H−4T0.75G/1.5L

118

190

155

105

173

40.8

3

5.5

1.5

V6H−4T1.5G/2.2L

118

190

175

105

173

60.5

4

5.5

2.6

V6H−4T2.2G/3.7L

V6H−4T3.7G/5.5L

V6H−4T5.5G/7.5L

155

249

185

136

232

69

8

5.5

4.5

V6H−4T7.5G/11L

V6H−4T11G/15L

210

337

200

150

324

88

2

7

8.5

V6H−4T15G/18.5L

V6H−4T18.5G/22L

289

440

215

200

425

88

2.5

7

17

V6H−4T22G/30L

V6H−4T30G/37L

V6H−4T37G/45L

319

575

212

220

553

90.5

2.5

10

25

V6H−4T45G/55L

V6H−4T55G/75L

404

615

255

270

590

86.5

3.0

10

35

V6H−4T75G/90L

V6−H−4T90G

V6−H−4T110L

465

745

325

343

715

151.5

3.0

12

55

V6−H−4T110G

V6−H−4T132L

V6−H−4T132G

V6−H−4T160L

540

890

385

370

855

205.5

4.0

14

85

V6−H−4T160G

V6−H−4T185L

V6−H−4T185G

V6−H−4T200L

V6−H−4T200G

V6−H−4T220L

V6−H−4T220G

V6−H−4T250L

700

1010

385

520

977

210

4.0

14

125

V6−H−4T250G

V6−H−4T280L

V6−H−4T280G

V6−H−4T315L

V6−H−4T315G

V6−H−4T355L

810

1358

425

520

1300

210

4.0

14

215

V6−H−4T355G

V6−H−4T400L

400V

V6−H−4T400G

V6−H−4T450L

810

1358

425

520

1300

210

4.0

14

215

V6−H−4T450G

V6−H−4T500L

V6−H−4T500G

V6−H−4T560L


Applications











Representative Industry

Printing Packaging, Petrochemical, Textile, Cable Machinery, Food ,Packaging, Electric Vehicles, Plastic Machinery, Metal Products Equipment, Centrifuges and High-end applications requiring closed-loop vector or torque control.



Product Tags 18.5kW-55kW Inverter Drive          Cable Machinery Inverter          Printing Packing Machine VFD
