Siboly Evaporative Air Cooler Principle

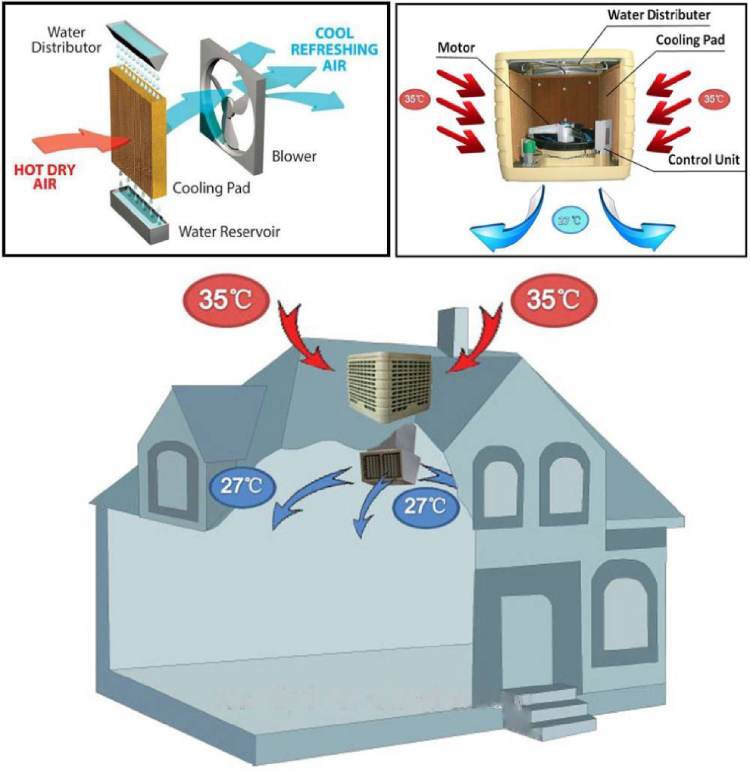

Siboly evaporative air cooler is a device that cools air through the evaporation of water. Evaporative cooling differs from typical air conditioning systems which use vapor-compression or absorption refrigeration cycles. Evaporative cooling works by employing water's large enthalpy of vaporization. The temperature of dry air can be dropped significantly through the phase transition of liquid water to water vapor (evaporation), which can cool air using much less energy than refrigeration. In extremely dry climates, evaporative cooling of air has the added benefit of conditioning the air with more moisture for the comfort of building occupants.
|
SPECIFICATIONS FOR XZ10-18X-1
|
|
Airflow (m3/h)
|
18000
|
|
Fan Type
|
Axial
|
|
Speed
|
Variable speed
|
|
Noise (dB)
|
≤ 67
|
|
Effective Area (m2)
|
100-150
|
|
Evaporation Effiency (%)
|
87
|
|
Water Capacity (L)
|
40
|
|
Power Supply (V/Hz)
|
220/50
|
|
Power Consumption (kw)
|
1.1
|
|
Controller
|
LCD Touch Screen and Remote Controller
|
|
Net Weight (kg)
|
76
|
|
Dimension (mm)
|
1100×1100×950
|
Main Features
1) Cools an area up to 150m2;
2) Energy saving design, operation costs is about 10% of traditional Air conditioner;
3) Large airflow, 18000 CMH with variable speed;
4) High quality cabinet using PP with UV protection;
5) LCD Touch Screen and Remote Controller;
6) Top / Down / Side discharge models available;
7) Easy installation and maintenance;
8) OEM acceptable.

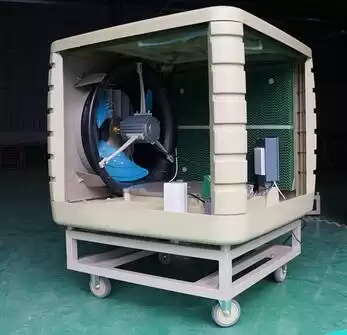

Detailed Images
Complete Unit Packing
20GP: 20 units
40GP: 44 units
Delivery: Within 10 working days after receiving of deposit or LC at sight.
