18650/26650/32650/21700 Automatic 5 Channel Lithium Cylindrical Battery Sorting Machine
Features:
1.Products with high precision internal resistance、Voltage、automatic test system.
2.The device is set according to the settings Internal resistance voltage,
3. Accurate delivery of cores to designated gears.
4 .Hopper put in 500 pcs High production efficiency easy to operate.
5.Stick Barley paper 4200pcs/Hour high stability.
6.Can be docked with automatic veneer cushion machine，Saving labor.
Specifications:
|
Voltage
|
AC220V,50Hz
|
|
Compressed Air
|
0.4-0.7Mpa
|
|
Internal Resistance
|
Hioki3561 or HK3561
|
|
Measurement of Internal Resistance
|
Range:0-60mΩ
Accurace:± 0.5% rdg
Resolving power: 0.1mΩ
|
|
Internal Pressure Measurement
|
Range:0-10V
Accurace:± 0.015% rdg
Resolving power: 0.1mV
|
|
Size(L x w x H)
|
980x520x1360mm
|
|
Production Efficiency
|
4200PCS/hour, single pad 1pcs
|
|
Control Device
|
7 inch Touch Screen
|
|
Sorting Speed
|
60-70PPM
|
Equipment Configuration:
|
Serial No.
|
Spare Parts
|
Brand
|
|
1
|
Air Cylinder
|
SMC、CKD
|
|
2
|
Solenoid Valve
|
SMC
|
|
3
|
Linear Guide Rail
|
TPI
|
|
4
|
Electric Relay
|
OMRON
|
|
5
|
PLC
|
TouchWin
|
|
6
|
Inductorium
|
OMRON、SUNX
|
|
7
|
Button
|
Goncon
|
|
9
|
Pilot Lamp
|
Goncon
|
|
10
|
Tester
|
Hioki3561 or HK3561
|

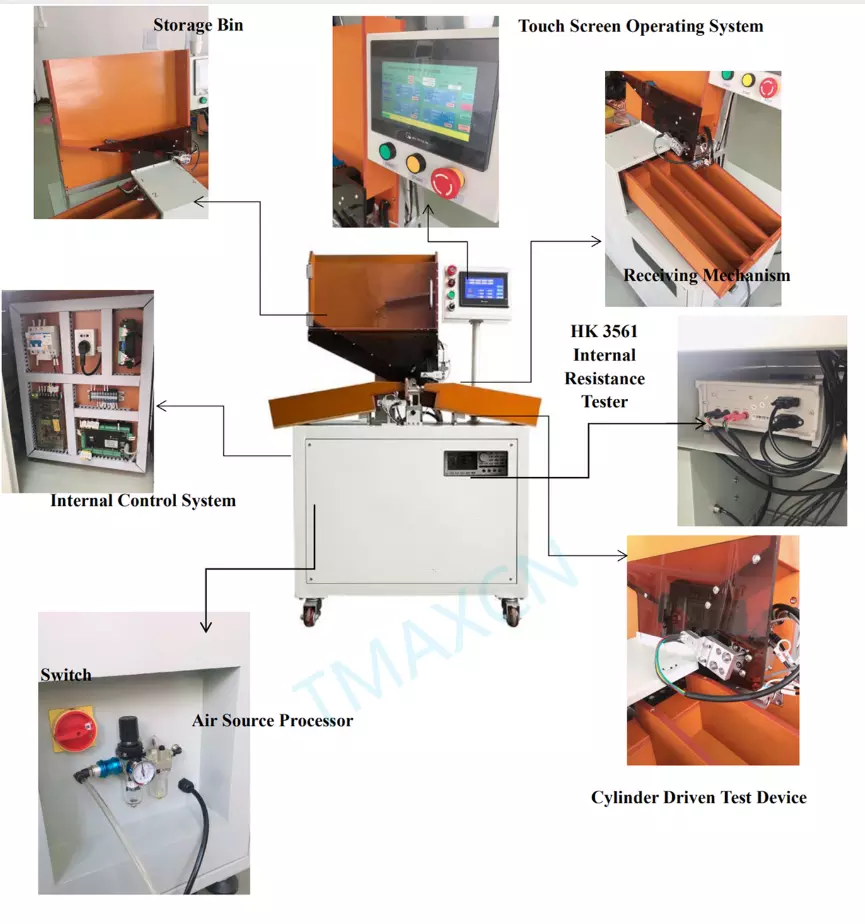

Details:
