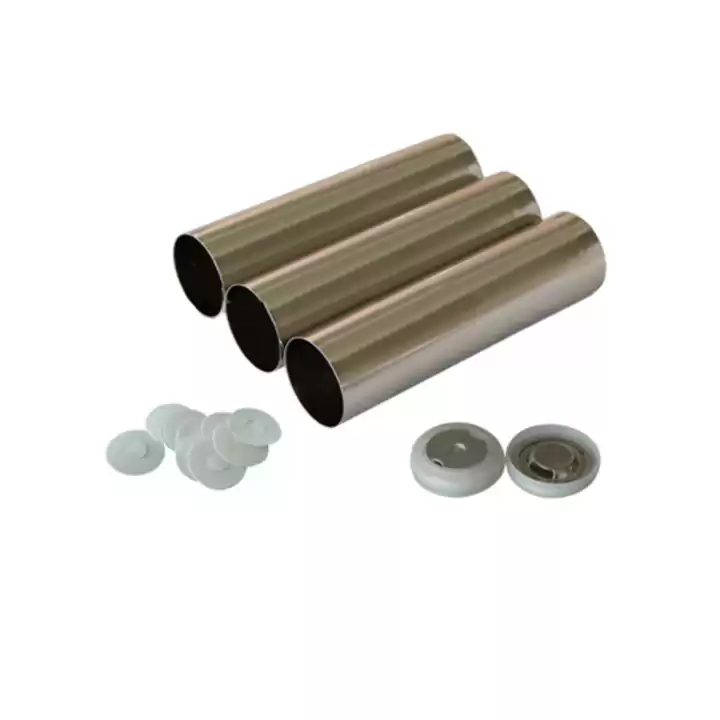

18650 Cylinder Cell Case With Anti-Explosive Cap And Insulation O-Ring

Wechat:18659217588

Whatsapp:+86 13174506016

Email:David@batterymaking.com

Specifications

Cap

Cap with Built-in PTC Thermistor for overcurrent protection

Dimensions (Dia x Height)

Case: 18mm(OD) x 17.5mm(ID) x 67mm(H)

Top Cap: 17.5mm(D) x 4.05mm(H)

Top Insulator: 12.5mm(D) x 0.19mm(H)

Bottom Insulator: 12.5mm(D) x 0.19mm(H)

Materials

Case and cap are made of Nicke plated A3 steel

Seal O-ring and spacer are made of nylon

Insulating gasket is made of PET

Weight

9.50 g/pcs

Note

Safety valve's open pressure: 2.5MPa (the cap valve will open to release interior high pressure -- if over 2.5MPa -- to ensure the can does not explode)

Product Tags cylindrical cells cylindrical load cell cylindrical lifepo4 cells cylindrical battery cells equipment lab the lab equipment cylindrical cell grooving machine 26650 cylindrical battery cells buy cylindrical battery cells

Specifications
Cap	Cap with Built-in PTC Thermistor for overcurrent protection
Dimensions (Dia x Height)	Case: 18mm(OD) x 17.5mm(ID) x 67mm(H) Top Cap: 17.5mm(D) x 4.05mm(H) Top Insulator: 12.5mm(D) x 0.19mm(H) Bottom Insulator: 12.5mm(D) x 0.19mm(H)
Materials	Case and cap are made of Nicke plated A3 steel Seal O-ring and spacer are made of nylon Insulating gasket is made of PET
Weight	9.50 g/pcs
Note	Safety valve's open pressure: 2.5MPa (the cap valve will open to release interior high pressure -- if over 2.5MPa -- to ensure the can does not explode)
