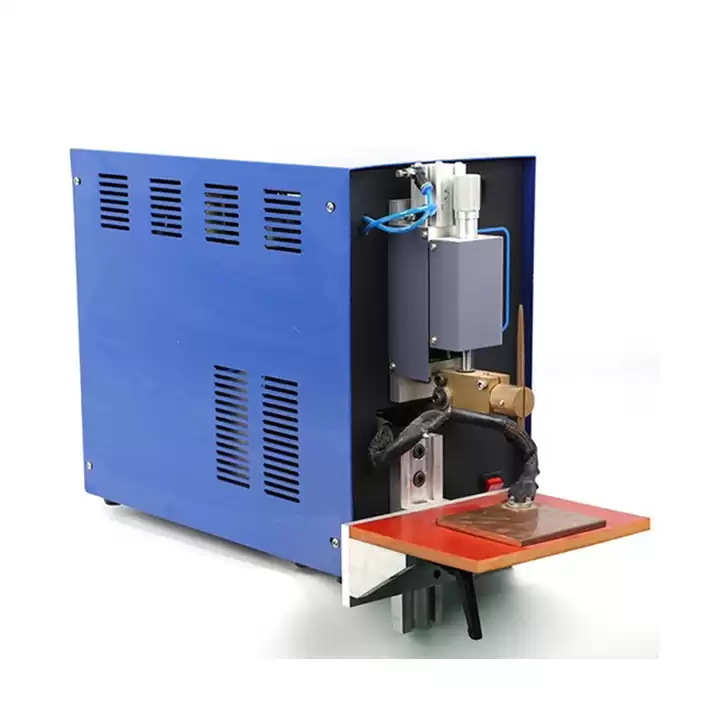

18650 Cylinder Cell Single Point Pneumatic Welder



It is the most popular capacitive discharge spot welder driven by compressed air. It is designed for the production of the world’s high-class battery manufacturer (NiMH. NiCd, Li-Ion/LiMnNi. LifePO4) with more reliable and consistent welding than AC pulse.  If you have 18650 machine  ordering needs, please contact us.


Working Voltage

110V or 240V AC, 50/60Hz

Output Power

10KW

Input Air Pressure

0.1 - 0.8 MPa (Air Compressor is not included. Please click here to order)

Welding Current

0-99% Adjustable

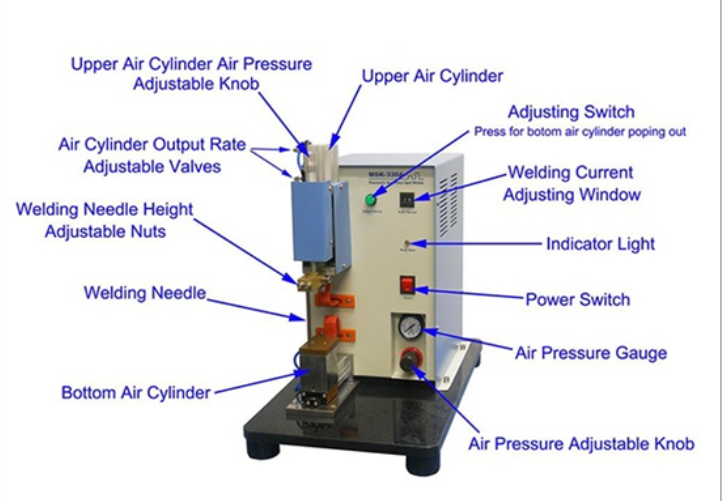

Welding probes

·         Allow independent adjustment for pressure

·         Ensure consistent welding pressure

·         Fully eliminates the phenomenon of low voltage or condensation occurred to lithium batteries after welding

·         Homogeneous welding spot, small spark, and no black spots

Welding Switch

Built in optoelectronic welding switch, which can eliminate the need of changing switches for similar welding machines

Controller

·         Single chip control

·         Digital LCD control panel for setting all parameters

Tab Thickness Applicable

0.03 - 0.5mm tab (10 pcs 0.2mm Tab will be provided in the package for customer's practice)

Warranty

·         One year limited warranty with lifetime support

·         Rusting and damage due to improper storage condition or maintenance is not covered by warranty

Product Dimensions

750(L)*650(W)*550(H)mm

Application Notes

·         Please click here to learn the basic knowledge of Capacitive Discharge Spot Welder

·         Avoid touching weld spots immediately after the weld has been performed as they will be hot

·         Always wear safety glasses when working with spot welders and weld heads

·         Be careful not to pinch fingers in moving weld head parts or between welding electrodes

·         Remove hand jewelries before welding

Net Weight

50 kg (110 lbs)
