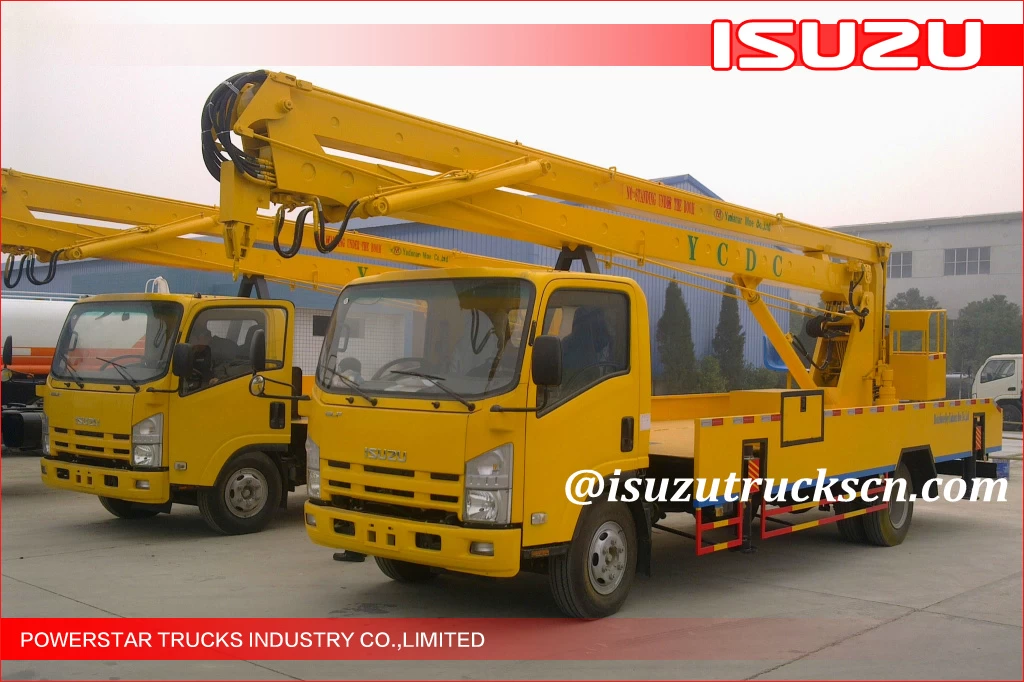

18m Myanmar YCDC Isuzu Aerial platform vehicle overhead working truck



 18m Myanmar YCDC Isuzu Aerial platform vehicle overhead working truck

Isuzu Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on.



Key Features:

  Can be operated at both turret and platform

  Step less speed regulation

  Imported key components, higher reliability, excellent property and long life-span.

  Larger span of trigger, higher stability

  Urgent power for emergency

  Operation height :  12M, 14M, 16M, 18M, 20M, 22M



Main specifications:



Model

PT5070JGK

Driving Type

4x2    (Left hand drive)

Wheelbase

4175mm

Engine

139 kw (190hp)

Structure type

Three-section articulated boom

Working Platform

Internal size

1100×600×1100 mm

Rated loading

200kg  (or 2 persons)

Max. Working height

18 M

Max. Height from ground

12300 mm

Max. Working radius

7700 mm

Working radius when doing the highest height

2950 mm

Working Boom

Max. Raising angle of lower boom

70 º

Max. Raising angle of upper boom

70 º

Max. Raising angle of jib

90 º

Boom rack ration angle

360 º

Outrigger

Vertical span

3200 mm

Horizontal span

3600 mm

Traveling of vertical outrigger

450 mm

Adjustment

Single adjustable

Color

Yellow   (Any color & logos up to wish)



Dimension drawing
