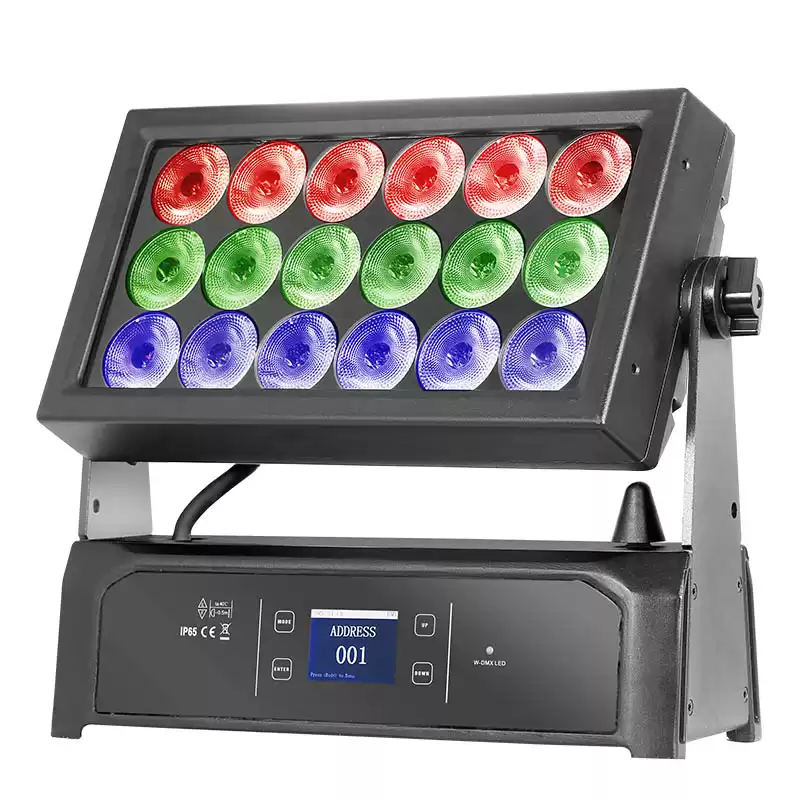

It has aluminium alloy waterproof structure.Its look design is very good such as fashion,generous and easy installation.The equipment is with 18pcs 15W RGBW high powerful LED as light source.And beam angle 25°（10°，45°optional）.Each LED line can be controlled separately.It has reasonable LED layout so that  it has homogeneous the bright , purer mixing colour and further light distance.Then it is suitable for projection lighting、stage、theatre etc.And it is with powerful two-way RDM function besides DMX control.

●  Optics

. LED qty：18x15W RGBW 4in 1 LED,uniform and delicate color mixing effect

. Lens：43mm high intensity PMMA lens

. Beam angle：25°（10°，45°optional）

. Lifetime：50000H，low power consumption, energy conservation

 and environmental protection

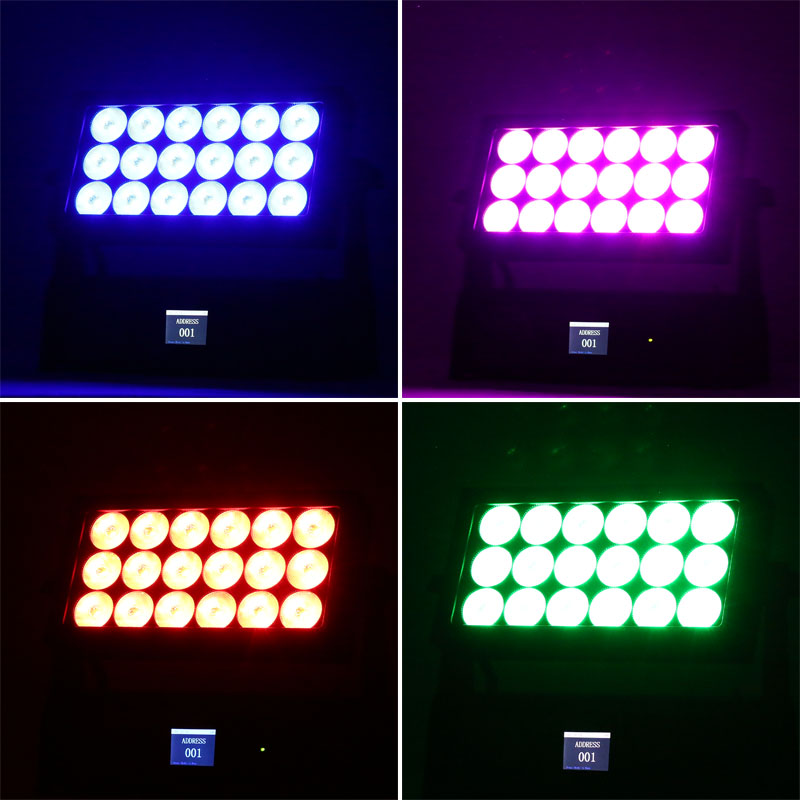

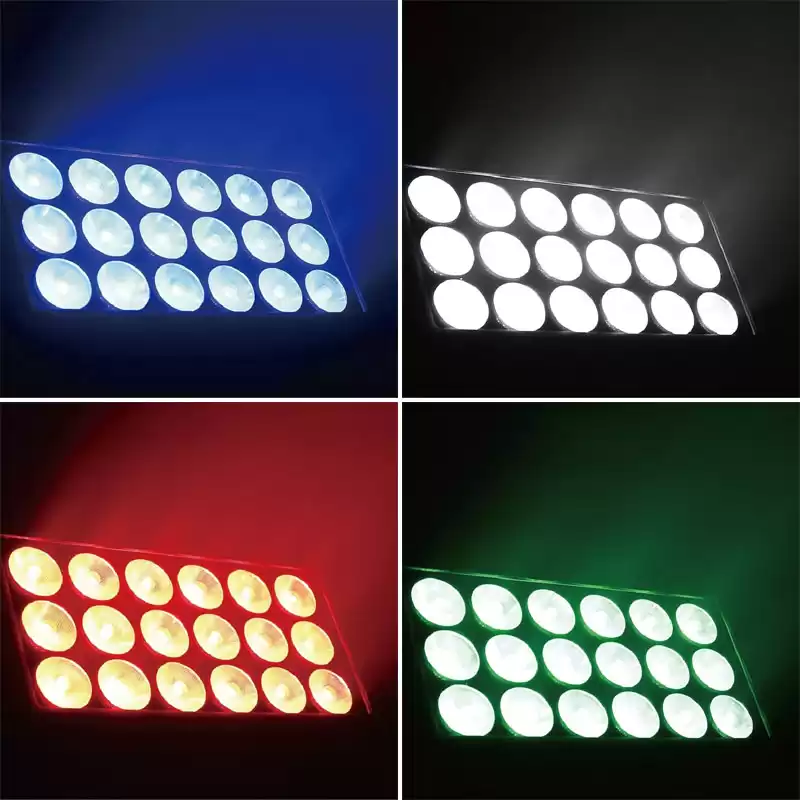

●  Colors

. Uniform and delicate RGBW  mixing color system and rainbow effect

. Manually adjustable White balance

. Each line of LEDs controlled individually can create more colorful chasing effect

. Static color set up

●  Specification

. 7 DMX channel modes：2CH/3CH_1/3CH_2/4CH/12CH/14CH/26CH international standard DMX-512 channel

. 3 control modes::DMX512、W-DMX、Master-Salve

. 2.4G wireless DMX

. Beam angle：25°（10°，45°optional）

. DMX function：Dimmer、Strobe、RGBW、Macro color、color jumping change、color gradual change 、Rainbow、Auto-program selection、Auto speed、dimmer curve selection、function setting

. Stand-alone mode：color jumping change、color gradual change、Auto-program、slave、Macro color、static color setting、Rainbows、Auto-program selection

. Strobe effect：0-20HZ strobe、Pulse strobe、Ramp up strobe、Ramp down strobe、Random strobe、 Strobe Break Effekt, 5s…..1s、Strobe0-20Hz。

. Dimmer:0-100% 16bit dimming which can control brightness change and closing of 4colors at the same time

. LEDs of each line can be controlled in 4colors

. Dimming way：LED mode and Halogen lamp mode

●  Display

. 2.4inches TFT colorful screen

. High anti-interference four touch buttons

. Settable button lock to prevent imoperation

. Display screen can be reversed 180° and fit for different places installatio

●  Software

. Software upgrade：quick software upgrade via DMX cable

. Display the use time of the light, so that customers can know the use details of the light in time

. LED refresh rate：800Hz/1200Hz/2000Hz/3600Hz /25000Hz optional

. 4kinds of dimming curve：linear dimmer、Sqaure dimmer、I. Sqaure dimmer、S-Curve dimmer

●  Other functions

. Setting and addressing：RDM

. LEDs temperature detection system to protect the LEDs

. Fan cooling(the fan change the speed with the temperature changes）

. Fan running mode：Auto mode and high speed mode

. It is a quick and convenient method to change beam angle by adding filter plate on the surface of light with the magnet-pull way

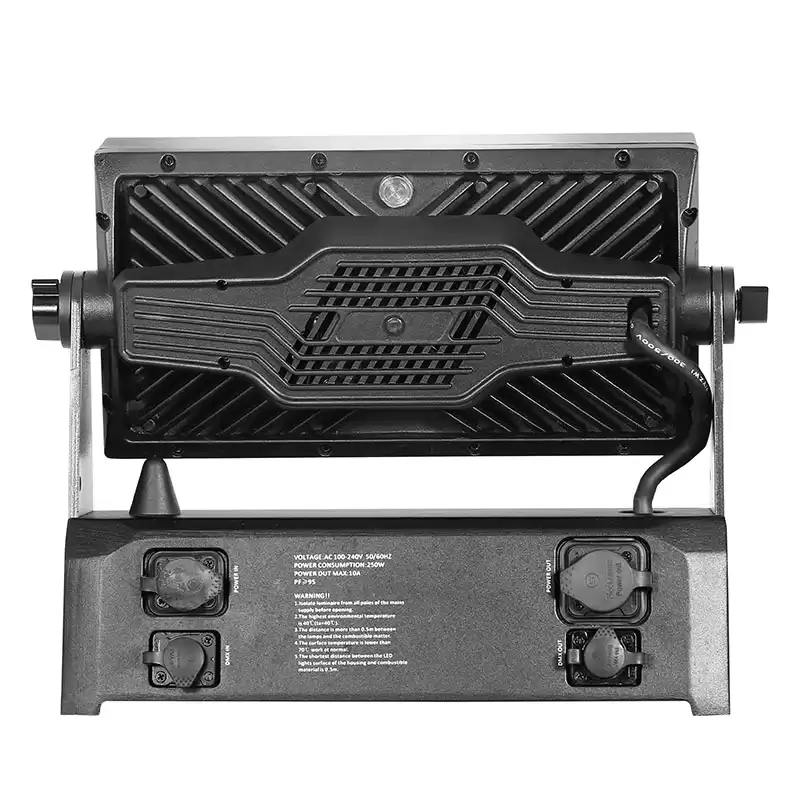

●  Power/Signal connection

. Power connection：waterproof Seetronic powerCON IN (SAC3MPX) / OUT (SAC3FPX)

. DMX input：Waterproof DMX XLR  3-pin Seetronic J3F2C-W

. DMX output：Waterproof DMX XLR  3-pin Seetronic K3F2C-W

●  Power

. AC100-240V 50/60HZ

. Power consumption：260W

●  Protection class

. Housing：Die-cast aluminium

. IP class：IP65

●  Operation environment

. operation temperature：-20°C～+40°C

●  Size/weight

. Packaging size：450*345*250mm

. Net weight： 8.2KG

. Gross weight：9.4KG

●  Certification：

. CE,ROHS
