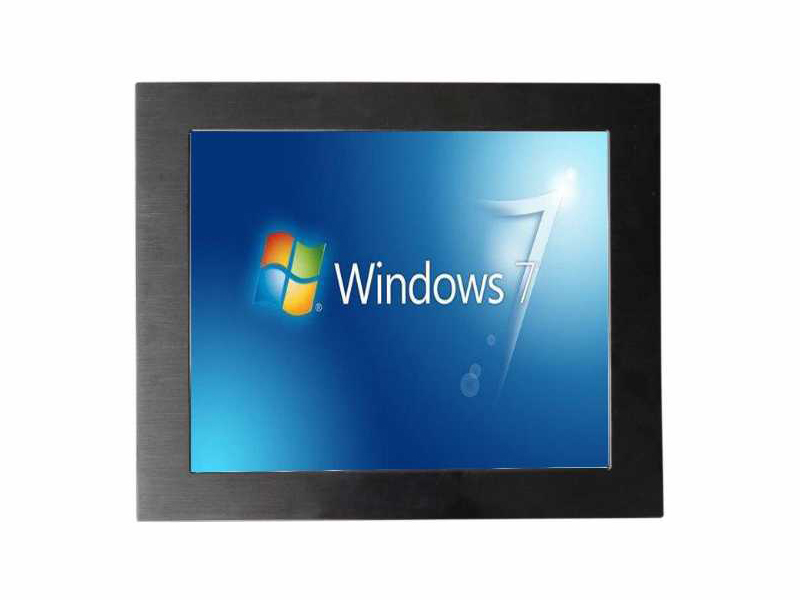

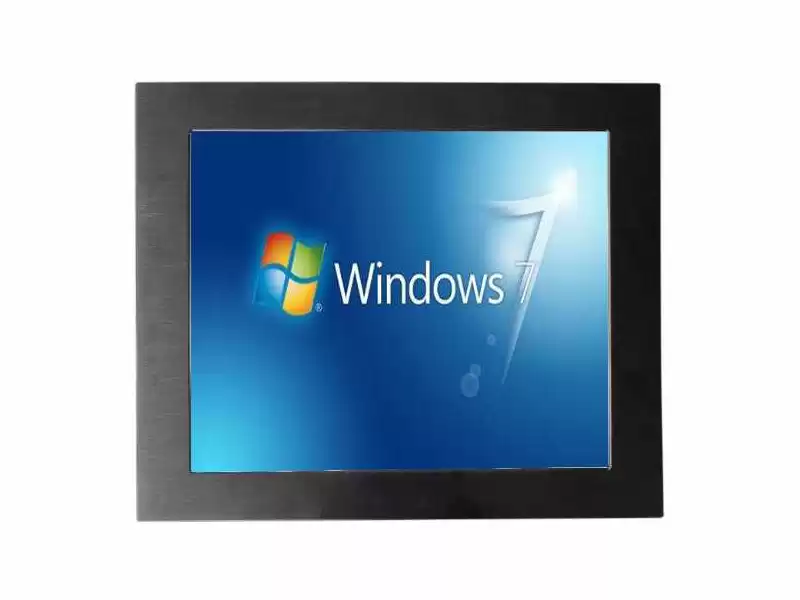

19inch Resistive Touch Screen Industrial Panel PC
Product Introduction
This series of products is designed to meet the requirements of harsh industrial environments with high interference resistance, good dustproof, heat dissipation, vibration resistance, EMC performance, high system reliability and environmental applicability, and is a product for industrial automation industry, medical machinery, medical information technology, wind power and other harsh industrial field control applications.
| Specifications |
optional configurations |
| Front Panel |
Aluminum panel, brushed and oxidized natural color |
Other colours can be customized |
| Back chassis |
1.2mm steel plate, Silver |
Other colours can be customized |
| LCD Screen |
19" TFT, LED backlight; Resolution 1280*1024; Dot matrix: 0.297*0.297; Max. colour: 16.7M; Brightness: 350cd/㎡; Contrast ratio: 1000:1; Response time: 3.6ms; MTBF: 50,000h Viewing angle: (+85° ~ -85°) (+80° ~ -80°). |
| Touch Screen |
Resistive screen |
Customizable Capcitive screen |
| Adaptive Motherboard |
Low Power ITX Motherboard |
All low-power ITX motherboards are available |
| CPU/GPU |
Intel i5 3317U |
Optional 3rd/4th/6th/7th Generation i3/i5/i7 U Series CPU |
| Memory |
4G DDR3 |
Optional 2G/8G/16G,Max up to 32G notebook memory |
| Hard Disk |
128G MSATA |
Optional 32G/64G/256G/512G mSATA;2.5"
500G/1T/2T HDD and 512G/1T SSD |

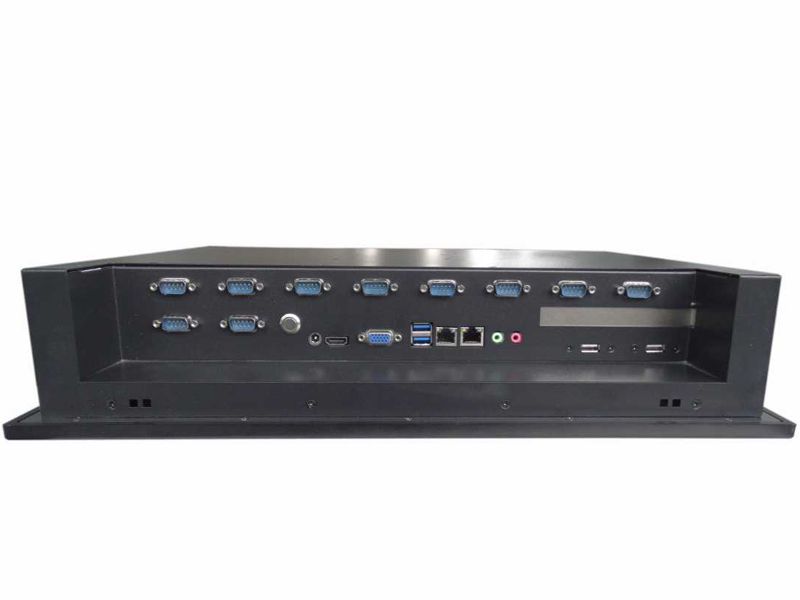

| Interfaces |
DC12V in；4USB； 2RJ45(Gigabite）；VGA；HDMI; Audio out； MIC in；2 antenna holes; 6COM; 10 DB9;1 slot |
Customizable 6USB or 10COM or 1LPT; customizable wide voltage input;Customizable aerial plug or Phoenix terminal DC input, customizable wide voltage input |
| Ethernet |
2LAN(Gigabite Network) |
|
| Display Interface |
VGA + HDMI |
|
| Expansion |
1 slot for additional COM, LPT or USB |
|
| Size |
477(length)* 390(width)* 98(thickness)mm |
Net/Gross Weight |
7/8KG |
| Power Supply |
250W industrial ATX power supply |
|
| Installation mode |
Recessed screw mount;Recessed hook mounting; VISA wall mount |
Product Features
■ Brushed aluminum panel; panel IP65 waterproof. Optional full IP65
■ Low-power U series I3/I5/I7 series CPUs on board
■ 10COM(DB9) for easy access to multiple COM
■ 1 slot for optional COM or LPT or USB
■ 2LAN 6 COM 4 USB as standard
■ Multiple mounting options available
■ Resistive touch screen, optional capacitive screen
| Work and Environment |
| Working temperature |
（-20～60）℃ |
Storage temperature |
-40～75℃ |
Environmental humidity |
0~90% air humidity, no condensation |
| IP rating |
Panel IP65 |
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |

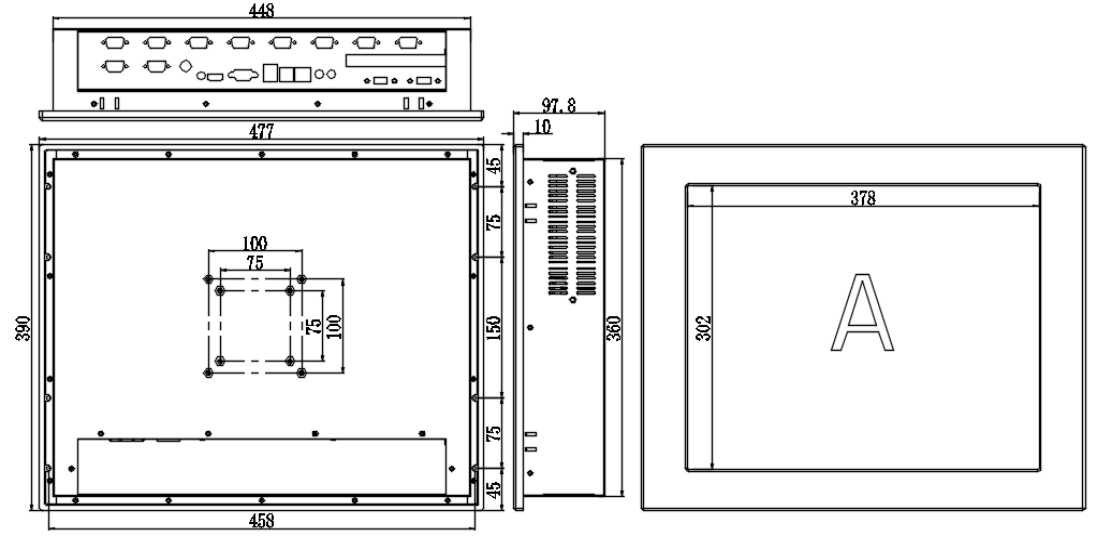

Product Installation Dimension Diagram
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
