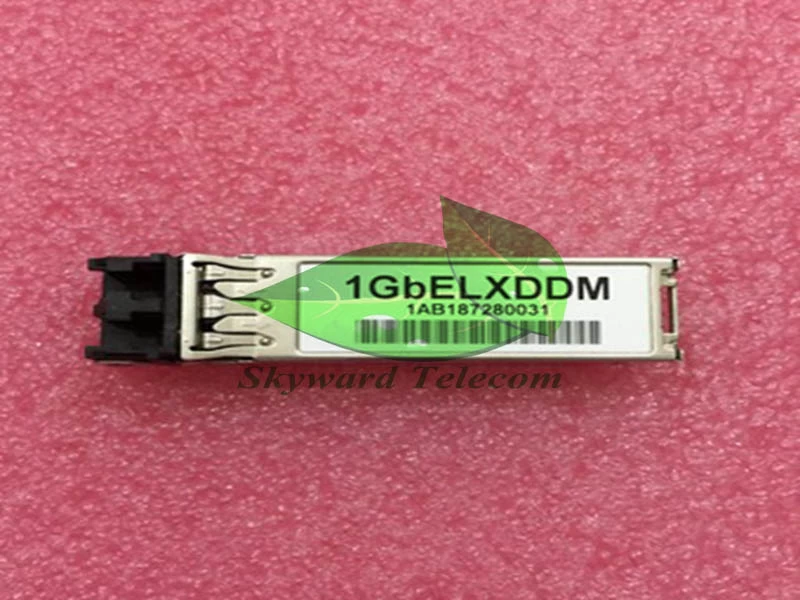

1AB187280031 Alcatel 1000Base-LX SFP Transceiver Module
Specification
|
Media Type:
|
Single-Mode
Fiber (SMF)
|
|
TX Wavelength:
|
1310 nm.
|
|
RX Wavelength:
|
1310 nm.
|
|
Minimum Optical Budget:
|
12db
|
|
Maximum Distance:
|
10km
|
|
Supported Data Rate:
|
100-2.67Gbps
|
|
Supported Applications:
|
Gigabit
Ethernet (1.25 Gbps), 100M
Ethernet (100Mbps), 2G Fiber
Channel (2.125 Gbps), 1G Fiber
Channel (1.0625 Gbps), STM-1
(155Mbps), STM-4
(622Mbps), STM-16
(2.488 Gbps), ODU0
(1.244Gbps), ODU1
(2.498Gbps), OTU1
(2.66Gbps), CPRI option
2 (1228.8 Mbps), CPRI option
3 (2.458 Gbps)
|
|
DDM/DOM:
|
Support
|
|
Temperature Range:
|
Standard
0°-70°C
|
|
Connectors:
|
Double LC
|
|
Tx Wavelength Bandwidth:
|
100 nm
(1260-1360 nm)
|
|
Rx Wavelength Bandwidth:
|
100 nm
(1260-1360 nm)
|
|
Minimum Transmitting Power:
|
-6 dB
|
|
Maximum Transmitting Power:
|
0 dB
|
|
Receiver Sensitivity:
|
-18 dBm
|
|
Receiver Overload:
|
-3 dBm
|
|
Dispersion:
|
70-100
ps/nm
|
|
Transmitter Type:
|
FP Laser
|
|
Receiver Type:
|
PIN
photodiode
|
|
Power:
|
+3.3V
single power supply
|
|
Chipset:
|
MAXIM, MINDSPEED, SEMTECH
|
|
Compliance:
|
CE, Class 1 FDA
and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA
|
|
Transceiver Type:
|
SFP
|
