Overview
Brand Name: Alcatel- Lucent
Poduct Number: 1AB217280001

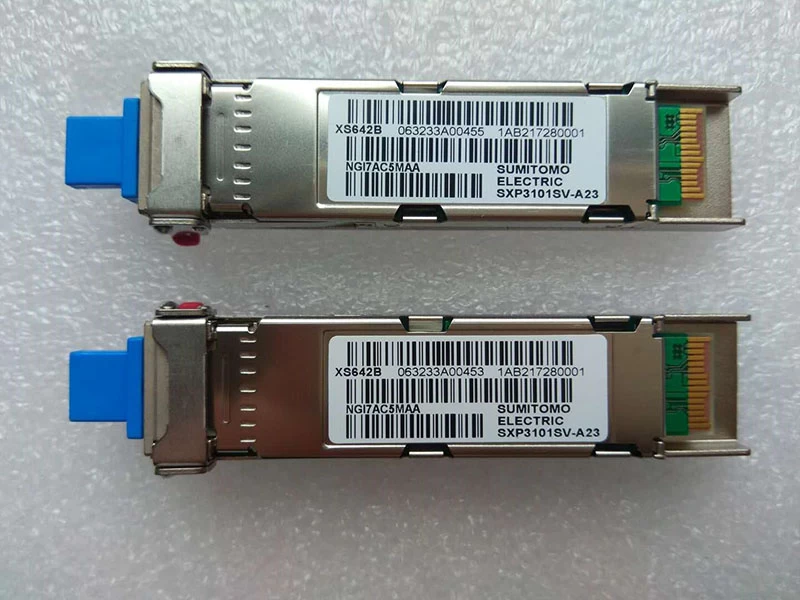

Discription: Alcatel 1AB217280001 is SFP+ (Small Form factor Pluggable) Transceiver, operating over Double Fiber Single-Mode Fiber (SMF) optical cable.
Specification
|
Media Type:
|
Single-Mode Fiber (SMF)
|
|
TX Wavelength:
|
1550 nm.
|
|
RX Wavelenght:
|
1550 nm.
|
|
Minimum Optical Budget:
|
14 dB
|
|
Maximum Distance:
|
40km
|
|
Supported Data Rate:
|
1.25-10.31 Gbps
|
|
Supported Applications:
|
10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), STM-64 (9.95Gbps)
|
|
DDM/DOM:
|
Support
|
|
Temperature Range:
|
Standard 0°-70°C
|
|
Connectors:
|
Double LC
|
|
Tx Wavelength Bandwidth:
|
37 nm (1528-1565 nm)
|
|
Rx Wavelength Bandwidth:
|
37 nm (1528-1565 nm)
|
|
Minimum Transmitting Power:
|
-1 dB
|
|
Maximum Transmitting Power:
|
4 dB
|
|
Receiver Sensitivity:
|
-15 dBm
|
|
Receiver Overload:
|
0.5 dBm
|
|
Dispersion:
|
800-1000 ps/nm
|
|
Transmitter Type:
|
DFB Laser
|
|
Receiver Type:
|
PIN photodiode
|
|
Power:
|
+3.3V single power supply
|
|
Chipset:
|
MAXIM, MINDSPEED, SEMTECH
|
|
Compliance:
|
CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFP MSA
|
|
Transceiver Type:
|
SFP+
|
