Overview

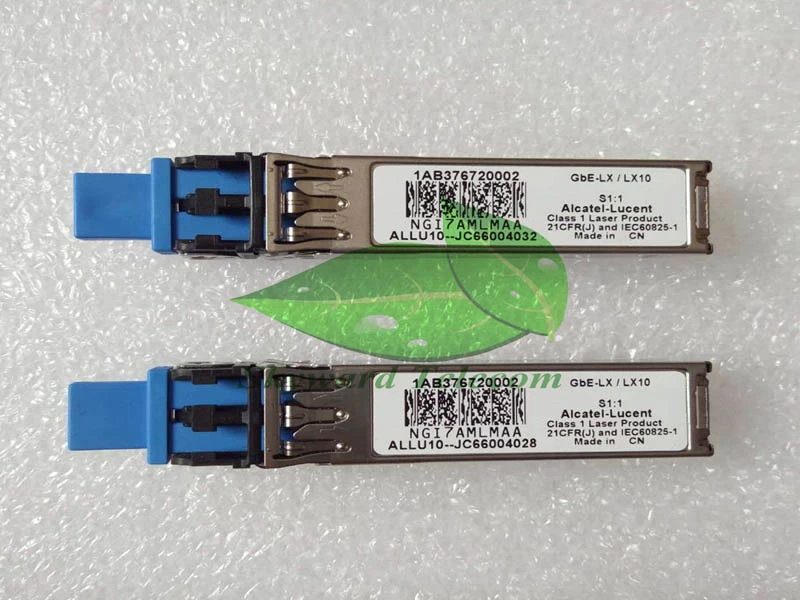

Alcatel-Lucent 1AB376720002 1000BASE-LX SFP, 1310nm, 10km over SMF
1AB376720002 NGI7AML ALCATEL-LUCENT 1850 TSS-320 1000BASE-LX SFP NGI7AMLMAA
Specification
|
Media Type:
|
Single-Mode Fiber
(SMF)
|
|
TX Wavelength:
|
1310 nm.
|
|
RX Wavelenght:
|
1310 nm.
|
|
Minimum Optical Budget:
|
13
dB
|
|
Maximum Distance:
|
10km
|
|
Supported Data Rate:
|
1.063-1.25Gbps
|
|
Supported Applications:
|
Gigabit
Ethernet (1.25 Gbps), 1G
Fiber Channel (1.0625 Gbps)
|
|
DDM/DOM:
|
Support
|
|
Temperature Range:
|
Standard 0°C -70°C
|
|
Connectors:
|
Double
LC
|
|
Tx Wavelength Bandwidth:
|
100 nm (1260-1360
nm)
|
|
Rx Wavelength Bandwidth:
|
100 nm (1260-1360
nm)
|
|
Minimum Transmitting Power:
|
-9
dB
|
|
Maximum Transmitting Power:
|
3
dB
|
|
Receiver Sensitivity:
|
-22 dBm
|
|
Receiver Overload:
|
-3
dBm
|
|
Dispersion:
|
70-100
ps/nm
|
|
Transmitter Type:
|
FP Laser
|
|
Receiver Type:
|
PIN Photodiode
|
|
Power:
|
+3.3V single
power supply
|
|
Chipset:
|
MAXIM, MINDSPEED, SEMTECH
|
|
Compliance:
|
CE, Class 1 FDA
and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA
|
|
Transceiver Type:
|
SFP
|
|
Weight
|
32.0g
|
|
Height
|
115mm
|
|
Width
|
45mm
|
|
Depth
|
20mm
|
|
Digital Diagnostics (DDM)
|
No
|
