Products features:
1.Interpret various 1D codes with high resolution laser scanning engine
2. Plug and play, easy to set up, this barcode scanner can be used quickly with other office equipment
3. Error rate as low as 1/5 million times, accurate and accurate
4. Can withstand 3 meters of free fall many times
Model number: XB-S20

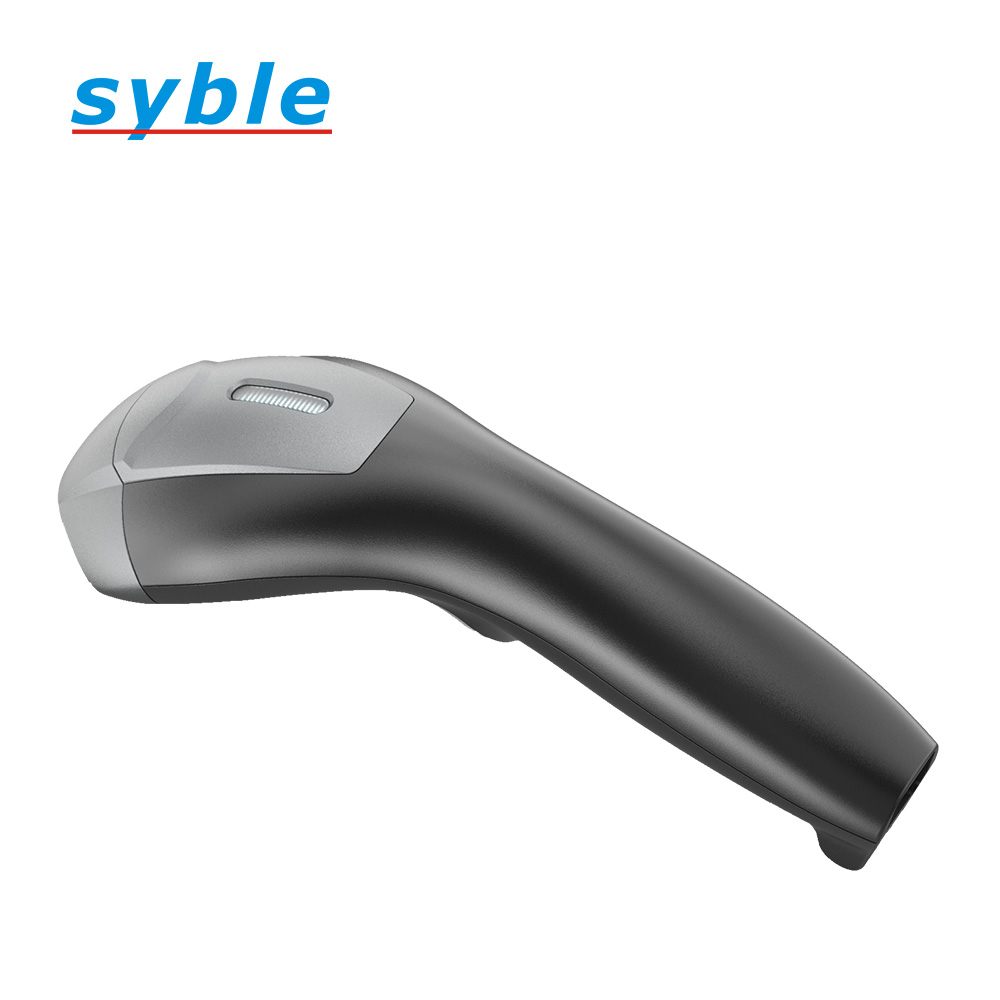

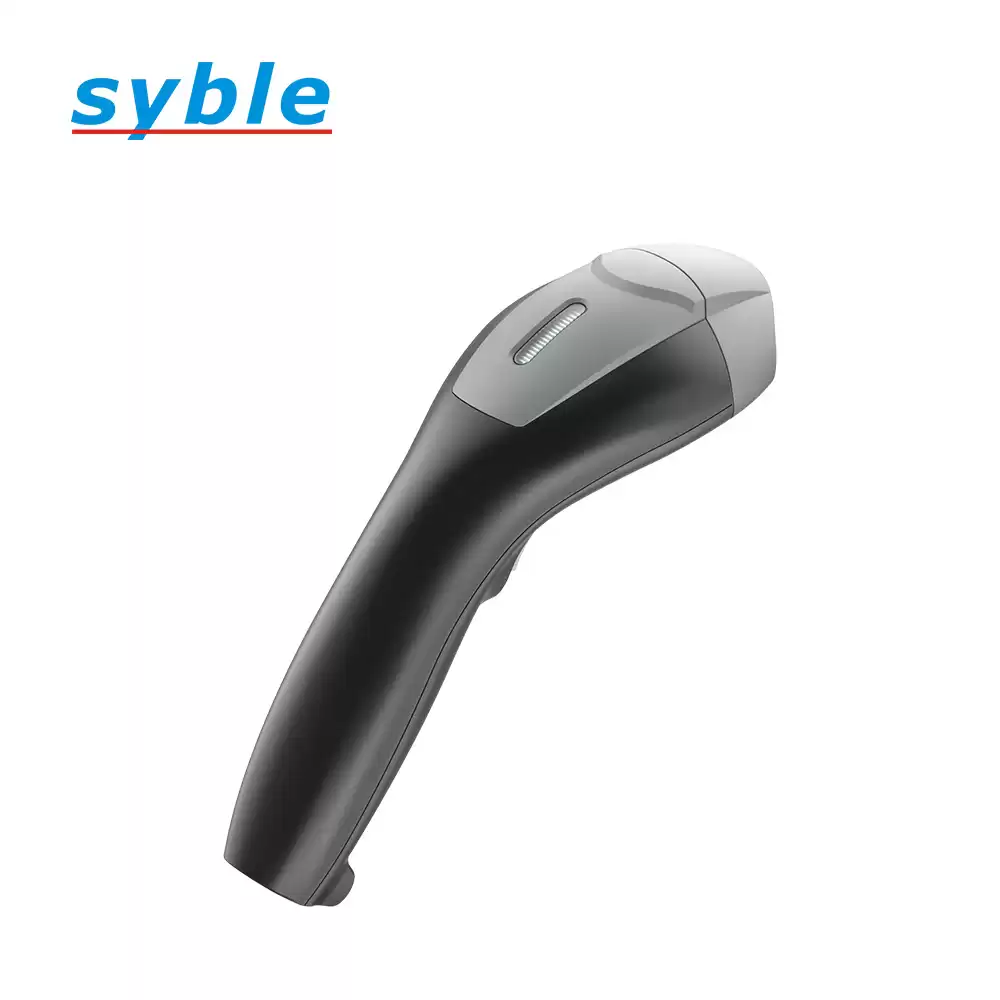

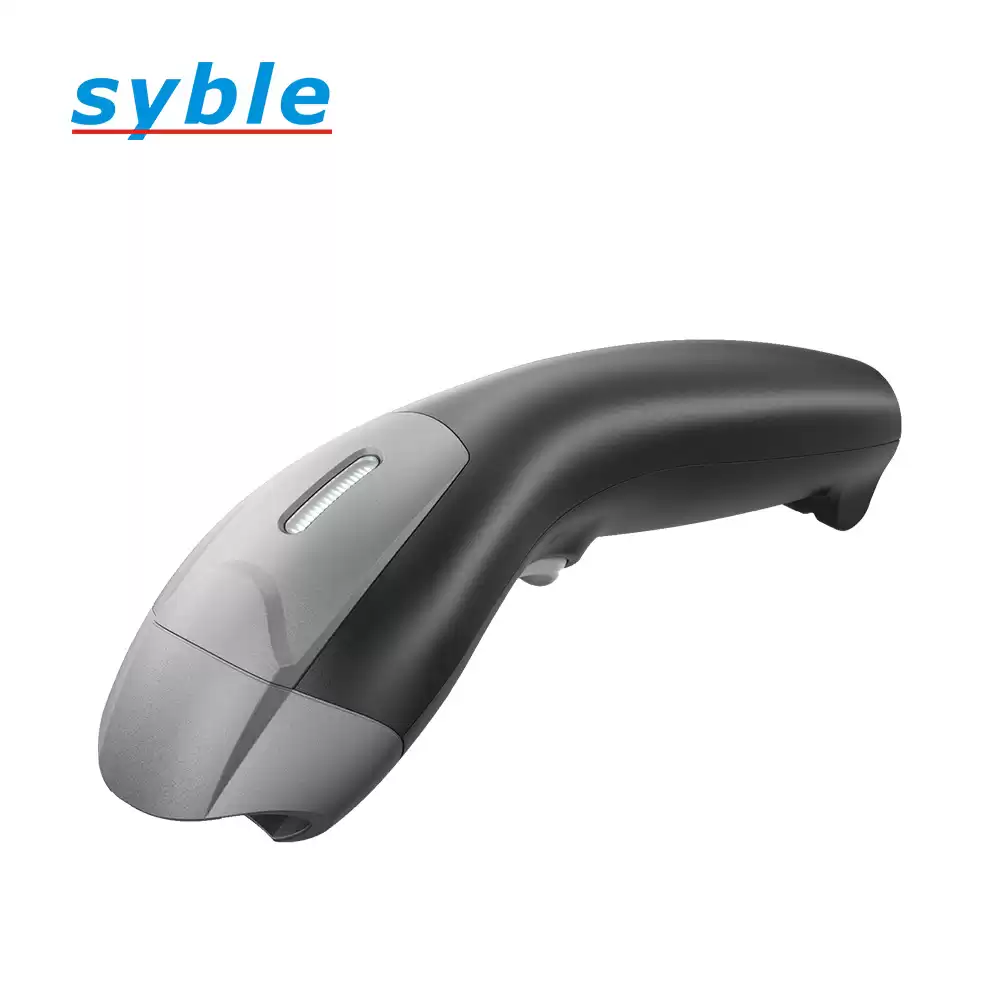

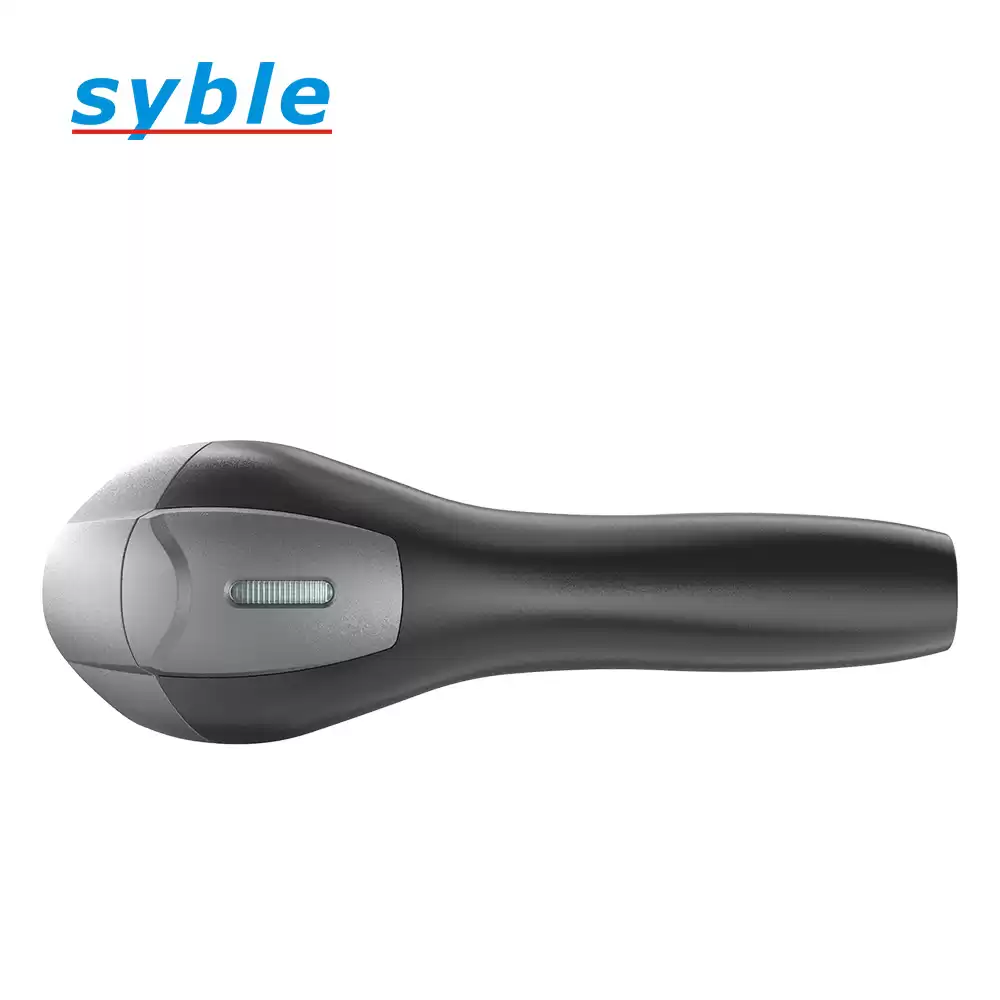

This is 1D laser handheld laser scanner, cordless with high resolution scanning engine, used on supermarket,library and airport gate and so on.
Specification
|
Performance Parameters
|
|
|
Light Sources
|
650nm laser(Safe visible laser diode)
|
|
Supported Symbologies
|
EAN-8,EAN-13,UPC-A,UPC-E,CODE39,CODE93,CODE128, EAN128, Codebar, Industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,China Post Code and all 1D barcodes ects
|
|
Scan Type
|
Single Laser
|
|
Scan Speed:
|
≥300 times/s
|
|
Scan Method
|
Manually/Automatic inductive/Successive Scanning (Optional)
|
|
Scan Angle
|
Yaw 55°,Rotation 30°,Pitch 65°
|
|
Precision
|
≥3mil
|
|
Depth of scan field
|
0-280mm(0.33mm,PCS90%)
|
|
Error Rate
|
Less than 1/5 million
|
|
Interface
|
USB-HID,USB-COM,PS2,RS232
|
|
Physical Parameters
|
|
|
Dimensions
|
83mm*70mm*172mm
|
|
Weight
|
114.3g
|
|
Material
|
ABS+PC
|
|
Cable Length
|
2M
|
|
Environmental Parameters
|
|
|
Operating Temperature
|
-20℃~50℃
|
|
Storage Temperature
|
-40℃~70℃
|
|
Relative Humidity
|
5%~95%（Non-condensing）
|
|
Drop/Shock Resistance:
|
Withstands multiple times 3meters drops to concrete
|
|
Electrical Parameters
|
|
|
Voltage
|
DC5V±1%
|
|
Current
|
85mA(Operating)
|
Applications
The 1D laser handheld barcode scanner mainly used in commercial supermarkets, specialty stores, retail stores, payment and other fields.
FAQ
Q1. What's the shipping way ?
A: There are DHL,Fedex,TNT, UPS.
We also can ship the goods by your shipping account or other express agent you provided.
Q2. What's the payment way ?
A: We accept Alibaba online orders, PayPal ,T /T, LC, Western Union.
Q3. How about your product warranty ?
A: Our officially promised warranty time is two years after delivery.
Q4. How can I get the goods ?
A: We will choost the fast , safe , and cost saving way to send goods to you.
With well packed carton by foam and plastic film to advoid goods damage.
Q5. If I come across any problem during product using ,
where I can get the support ?
A: We support you technically 24h/7.please send all your questions to us.
and we will give the professional,patient,expliantion by email or call in time.
