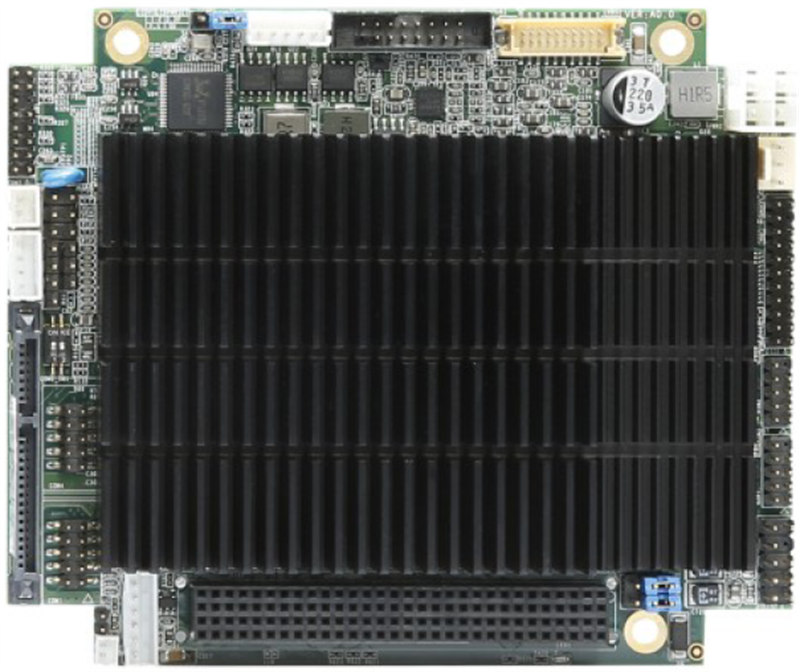

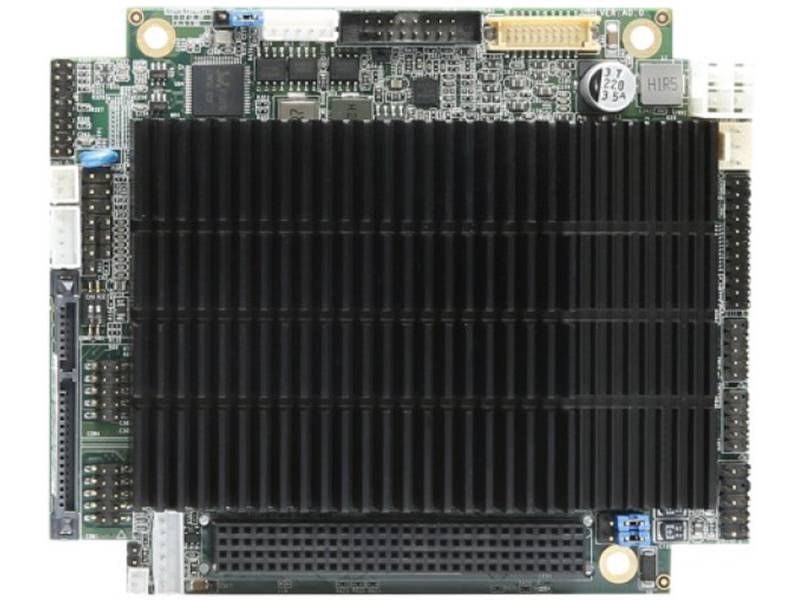

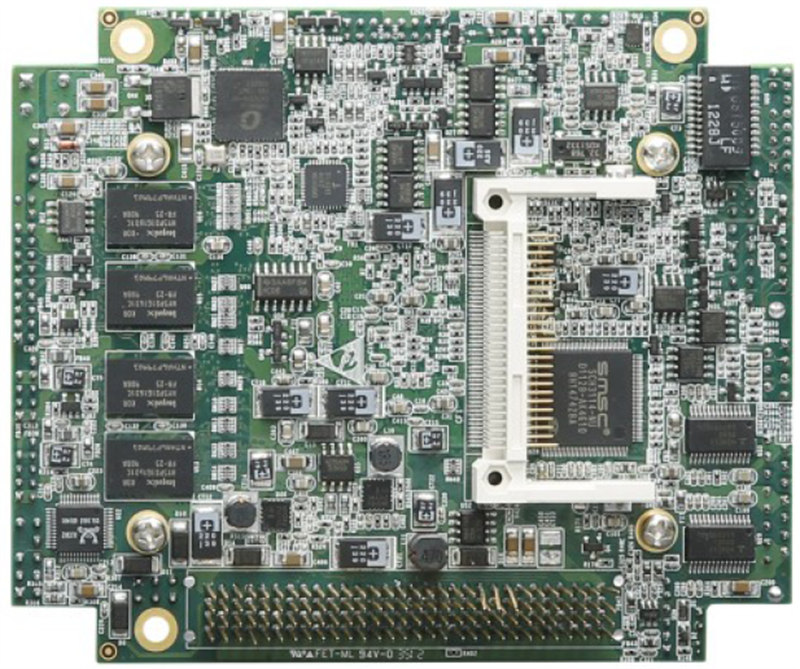

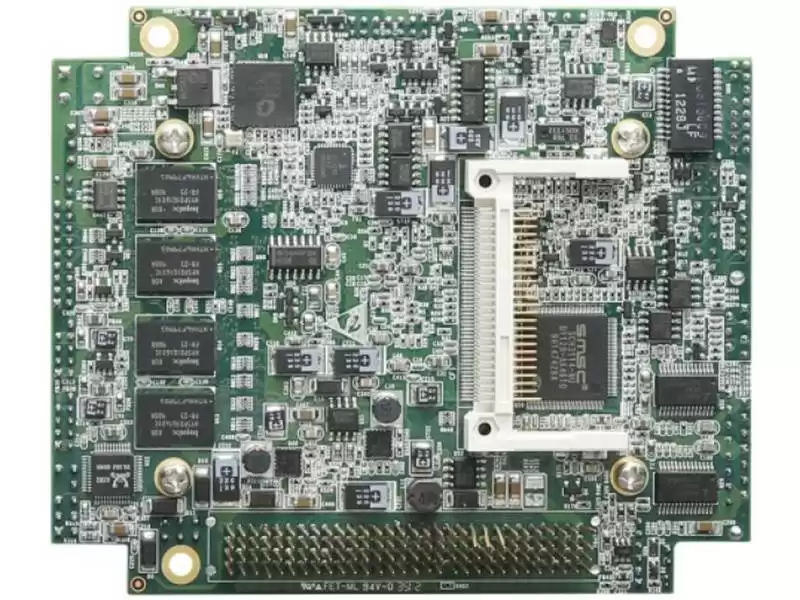

1G Memory PCI-104 Motherboard Soldered on Board Intel® N455/N450 CPU
Product Introduction
The PCI-104 motherboard adopts a compact 104mm x 96mm size and is suitable for embedded systems with space constraints. This compact design makes PCI-104 motherboards ideal for small devices and embedded applications.
PCI-104 motherboards are typically designed to meet the demands of industrial environments for durability and reliability. They can handle temperature fluctuations, humidity changes, and industrial conditions such as vibration and shock.
Product Features
■ Soldered on board Intel®N455/N450 CPU
■ Soldered on board 1G DDR2 memory
■ 1×LAN gigabit network
■ VGA，LVDS interface
■ 4COM（2RS232 + 1RS422 / 485 + RS485）
■ 4USB2.0
■ 16 bits GPIO
■ PCI-104
■ 1〜255S watchdog
|
Specification
|
|
CPU/GPU
|
Soldered on boardIntel® N455 or N450 CPU
|
|
Memory
|
Soldered on board1GBDDR2SDRAM
|
|
Storage
|
1×SATA，1 CF socket
|
|
Sound card
|
Realtek HD Audio
|
|
NIC
|
1×LAN gigabit network
|
|
Graphic card
|
CPU integrated graphic
|
|
Display interface
|
1×VGA, 1× LVDS
|
|
USB2.0
|
4
|
|
GPIO
|
16
|
|
COM
|
2 ×RS232, 1×RS422/RS485, 1×RS485
|
|
BoardI / O
|
4USB2.0 , 2RS232, 1RS422/485, 1RS485, VGA, LAN, Audio , CLR_CMOS ,
CPU fan power , GPIO, Front panel , 4P DC in, LVDS, invert, PS/2 KB/MS
|
|
Expansion
|
PCI-104
|
|
System
|
Support Windows（WINXP，WIN 7 ...），Linux
|
|
Mechanical & Environmental
|
|
Power Supply
|
DC 12V
|
Heat Dissipation
|
Fan
|
Size(L×W)
|
96mm×116mm
|
|
Working Temperature
|
-15~55℃
|
Storage Temperature
|
-40~75℃
|
Environmental Humidity
|
0~90% air humidity，no condensation
|
|
Packing List
|
104-N4551DL144 motherboard×1，SATA data cable×1，SATA power cable×1，COM cable×4
|
