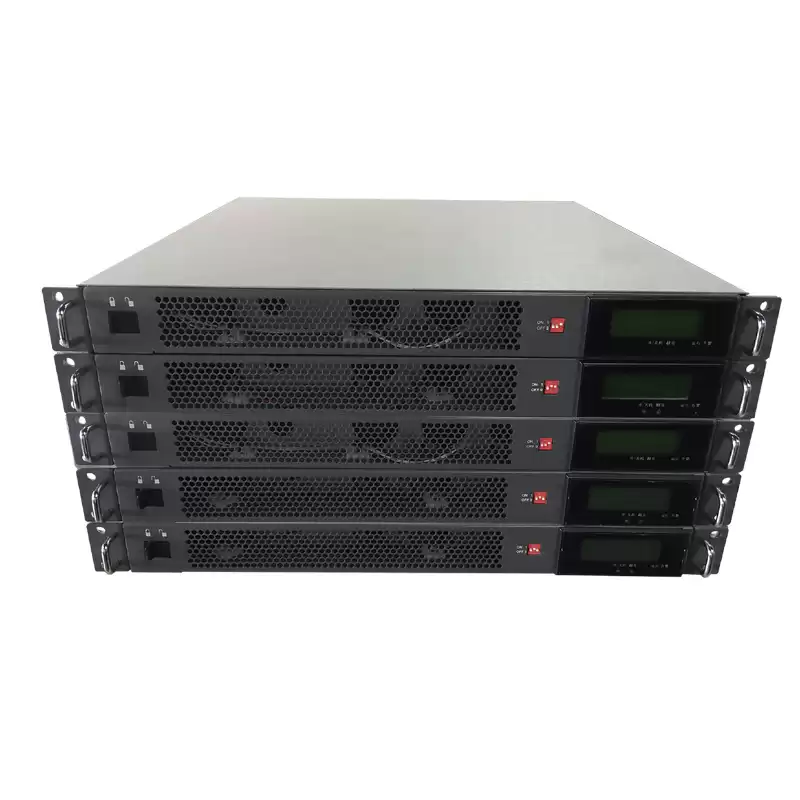

1KVA-15KVA Integrated UPS for Telecom

Capacity: 1KVA-15KVA Inverter/UPS
Features: AC 220V/DC 48V output; 3KVA module maximum parallel 5 units; Compatible with liFePO4 and lead-acid battery
Description: XMI-HR SERIES is Intelligent AC and DC integrated power supply with 48Vdc.



Application Field
Distributed antenna system,remote unit, macro coverage, fixed network access equipment.

Performance Characteristics
Intelligent Flexibility
1.Compatible with LiFePO4 batteries and lead-acid batteries.
2.Standard 19-inch rack mount,supporting wall-mounted and embedded installation.
3.Strong overload capacity, support 150% rated load impact operation for communication equipment with load nonlinear characteristics.
4.Output can be AC 220V and DC 48V at the same time(AC and DC isolated) for various communication loads.

High Reliability
1.Input power factor ≥0.99.
2.Intelligent fan speed regulation function.
3.Battery mode efficiency ≥90% at full load.
4.Application Field Mains power mode efficiency is as high as 99%.

Green Performance
1.The battery power-off voltage can be set to extend the battery life.
2.Over-voltage and low-voltage protection; output overload and short-circuit protection; over-temperature protection; battery under-voltage warning and protection; battery over-charge protection; anti-surge, lightning protection.
3.Unattended function.

Intelligent monitoring and management
1.Dry contact communication interface: three interfaces for mains power failure, low battery and system alarm。
2.Standard RS485/RS232 communication interface/SNMP as option for remote monitoring.


Product Tags 48Vdc inverter          3kVA modular inverter          DC UPS
