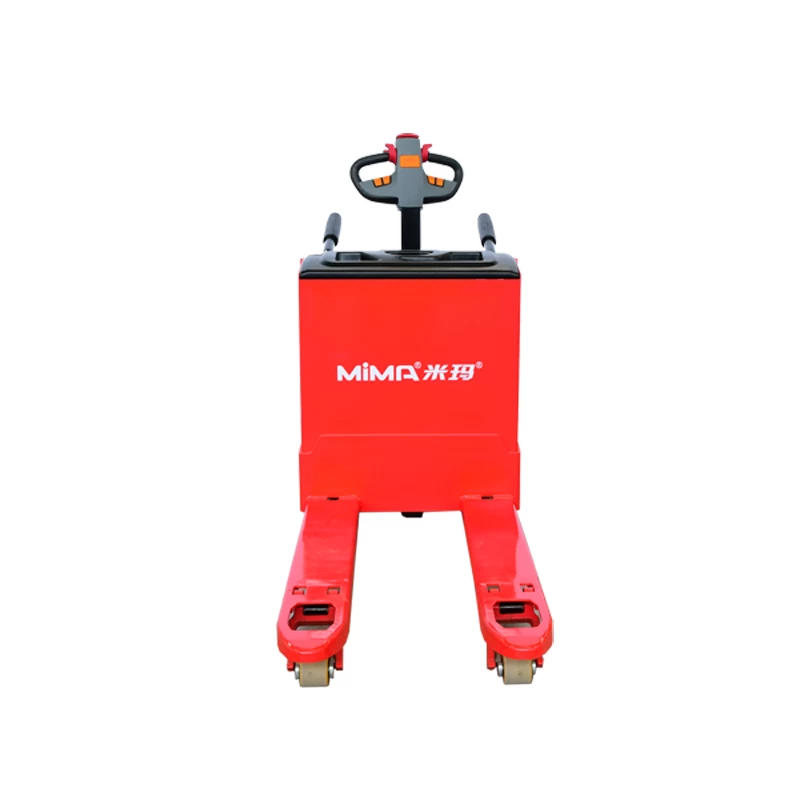

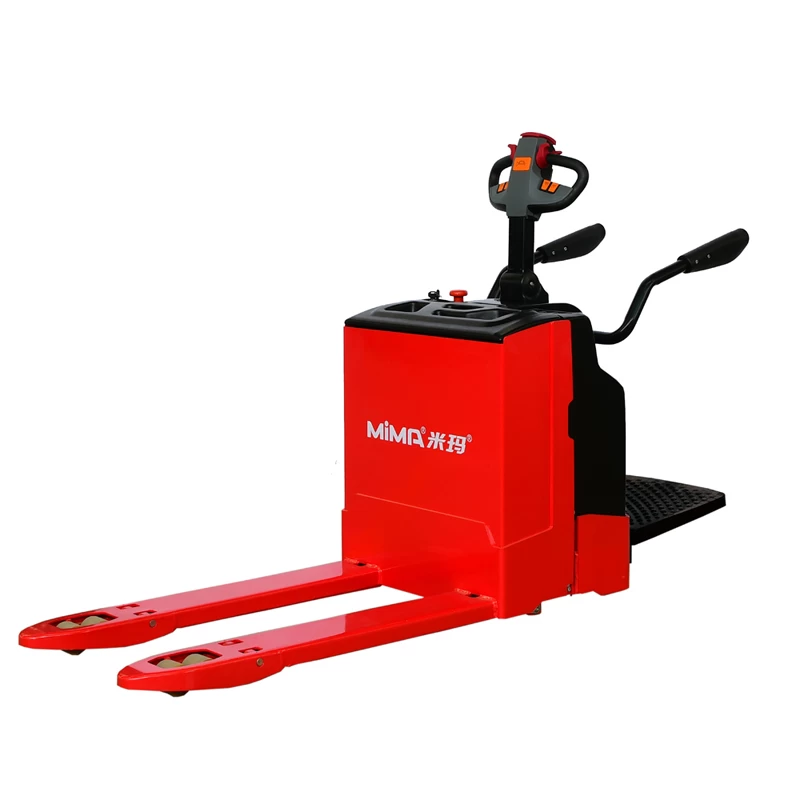

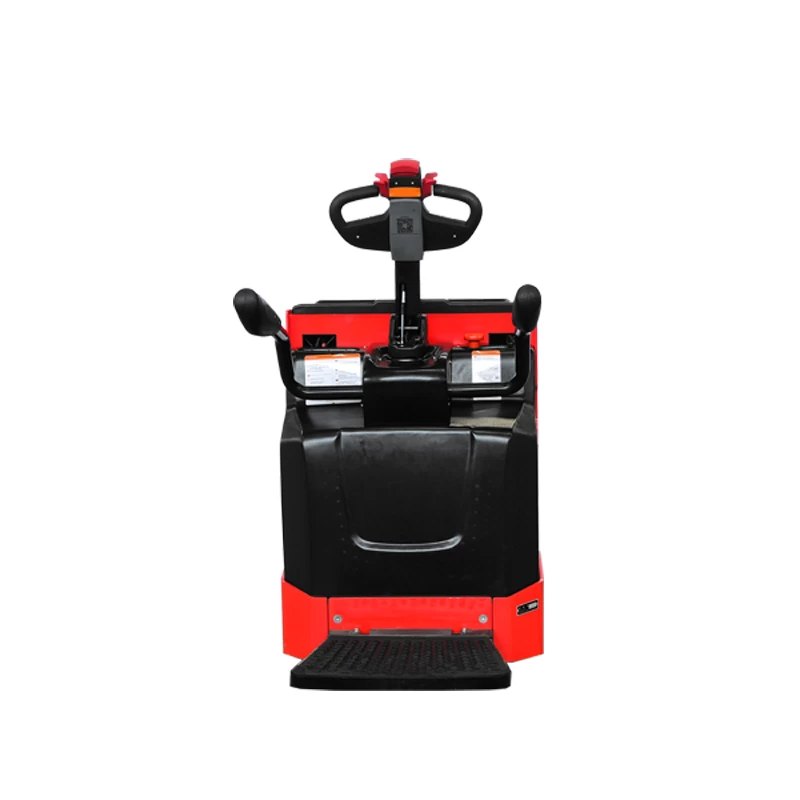

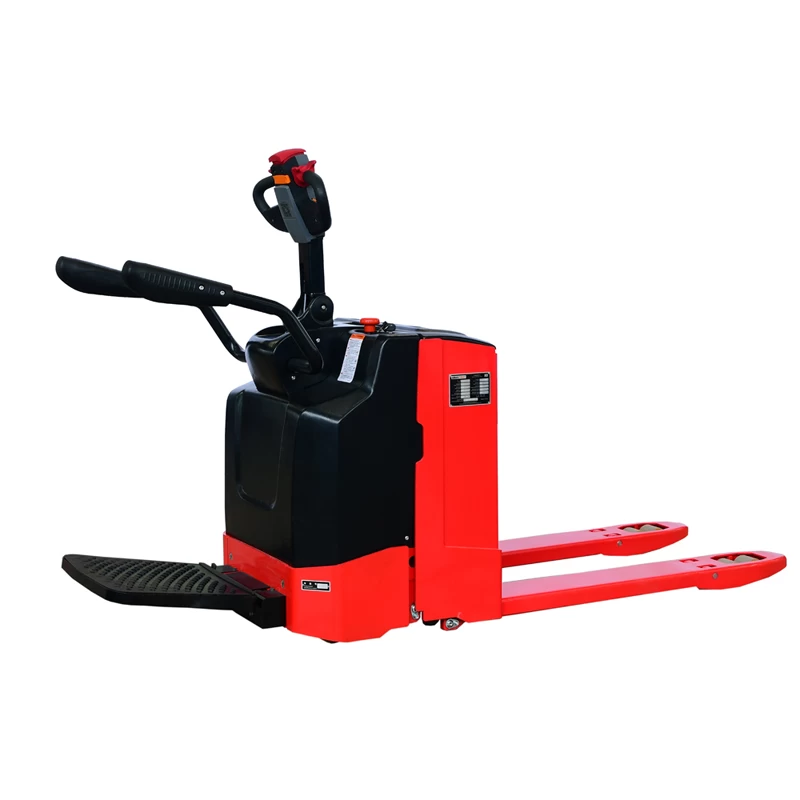

2.0-2.5T Pallet Jack with Curtis controller
Main Features:
1.Maintenance-free high-power AC drive system, providing reliable driving power; 210AH large-capacity battery, strong endurance;
2.Standard CURTIS series controller, reliable and durable; AMP waterproof and dust proof plug-in, which provides reliable protection for the line and greatly reduces electrical faults;
3.Station board type, pure electronic steering, integrated joystick, safe, labor-saving, flexible operation;
4.Tall rod lifting, parallel four-bar linkage mechanism, stable lifting; mechanical structure material is strong, the key parts are made of high-strength steel plate, which is sturdy and durable.
Specification:
|
Brand
|
|
MiMA
|
MiMA
|
|
Model
|
|
MEW15
|
MEW20
|
|
Power Type
|
|
Battery
|
Battery
|
|
Operation Type
|
|
Walkie
|
Walkie
|
|
Service weight(incl. battery)
|
kg
|
380
|
400
|
|
Rated Capacity
|
Q(kg)
|
1500
|
2000
|
|
Load Center
|
C(mm)
|
600
|
600
|
|
Lifting height
|
h3(mm)
|
115
|
115
|
|
Forks size
|
l/e/s(mm)
|
1150/160/45
|
1150/160/45
|
|
Front Overhang
|
x(mm)
|
969
|
969
|
|
Turning radius
|
Wa(mm)
|
1535
|
1535
|
|
Max. climbing ability
|
%(tanθ )
|
3/10
|
3/10
|
|
Driving speed(load/unload)
|
km/h
|
3.5/4
|
3.6/3.7
|
|
Lifting speed(load/unload)
|
mm/s
|
4
|
39/46
|
|
Lowering speed(load/unload)
|
mm/s
|
46/40
|
46/40
|
Products Features:
performance
● Station-plate with standard power distribution steering makes the control lighter and more flexible;
● The latest CURTIS AC control system provide precise and stable control, and higher efficiency.
Comfort
●The platform is equipped with a shock absorption design which greatly improves comfort and reduces the fatigue of long driving.
●It is simple and beautiful with integrated joystick. All operation functions can be easily completed with one hand.
safety
●It has three kinds of braking functions: release brake, reverse brake and emergency brake to ensure the safety of driving;
●The speed of the station-drive standard is automatically reduced with the increase of the steering angle.
Company Exhibition:
MiMA can offer you electric pallet truck, pallet stacker, counterbalance stacker,reach truck, stand-on reach truck, seated reach truck, reach stacker, electric counterbalance forklift truck, counter balance forklift, tow tractor, order picker, narrow aisle forklift, 4-direction reach truck, 3-way pallet stacker(VNA), multi-direction forklift, special forklift, AGV and other customized types for options, which can provide our customers with logistics handling solutions from 500kg to 100,000kg. Due to product serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.
Certification:
FAQ:
Q1: Are you electric pallet jack factory?
A1: Yes, we are the professional manufacturer of electric pallet jack for more than 20 years.
Q2: How about the delivery time?
A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM service?
A4: Yes.
