2.0 Inch IPS 240(RGB)*320 vertical lcd screen

WM020MO001QV-A is a 2.0 inch IPS high resolution 240RGB320 LCD module with 250 nits brightess.



2.0 Inch IPS 240(RGB)*320 vertical LCD screen

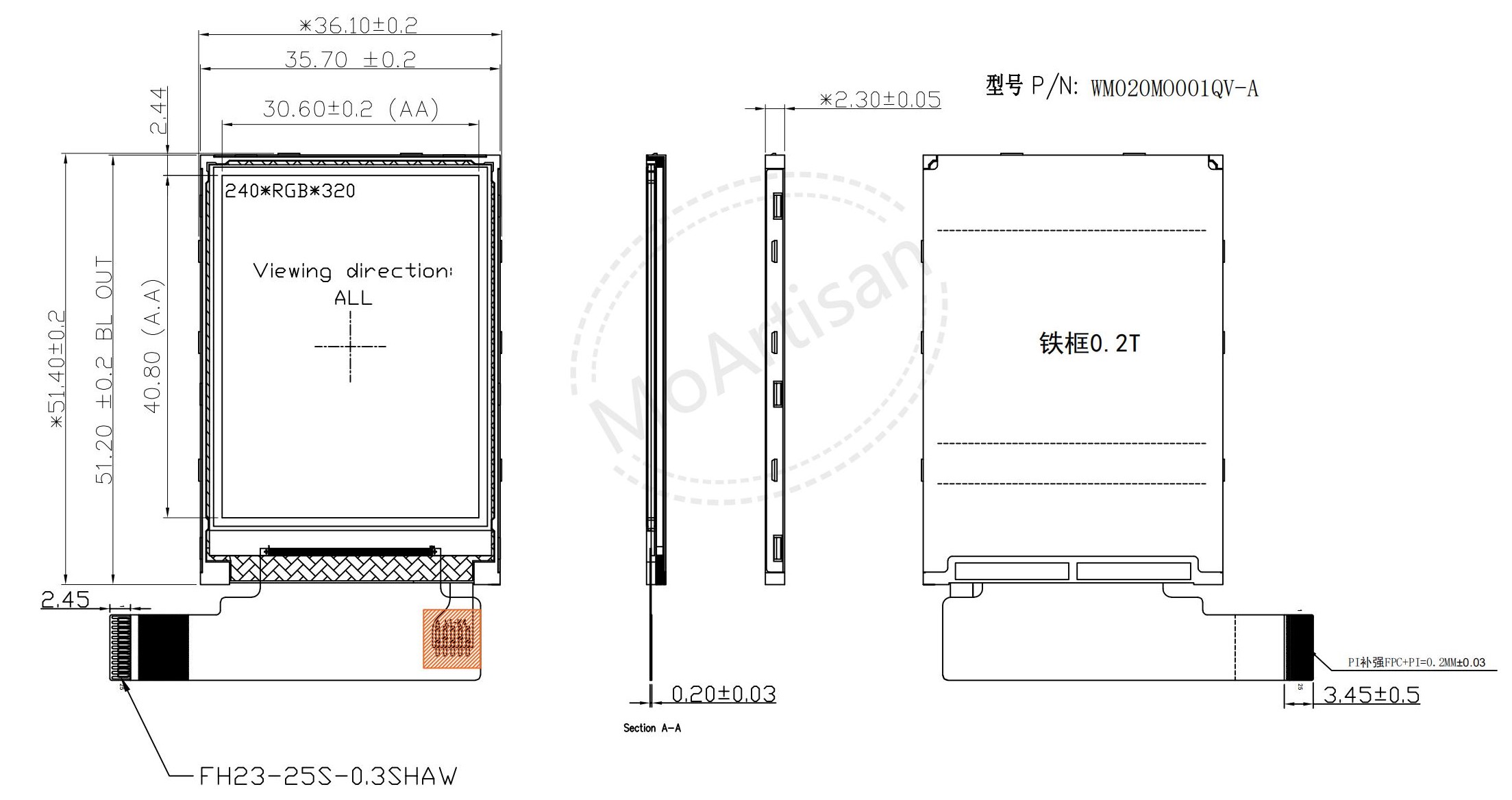

WM020MO001QV-A Drawings


2.0 Inch IPS tft QVGA high resolution module Drawings




WM020MO001QV-A Introduction


  • 2.0 inch diagonally measured active display area.
  • QVGA (240 horizontal by 320 vertical pixel) resolution.
  • IPS panel full view angle and high resolution LCD.
  • lcm's surface brightness 250 nits.
  • 25 PIN FPC, CPU interface.



About Part Number WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module; MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Module+PCAP+PCB…; 001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions


 Size

Description

LCM Outline

mm

LED L/T

(Hrs)

Interface

Brightness/CR

Temperature Range (°C)

Viewing Angle U/D/L/R

LCM P/N

2.0

QVGA, 240RGB320, IPS, Portrait view LCD Screen

35.7*51.2*2.3

4*1 LED (50K)

25 Pin FPC,

8-Bit, CPU

250 Nits/800

Topa:

 -20~+70 Tstg:

 -30~+80

80/80/80/80

WM020MO001QV-A


Product Applications

Personal Navigation Device, Multimedia applications and Others AV System.

Product Customized
This kind of product can be customized.
Lead time for samples: 3~4 Weeks.



FAQ:

How do you guarantee the quality of your products?

Answer:


  • All selected parts must comply with EU RoHS requirements.
  • The quality management system of the company has passed ISO9001:2015 certification, complying with ISO standards and continuous improvement.
  • Subcontractor's parts are fully inspected before going online.
  • Semi-finished product and finished product 100% appearance and function testing.
  • The display module is stored after the corresponding aging test.
  • LED backlight factory homemade and has the core heat dissipation technology.
  • Continuous reliability testing.Include in high, low temperature, high humidity environment storage test.Some products have undergone 500 hours of double 85 run tests.
  • PCAP ( touch panel) through the IK explosion-proof test, water resistance to touch test, gloves touch test, etc. according to customer.
