PRODUCT: PVC coated fabric conveyor belt,P-20XS
Main Feature

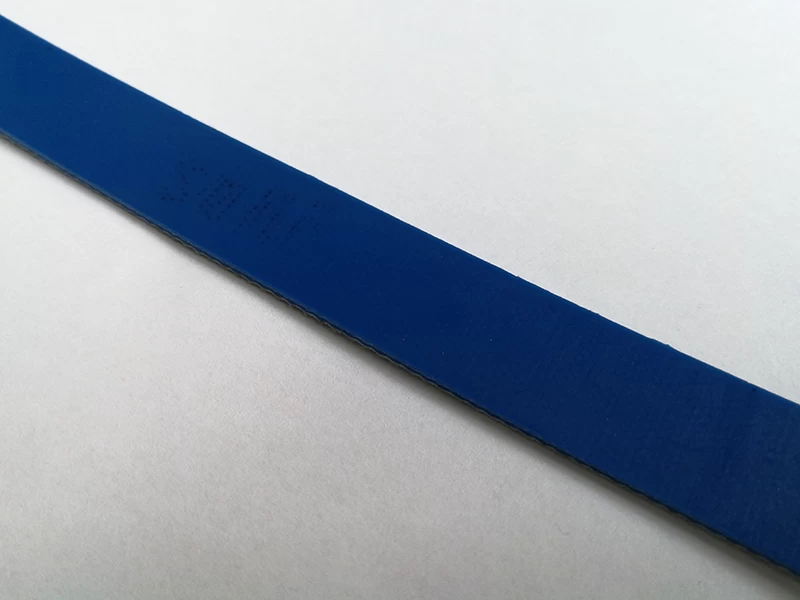

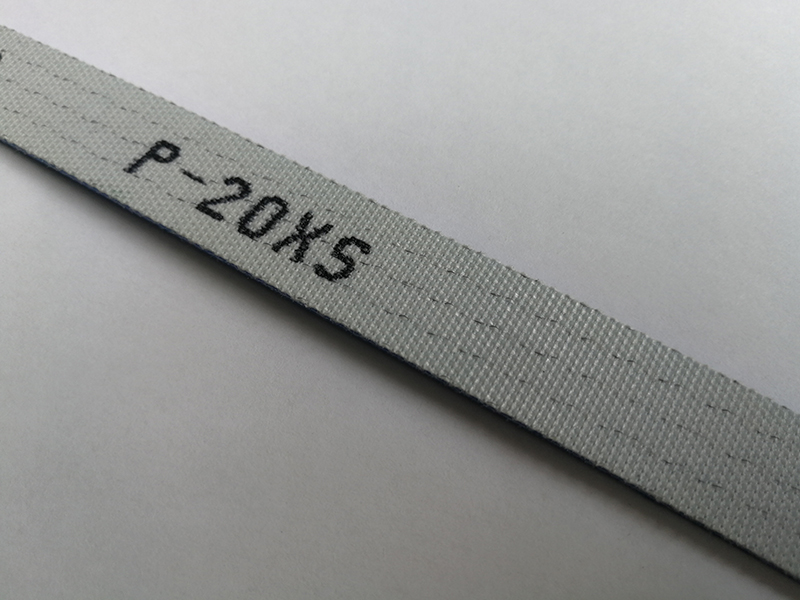

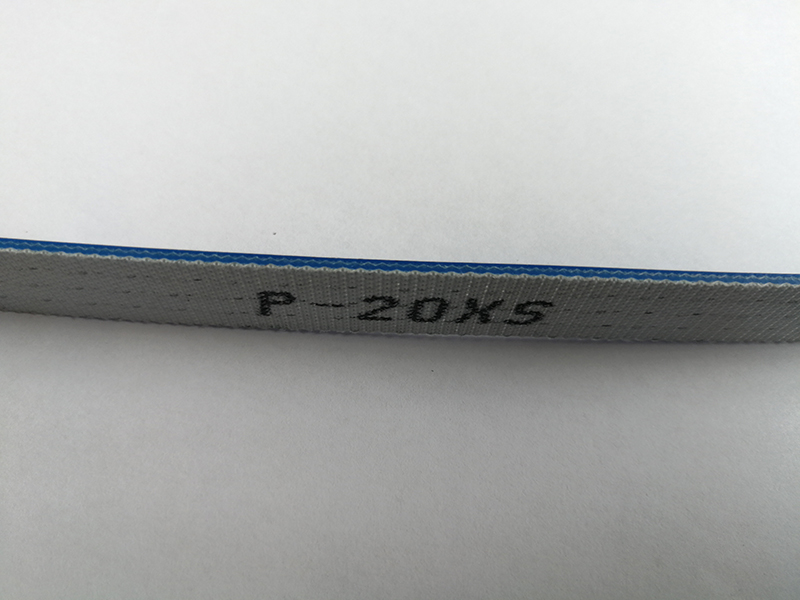

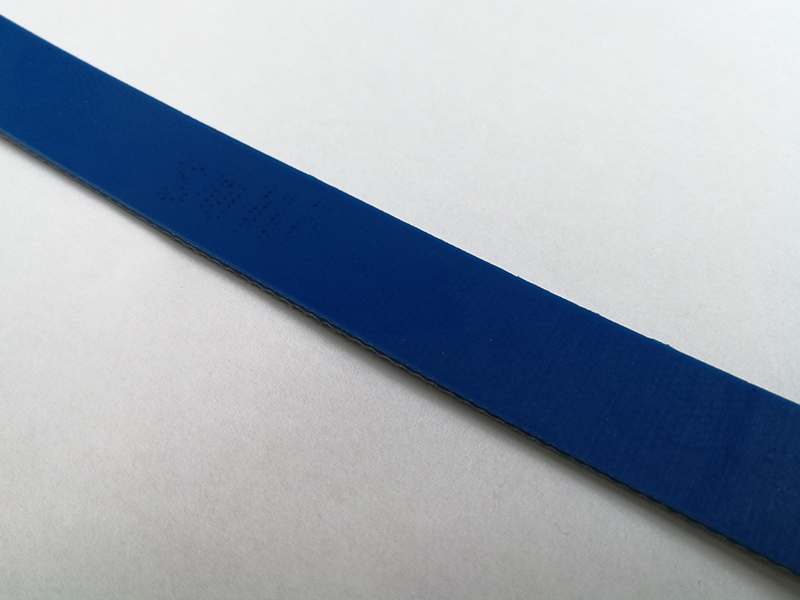

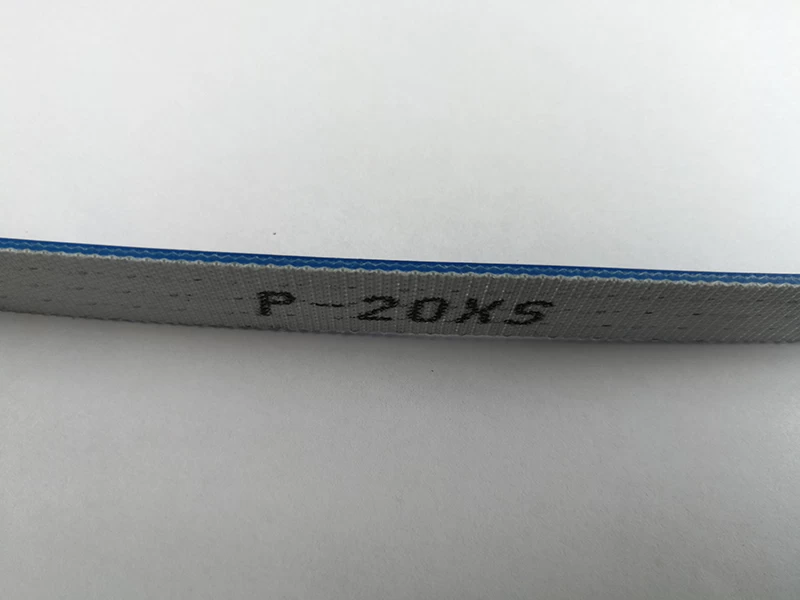

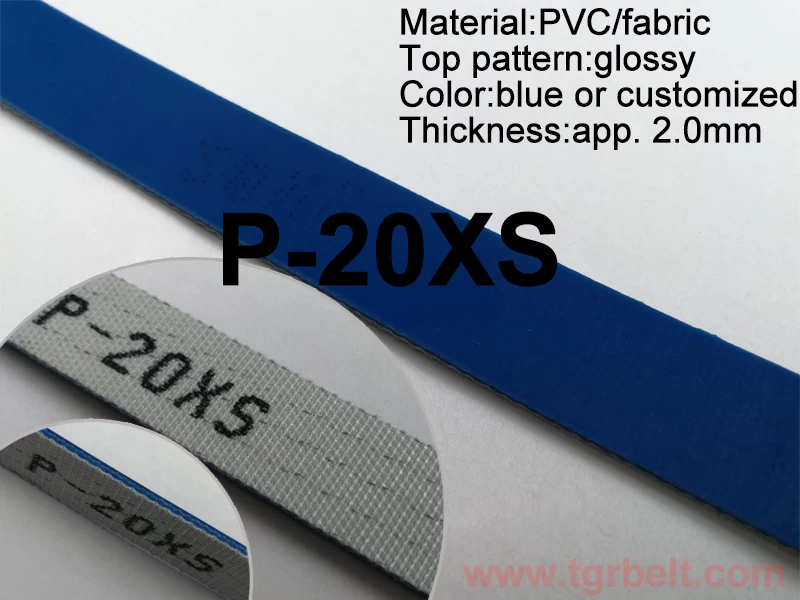

2.0mm blue glossy PVC conveyor belt is blue color,anti-static,a popular belt type in application. Glossy top,can also be matt top.
Technical datas
|
Type
|
P-20XS
|
|
Belt thickness
|
2.0mm
|
|
Color
|
blue
|
|
Surface
|
glossy
|
|
Hardness top
|
55 shore
|
|
Weight
|
2.2kg/m2
|
0.45 lbs./ft.2
|
|
Force at 1% elongation
|
8N/mm
|
44.79 lbs./in.
|
|
Temperature range
|
-15 to 80°C
|
5 to 176°F
|
|
Min. pulley diameter
|
40mm
|
1.57in.
|
|
Standard roll belt width
|
2000mm
|
78.74in.
|
|
Processing
|
cut to length or
endless ,perforations,welded guides on the bottom, and other special
processing requirement
|
Joint system example
Hot splicing with finger,fastener are always preferable.
Application
in overall industries
