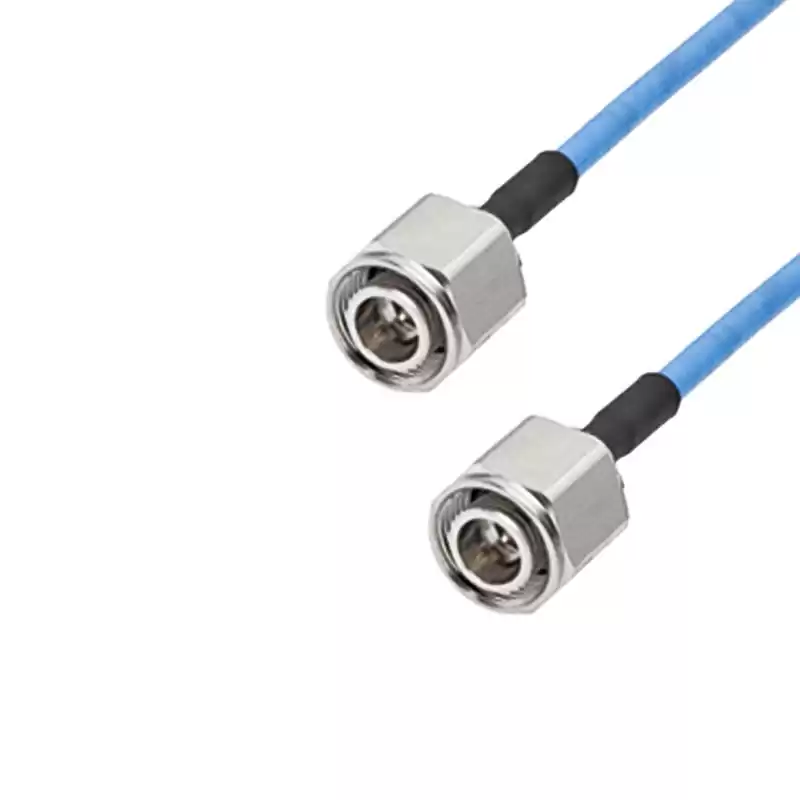

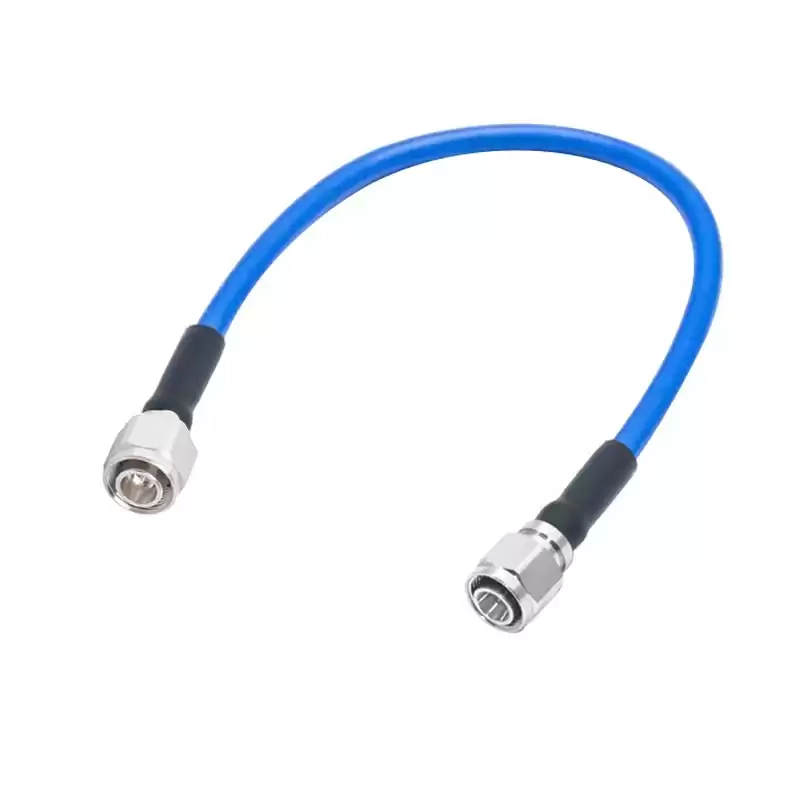

2.2-5 Male to 2.2-5 Male Cable Assembly with RG402 Cable
The 2.2-5 cable assembly can use flexible or corrugated coaxial cable such as 1/4" Superflexible, TFT402; the body of 2.2-5 to 2.2-5 cable assembly is right angle or straight connectors which is female to female, male to female or male to male gender. ROHO's 2.2-5 to 2.2-5 cable assembly is a low Pim cable. This 2.2-5 male to 2.2-5 male cable assembly uses a 50ohm straight 2.2-5 for connector 1 and a 50ohm straight 2.2-5 for connector 2, Cable is 50ohm RG402.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
2.2-5 |
| Connector 1 Style |
Str Male |
| Cable Type |
RG402 |
| Connector 2 Series |
2.2-5 |
| Connector 2 Style |
Str Male |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
Yes |
| Max Frequency |
6GHz |
| Working Temperature |
-65°C to +165°C |
| ELECTRICAL DATA |
|
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Multi-Carrier Communication Systems
- Low PIM Applications
- Distributed Antennas Systems (DAS)
- Outdoor Installations
- Small Cell
