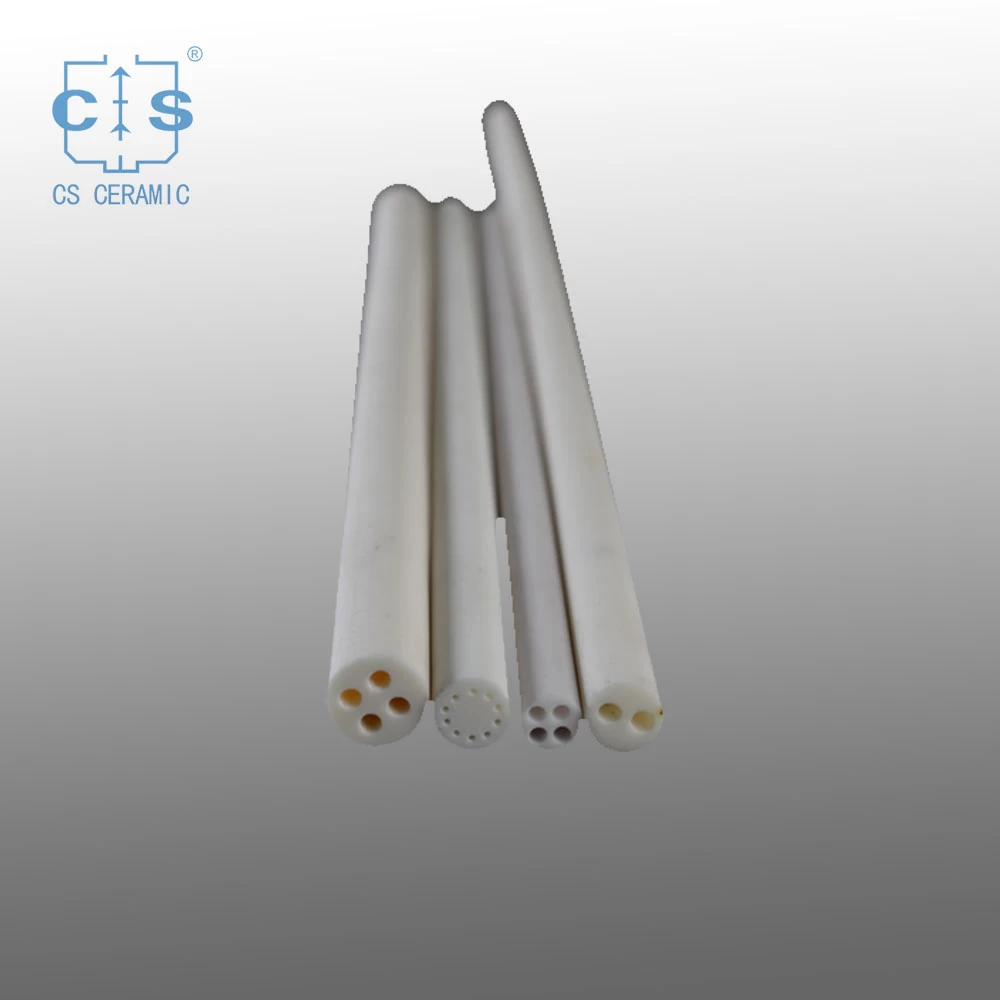

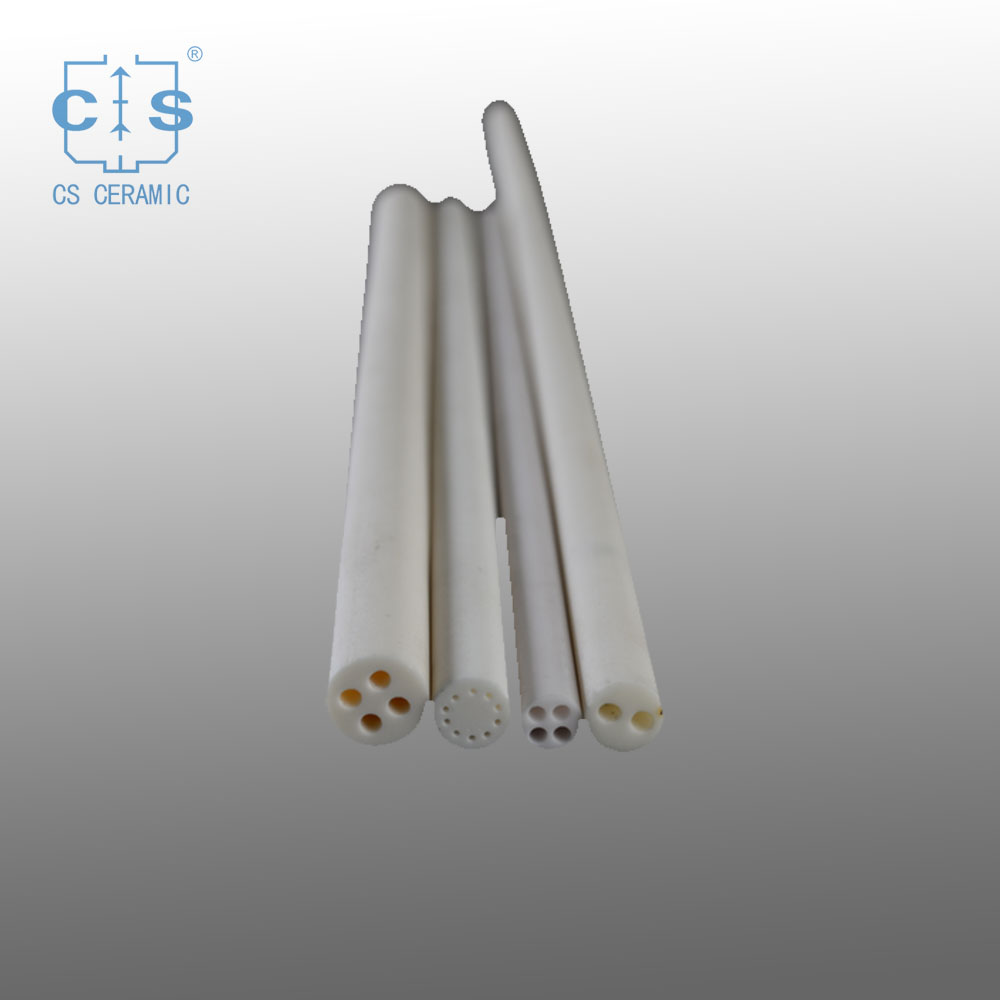

Product Item: 2/4 hole Ceramic Alumina Insulation Thermocouple Protection Tube
Size :
|

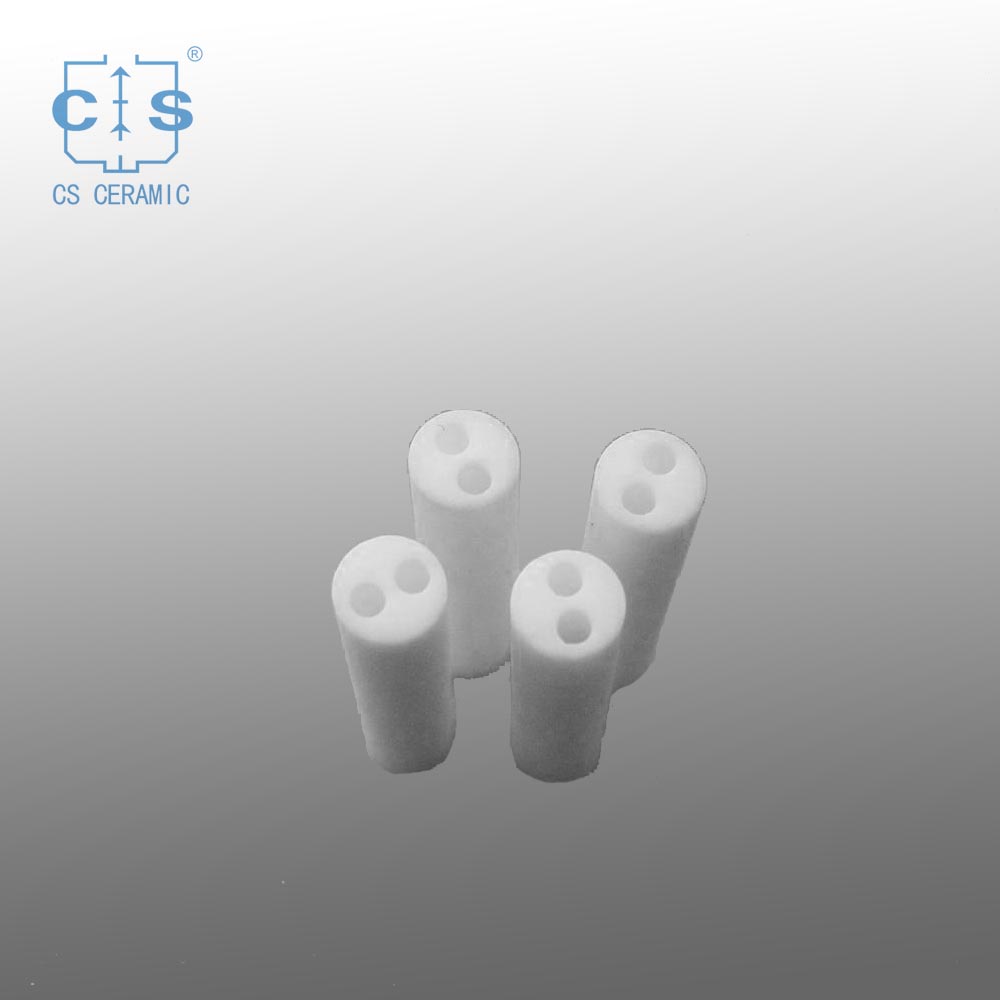

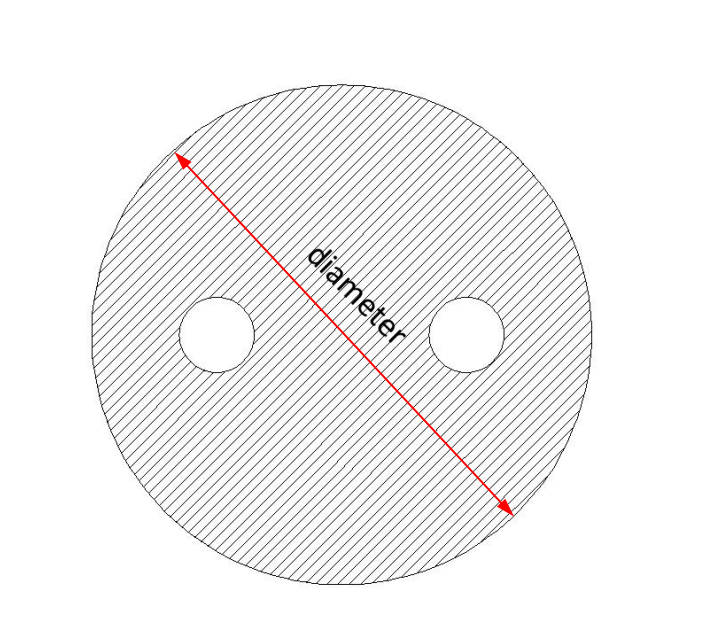

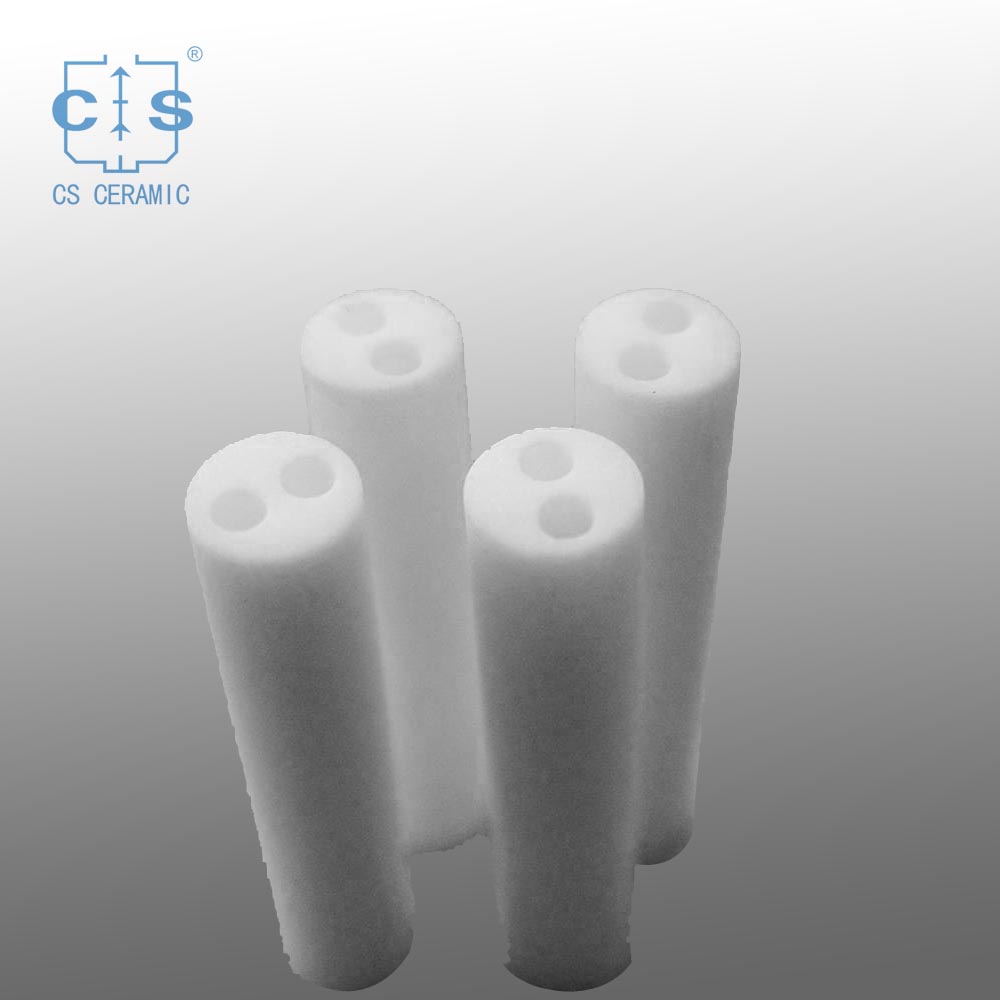

2 hole Alumina Insulation Thermocouple Protection Tube
|
|
Item NO.
|
outer diameter * bore diameter (mm)
|
Length/Purity Available
|
Item NO.
|
outer diameter * bore diameter (mm)
|
Length/Purity Available
|
Item NO.
|
outer diameter * bore diameter (mm)
|
Length/Purity Available
|
|
CS-AT-112
|
1.0*0.3
|
L≤2500mm Al2O3=95% Al2O3=99% Al2O3=99.5%
|
CS-AT-122
|
3.5*1.0
|
L≤2500mm Al2O3=95% Al2O3=99% Al2O3=99.5%
|
CS-AT-132
|
6.5*2.0
|
L≤2500mm Al2O3=95% Al2O3=99% Al2O3=99.5%
|
|
CS-AT-113
|
1.2*0.3
|
CS-AT-123
|
4.0*1.2
|
CS-AT-133
|
8.0*2.0
|
|
CS-AT-114
|
1.4*0.4
|
CS-AT-124
|
4.0*1.5
|
CS-AT-134
|
8.0*2.4
|
|
CS-AT-115
|
1.5*0.4
|
L≤2500mm Al2O3=95% Al2O3=99% Al2O3=99.5%
|
CS-AT-125
|
4.5*1.2
|
CS-AT-135
|
8.5*2.6
|
|
CS-AT-116
|
2.0*0.3
|
CS-AT-126
|
5.0*1.2
|
CS-AT-136
|
10.0*2.7
|
|
CS-AT-117
|
2.0*0.5
|
CS-AT-127
|
5.0*1.5
|
CS-AT-137
|
16.0*4.9
|
|
CS-AT-118
|
2.0*0.6
|
CS-AT-128
|
5.5*1.5
|
|
|
|
CS-AT-119
|
2.5*0.7
|
CS-AT-129
|
5.5*1.8
|
|
|
|
CS-AT-120
|
3.0*0.7
|
CS-AT-130
|
6.0*1.8
|
|
|
|
CS-AT-121
|
3.5*0.8
|
CS-AT-131
|
6.5*1.8
|
|
|
|

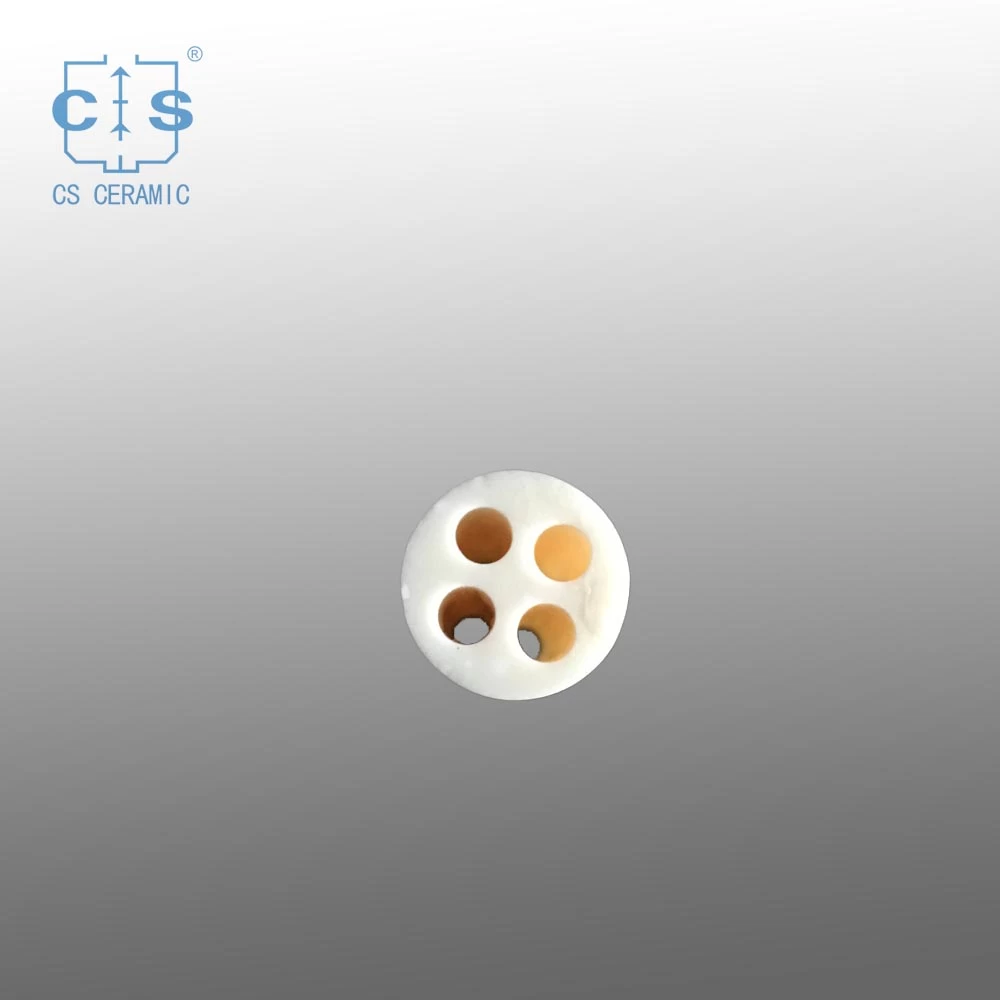

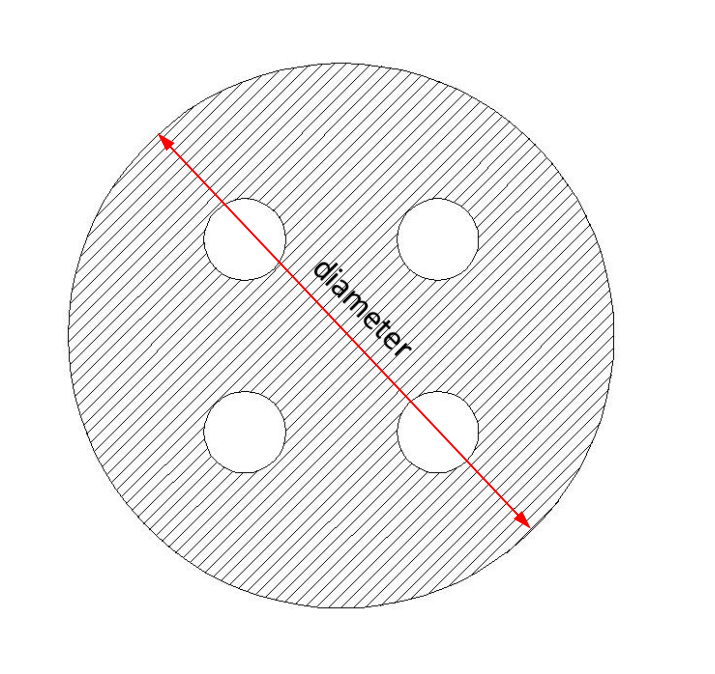

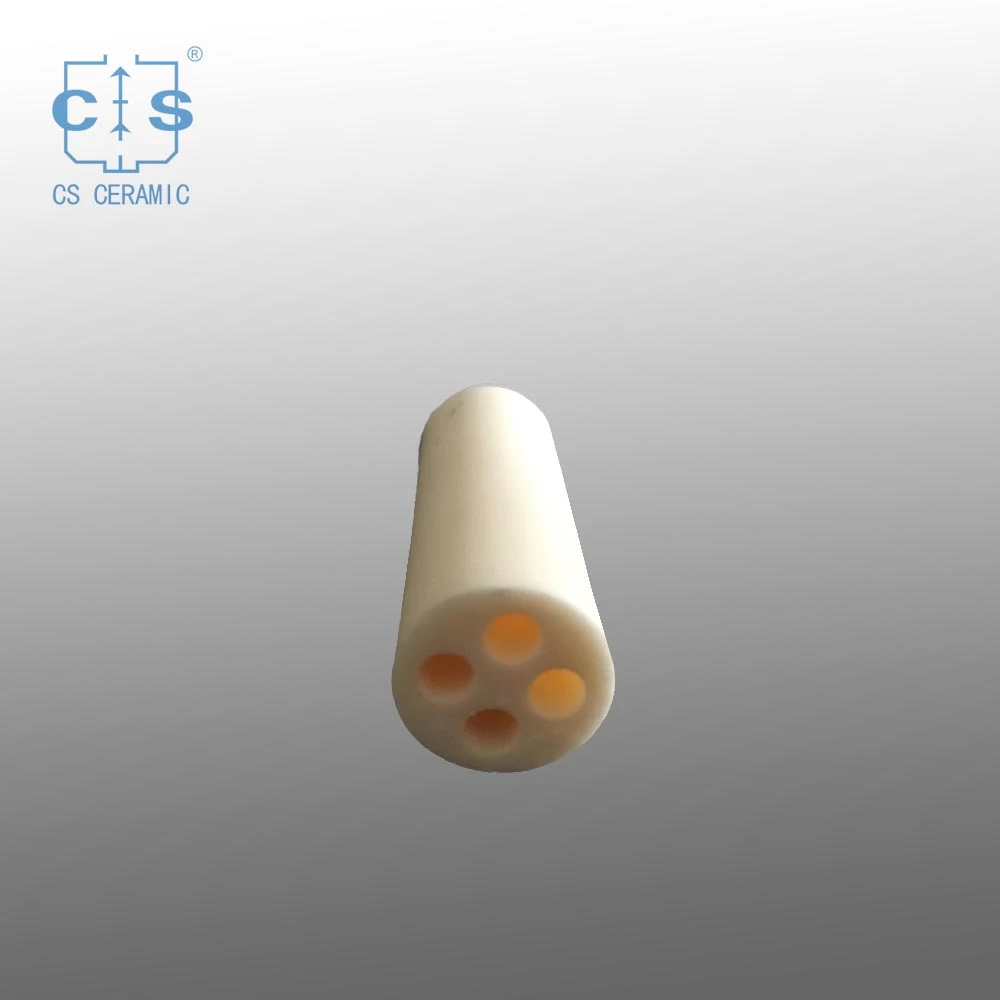

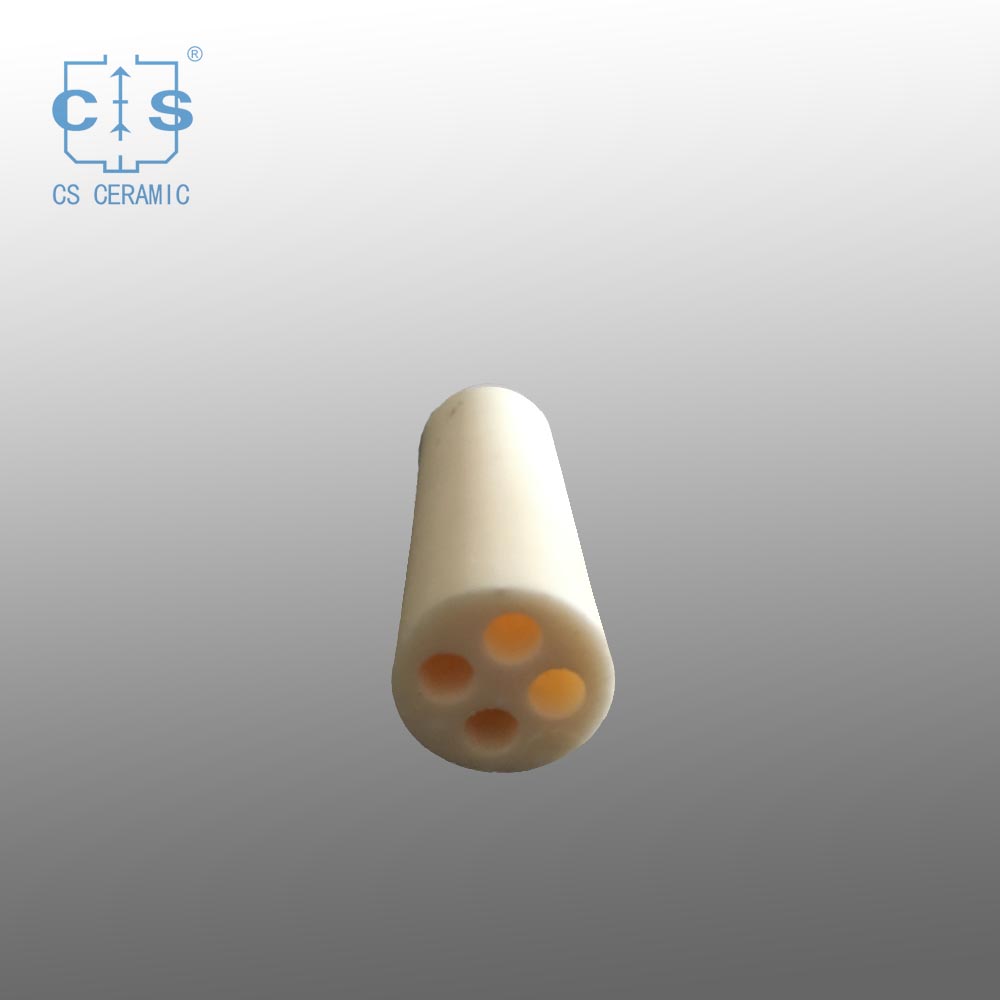

4 hole Alumina Insulation Thermocouple Protection Tube
|
|
Item NO.
|
outer diameter * bore diameter (mm)
|
Length/Purity Available
|
Item NO.
|
outer diameter * bore diameter (mm)
|
Length/Purity Available
|
Item NO.
|
outer diameter * bore diameter (mm)
|
Length/Purity Available
|
|
CS-AT-138
|
1.5*0.3
|
L≤2500mm Al2O3=95% Al2O3=99% Al2O3=99.5%
|
CS-AT-145
|
4.0*1.3
|
L≤2500mm Al2O3=95% Al2O3=99% Al2O3=99.5%
|
CS-AT-152
|
8.5*2.2
|
L≤2500mm Al2O3=95% Al2O3=99% Al2O3=99.5%
|
|
CS-AT-139
|
2.0*0.4
|
CS-AT-146
|
4.5*1.2
|
CS-AT-153
|
10.0*3.0
|
|
CS-AT-140
|
2.5*0.6
|
CS-AT-147
|
5.0*1.2
|
CS-AT-154
|
12.0*3.9
|
|
CS-AT-141
|
3.0*0.8
|
CS-AT-148
|
5.5*1.3
|
CS-AT-155
|
14.0*3.9
|
|
CS-AT-142
|
3.5*0.8
|
CS-AT-149
|
6.0*1.3
|
CS-AT-156
|
16.0*4.0
|
|
CS-AT-143
|
3.5*1.0
|
CS-AT-150
|
6.5*1.4
|
|
|
|
|
CS-AT-144
|
4.0*1.0
|
CS-AT-151
|
8.0*2.0
|
|
|
|
Typical Characteristics:
1. High Temperature Resistance
2. Good Thermal Stability
3. Excellent Dielectric Properties
4. Low Loss Tangent
5. High Mechanical Strength
Typical Applications:
1. Temperature Measurement and Control
2. Electrical Insulator

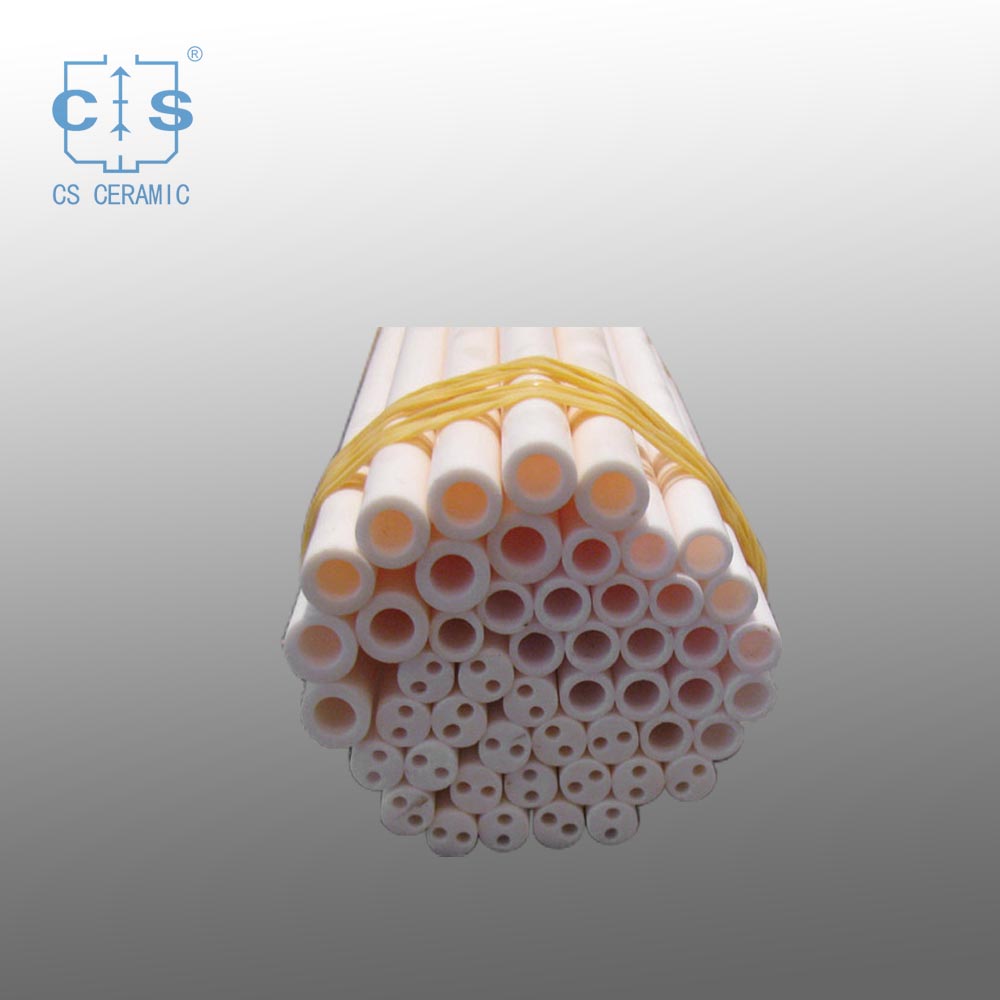

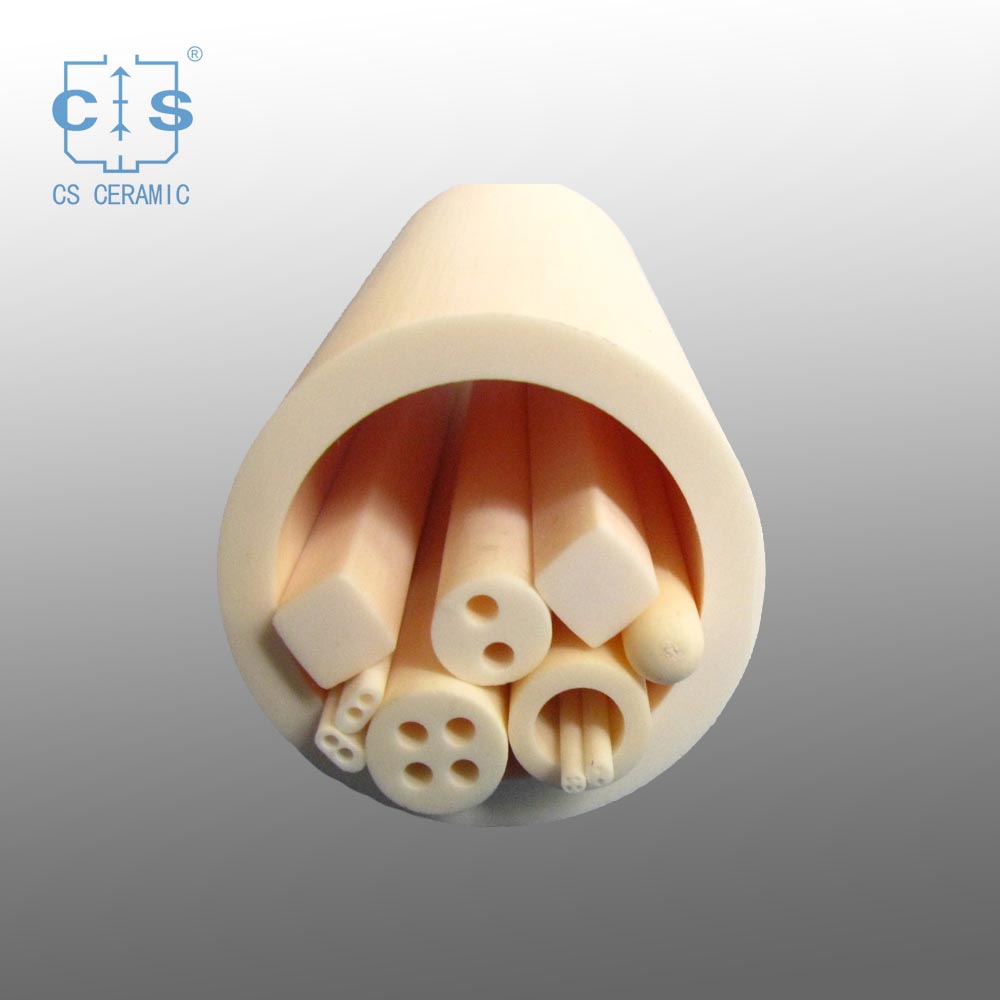

More shapes :
Shipping:
We do international shipping for clients.
Special offer:
Most of our Tubes are produced to OEM order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.More demensions of the crucibles for melting gold we have are as follows:
