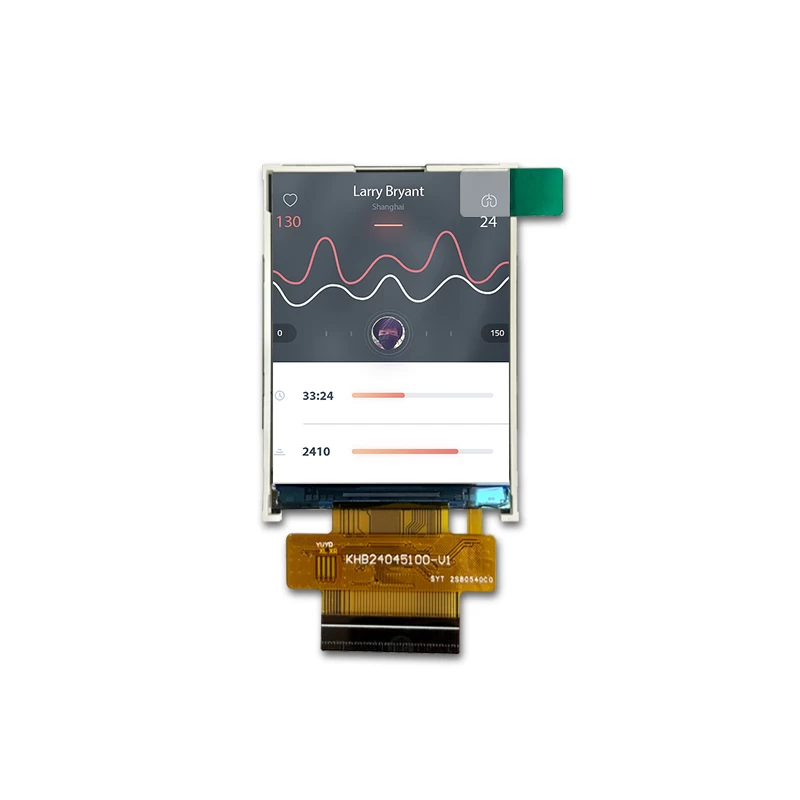

2.4 inch 240x320 TFT lcd display module with ST7789V

2.4'' TFT LCD module with ST7789V


Facebook Twitter Pinterest LinkedIn 分享
Specification
LCD type a-Si TFT,Transmissive,Normally white,TN
LCD Size 2.4 inch
Resolution(WxH) 240xRGBx320
LCM(WxHxD) 42.72(w)x60.26(H)x3.5(D)
Active Area(WxH) 36.72(w)x48.96(H)
Dot Pitch(WxH) 0.051(W)x0.153(H)
Viewing Direction 12 o'clock
Resolution QVGA 240*RGB*320
Viewing Direction 12o'clock
Gray Scale Inversion Direction 6 o'clock
Viewing Angle Top:55 Bottom:35;Left/Right:55
Color Depth 65K/262K
Pixel arrangement RGB Vertical Stripe
Backlight Type 4LEDs
Surface Luminance 304 cd/m2
Surface Treatment Anti-Glare
Driver IC ST7789VV
Interface Type MCU 8/16-bit
Input Voltage 2.8V
With/Withour TP without/with RTP
Weight 16.4g
