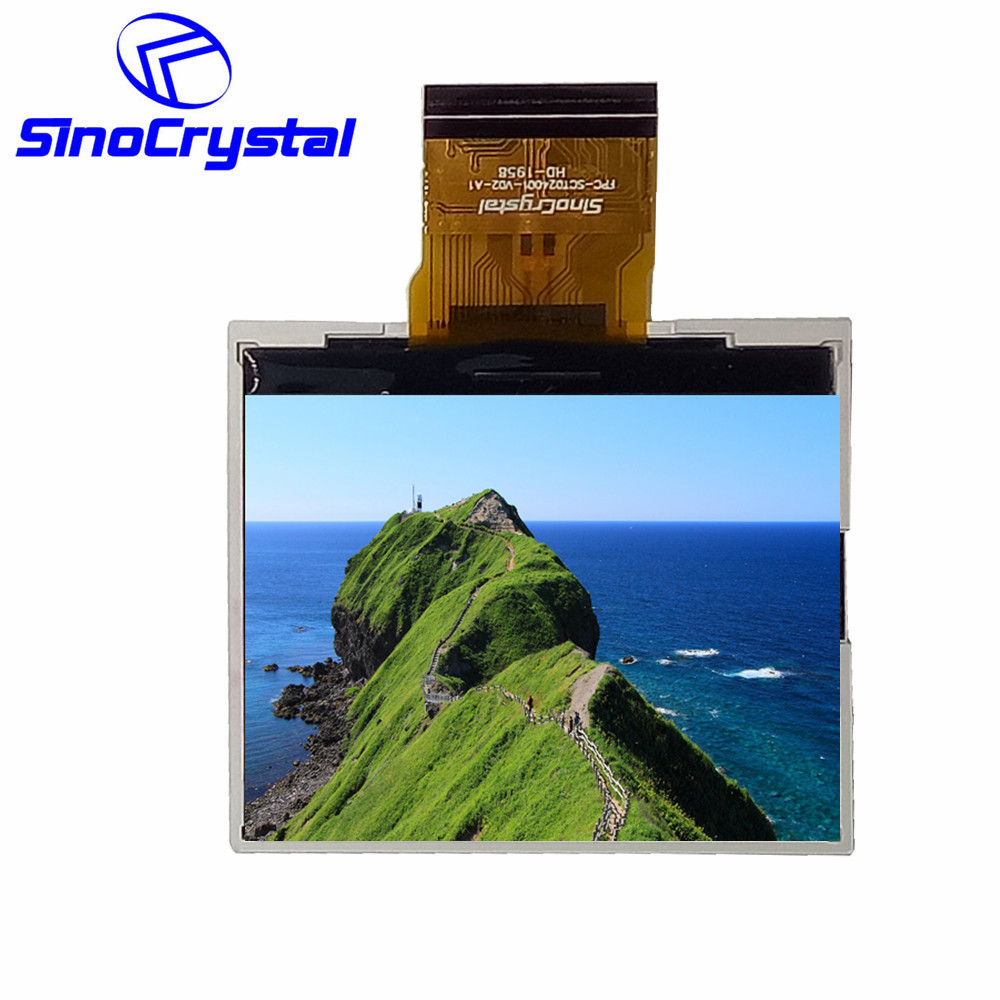

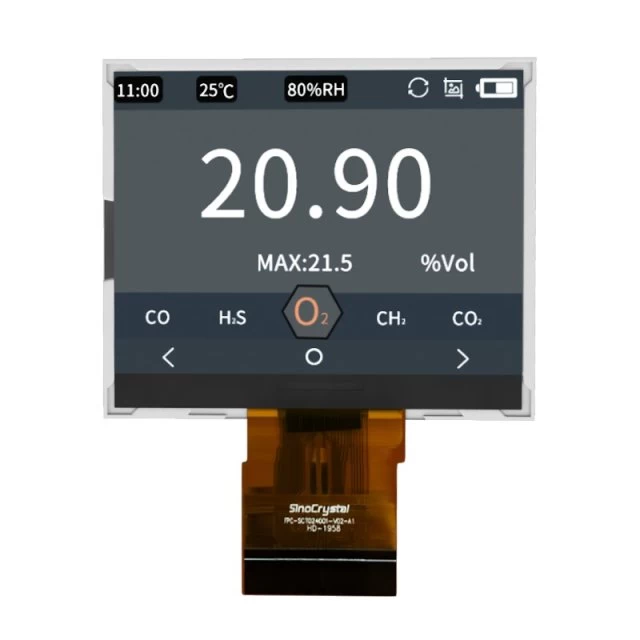

Basic Information
Resolution: 480*234
Outline Dimension: 55.20*47.55*2.80
Active Area: 48.00*35.685
View area: 49.00*36.68
Interface: 8bit RGB
Driver IC: OTA5182A
View Direction: 6 o'clock
PIN: 40
Backlight: White LED
Touch Screen: No touch screen with standard module, But can be added if customer needed.

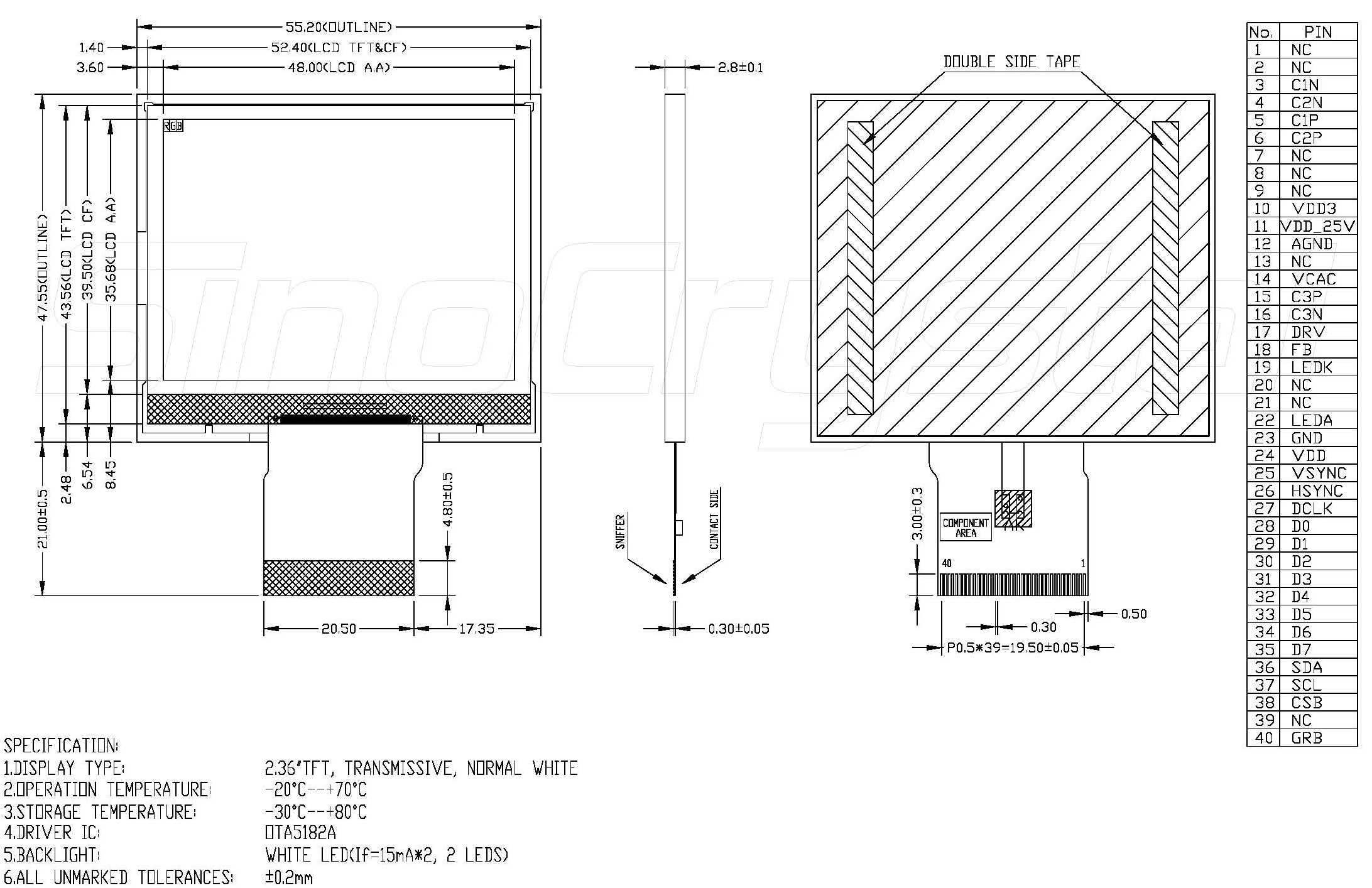

Drawing
General Specification
|
Item
|
Nominal Dimension
|
Unit
|
|
Dot Matrix
|
480 x 234
|
Dots
|
|
Module Size ( W×H×T )
|
55.2 x 47.55 x 2.8
|
mm.
|
|
Active Area ( W×H )
|
48.0 x 35.685
|
mm.
|
|
Pixel arrangement
|
RGB Delta Stripe
|
mm.
|
|
Color depth
|
262K(MAX)
|
colors
|
|
Interface
|
8 bit RGB
|
-
|
|
Driving IC Package
|
COG
|
-
|
|
Operating temperature
|
-20 ~70
|
ºC
|
|
Storage temperature
|
-30~80
|
ºC
|
|
LCD Type
|
a-Si TFT
|
-
|
|
LCD Mode
|
TN/Normal White
|
-
|
|
Backlight Type
|
LED x 2
|
PCS
|
Interface Definition
|
Pin No
|
Pin Symbol
|
Level
|
Description
|
|
1-2
|
NC
|
|
|
|
3
|
C1N
|
-
|
Pins to connect capacitors for power circuitry
|
|
4
|
C2N
|
-
|
Pins to connect capacitors for power circuitry
|
|
5
|
C1P
|
-
|
Pins to connect capacitors for power circuitry
|
|
6
|
C2P
|
-
|
Pins to connect capacitors for power circuitry
|
|
7--9
|
NC
|
|
|
|
10
|
VDD3
|
-
|
Intermediate voltage for charge pump
|
|
11
|
VDD_25V
|
-
|
Intermediate voltage for charge pump
|
|
12
|
AGND
|
-
|
Power ground
|
|
13
|
NC
|
|
|
|
14
|
VCAC
|
-
|
Intermediate voltage for charge pump
|
|
15
|
C3P
|
-
|
Pins to connect capacitors for power circuitry
|
|
16
|
C3N
|
-
|
Pins to connect capacitors for power circuitry
|
|
17
|
DRV
|
-
|
Gate signal for the power transistor of the boost converter
|
|
18
|
FB
|
-
|
Main boost regulator feedback input
|
|
19
|
LEDK
|
-
|
LED backlight Cathode
|
|
20-21
|
NC
|
|
|
|
22
|
LEDA
|
-
|
Supply voltage for LED backlight Anode
|
|
23
|
GND
|
-
|
Power ground
|
|
24
|
VDD
|
-
|
Power supply for analog(1.8V-3.6V)
|
|
25
|
VSYNC
|
H/L
|
Frame synchronizing
|
|
26
|
HSYNC
|
H/L
|
Line synchronizing
|
|
27
|
DCLK
|
H/L
|
Data clock
|
|
28-35
|
D0-D7
|
H/L
|
Data input
|
|
36
|
SDA
|
H/L
|
Serial data input
|
|
37
|
SCL
|
H/L
|
Serial clock input
|
|
38
|
CSB
|
H/L
|
Serial chip select, Low enable
|
|
39
|
NC
|
|
|
|
40
|
GRB
|
H/L
|
Global reset pin
|
