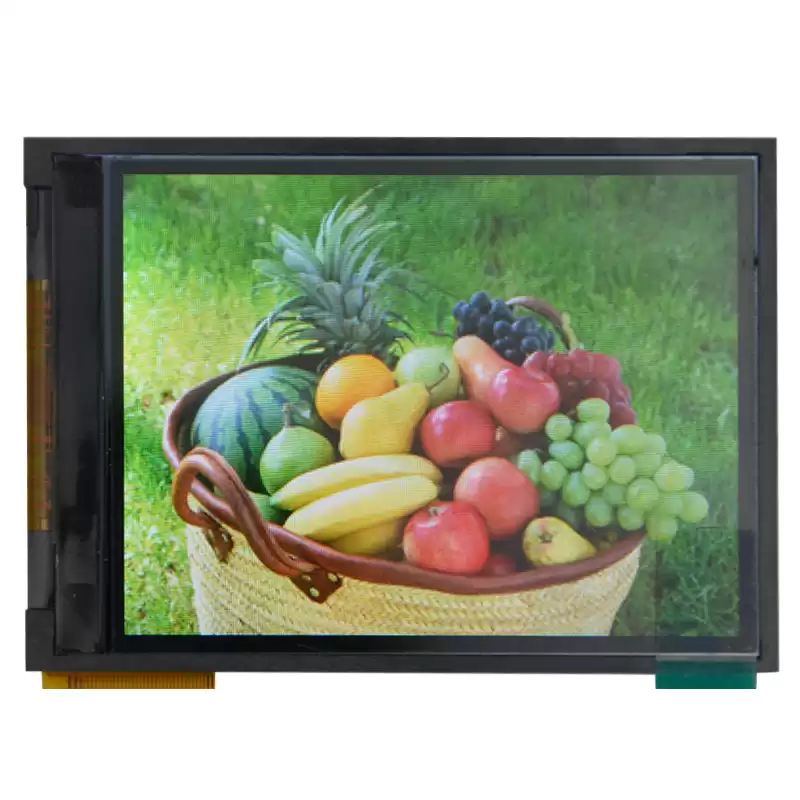

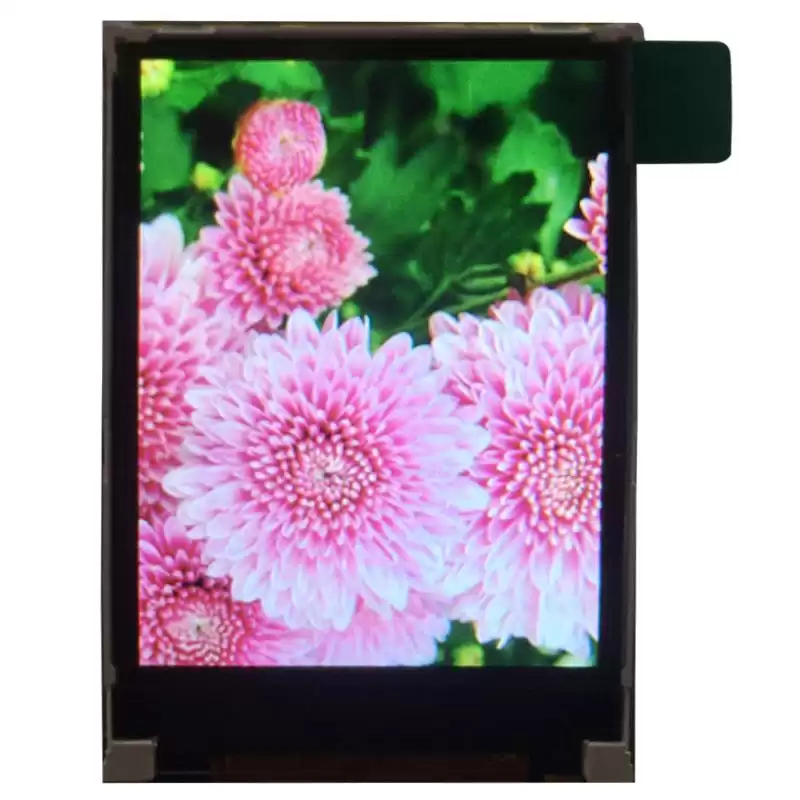

2.4 Inch IPS 240(RGB)*320 module visible when wearing sunglasses

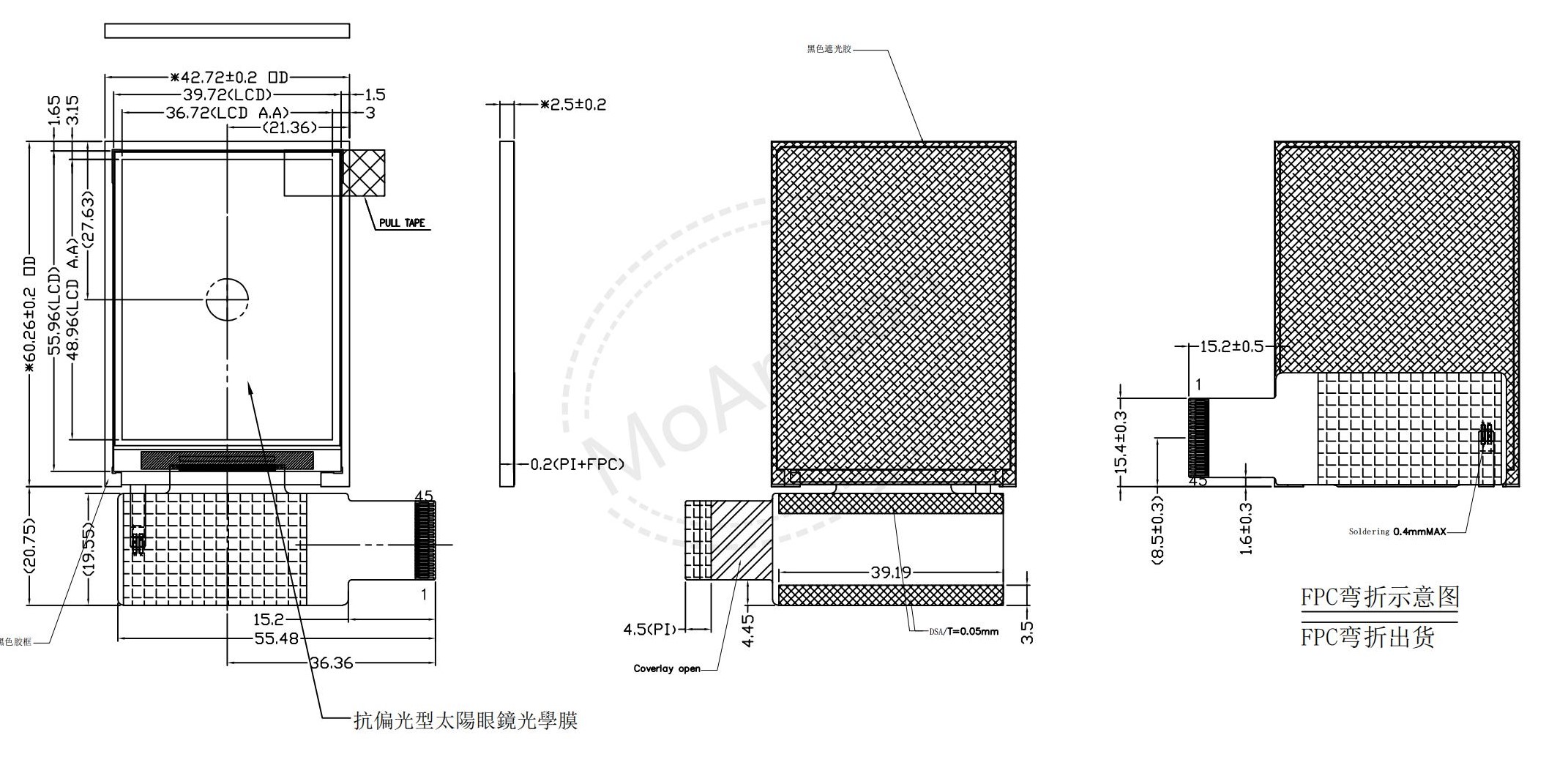

Production Drawings
WM024MO008QV-C Introduction
-
2.4 inch diagonally measured active display area.
-
QVGA (240 horizontal by 320 vertical pixel) resolution.
-
Image can be visible when wearing a pair of sunglasses.
-
lcm sueface brightness 800 nits.
-
45 PIN FPC, RGB/CPU interface.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO/Module;
MR/Module+RTP; MC/Module+PCAP; MP/Module+PCB; CP/Moudule+PCAP+PCB…; 001---Serial
Number; QV\WV\WX\XG…---Format Solution; A\B\C...---Versions
|
|
|
Size
|
Description/描述
|
LCM Outline模组外形mm
|
LED L/T寿命(Hrs)
|
Interface接口
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
2.4
|
QVGA, 240*RGB*320, ips, portrait view lcd screen
|
42.72*62.26*2.5
|
2*3 LED (50K)
|
45 PIN FPC, 18-Bit, RGB/CPU
|
800 nits/800
|
Topa: -20~+70 Tstg:
-30~+80
|
80/80/80/80
|
WM024MO008QV-C
|
Production Applications
Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of production can be customized.
Lead time for samples: 3~4 weeks.
FAQ
LCD characters can not be seen through sunglasses, why is it?
Answer
First of all, the light on the surface of the LCM is modulated by a polarizing plate, namely it is polarized light.
At the same time, it is also polarized light that natural light going through the sunglasses.
When the two polarized light direction is not parallel, maybe at a certain angle, the light reaching the human eyes will be reduced, even disappeared.
That's the reason you can't see the display image through a pair of sunglasses.
