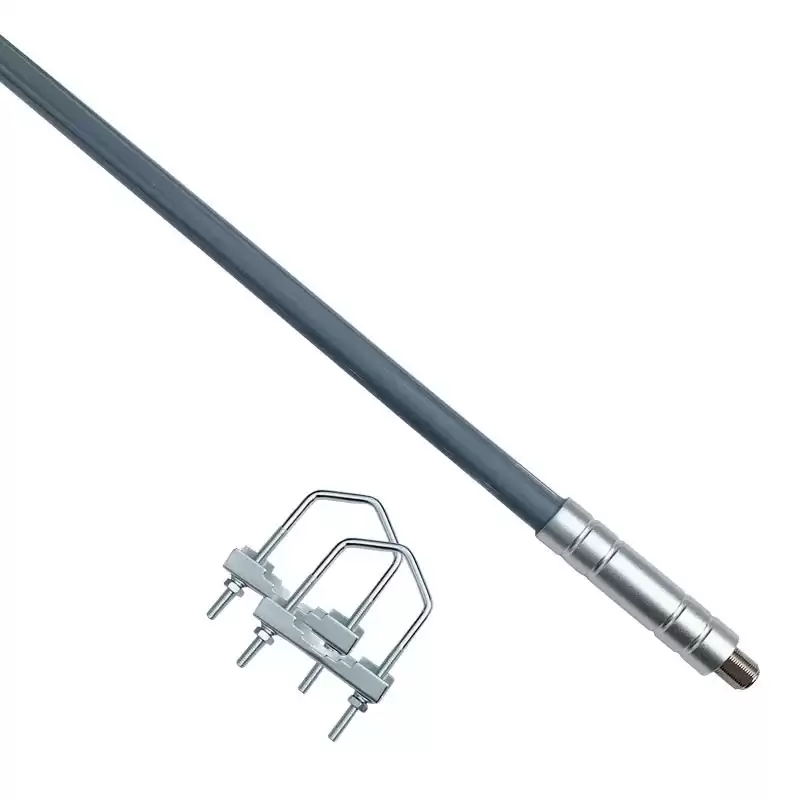

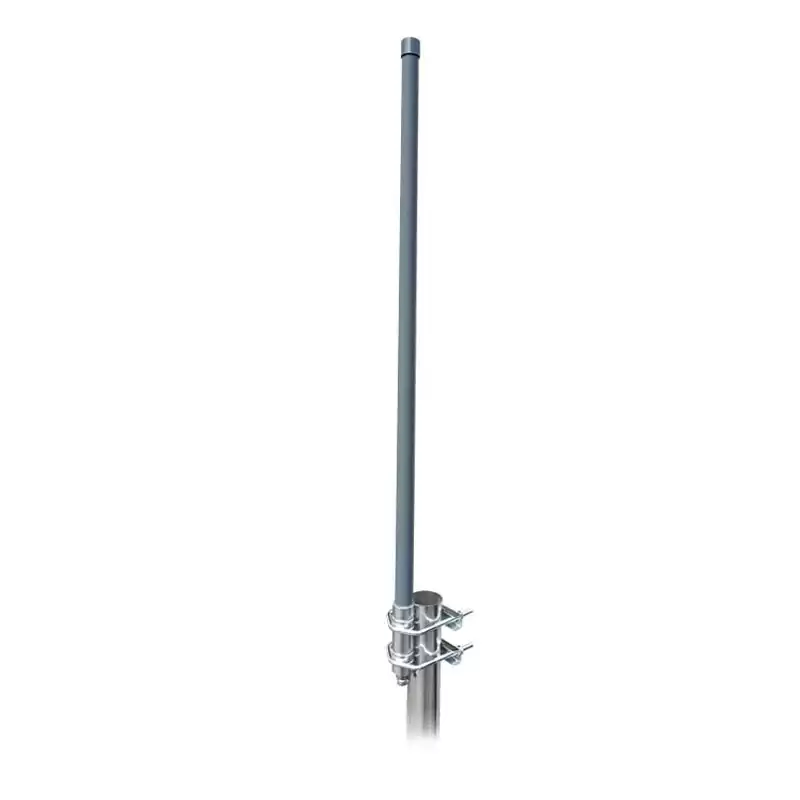

2.4GHz 3-15dBi Outdoor Omni Direction N Female Connector Pole Mount Fiberglass Antenna for Wireless WLAN WIFI System

Features:

  • Radiation Pattern of Antenna;
  • Polarization of Antenna;
  • Intensity of Radiation;
  • Effective Aperture;
  • Gain & Directivity;
  • Bandwidth;
  • Power Gain & Radiation Efficiency;
  • Effective Length;
  • Input Impedance.



2.4GHz 3-15dBi Outdoor Omni Direction N Female Connector Pole Mount Fiberglass Antenna for Wireless WLAN WIFI System

The Antenna, also called Aerial, component of radio, television, and radar systems that directs incoming and outgoing radio waves. Antennas are usually metal and have a wide variety of configurations, from the mastlike devices employed for radio and television broadcasting to the large parabolic reflectors used to receive satellite signals and the radio waves generated by distant astronomical objects.



Specifications

ELECTRICAL DATA
Frequency Range(GHz)  2.4
VSWR  ≤1.5
Gain(dBi)   3-15dBi
Input Impedance(Ω)  50
Cable Type  /
Connector Type  N Female

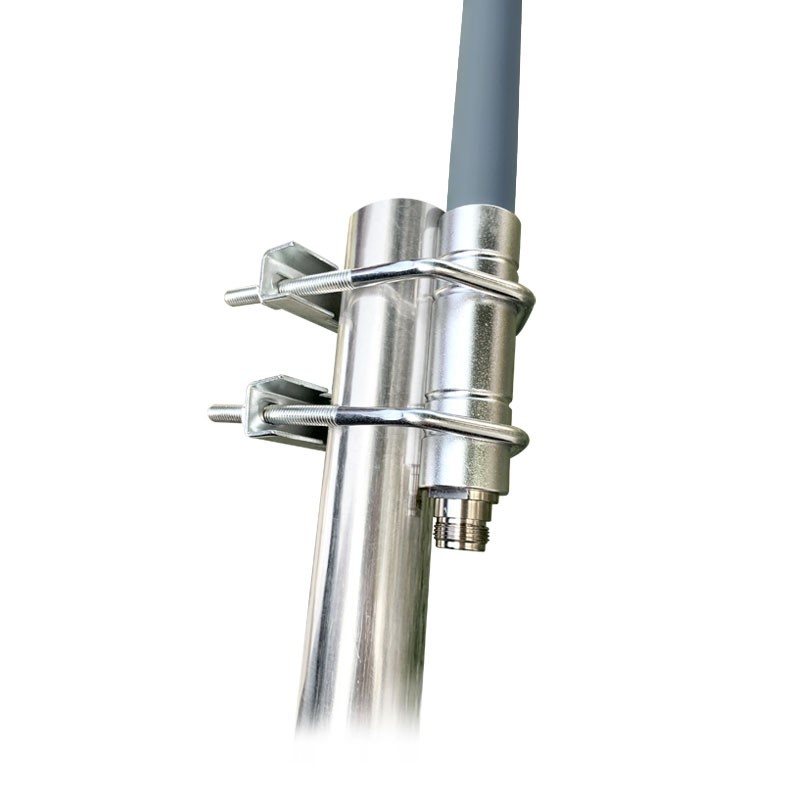

Mounting  Pole
Housing Fiberglass
Storage Temperature  -45'c to +75'c
Operating Temperature  -45'c  to+75'c



Applications

  • Antenna Gain
  • Aperture
  • Directivity and bandwidth
  • Polarization
  • Effective length
  • Polar diagram
