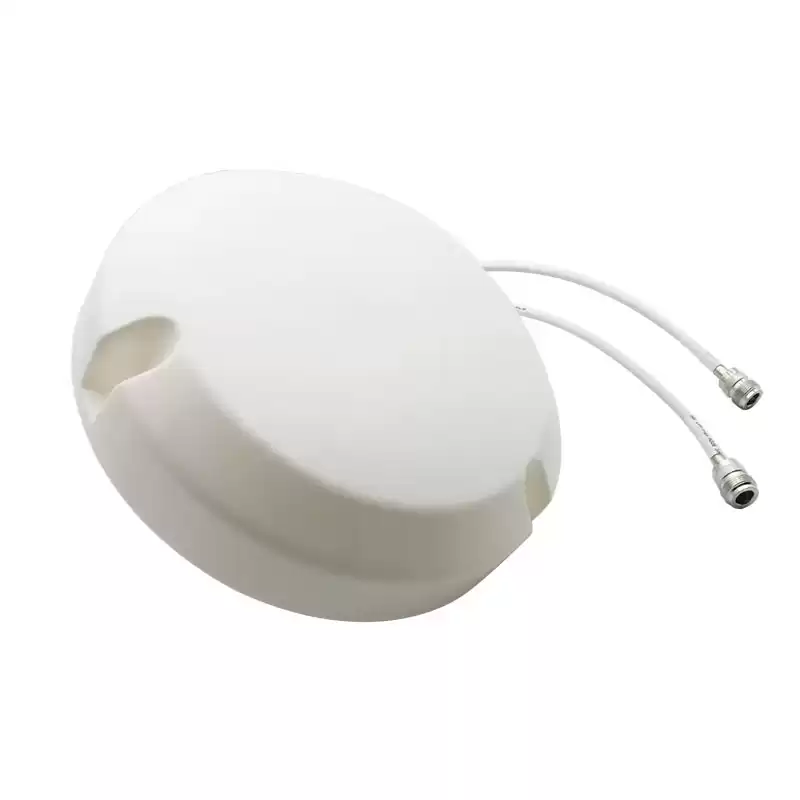

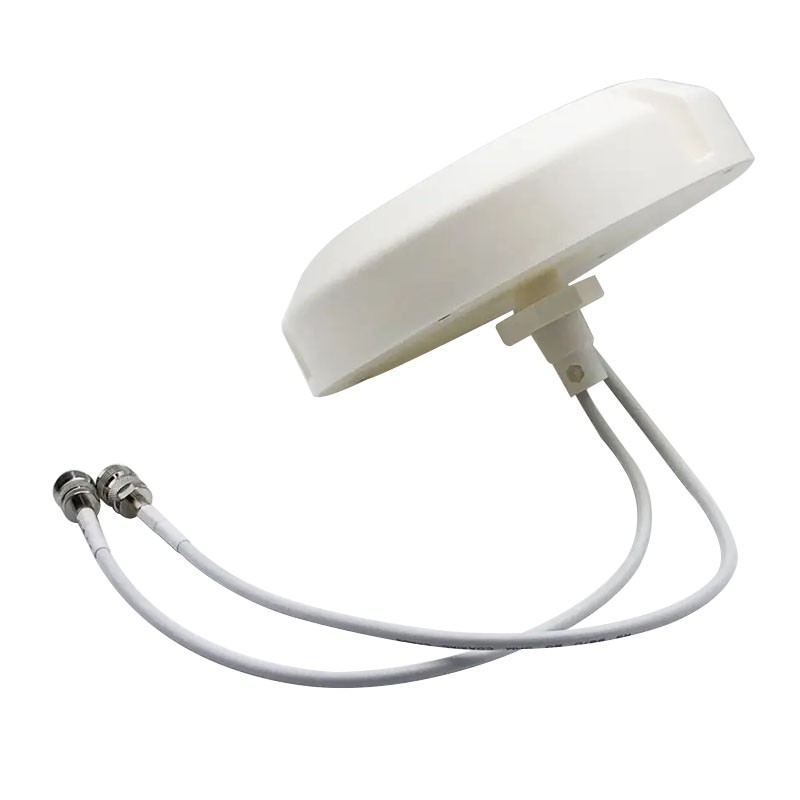

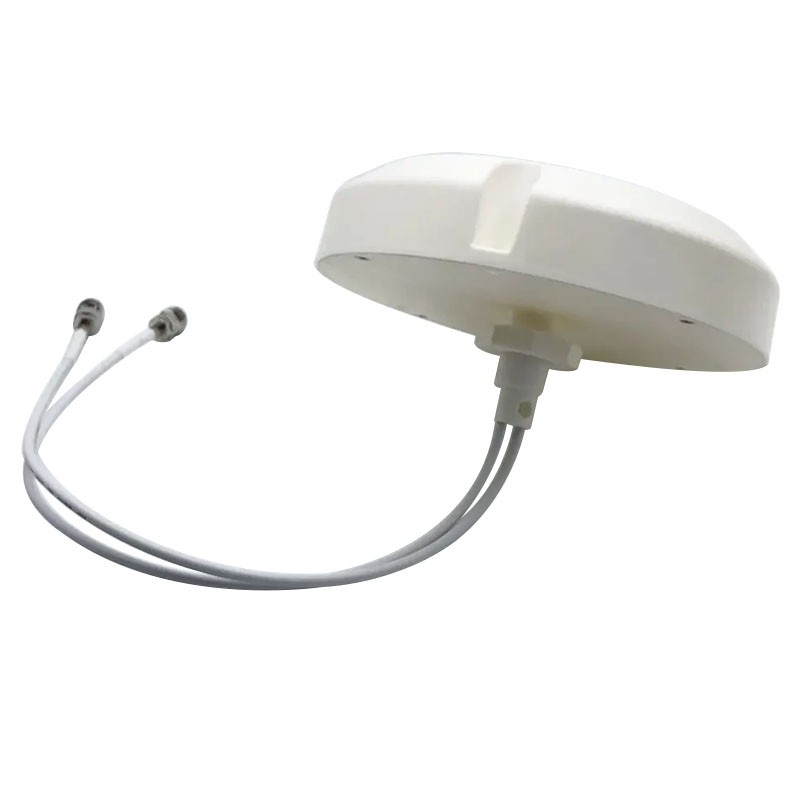

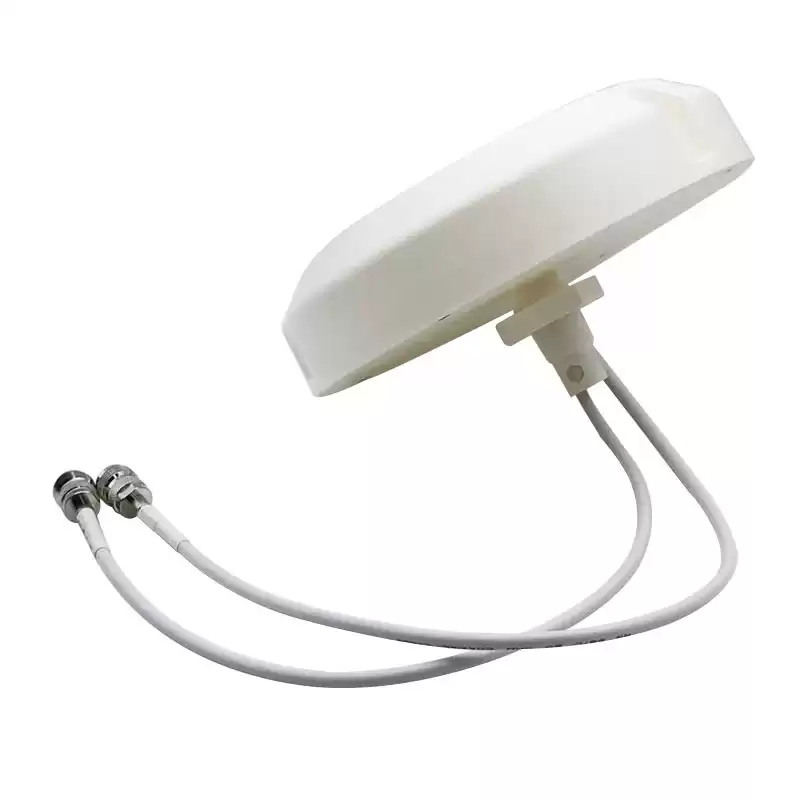

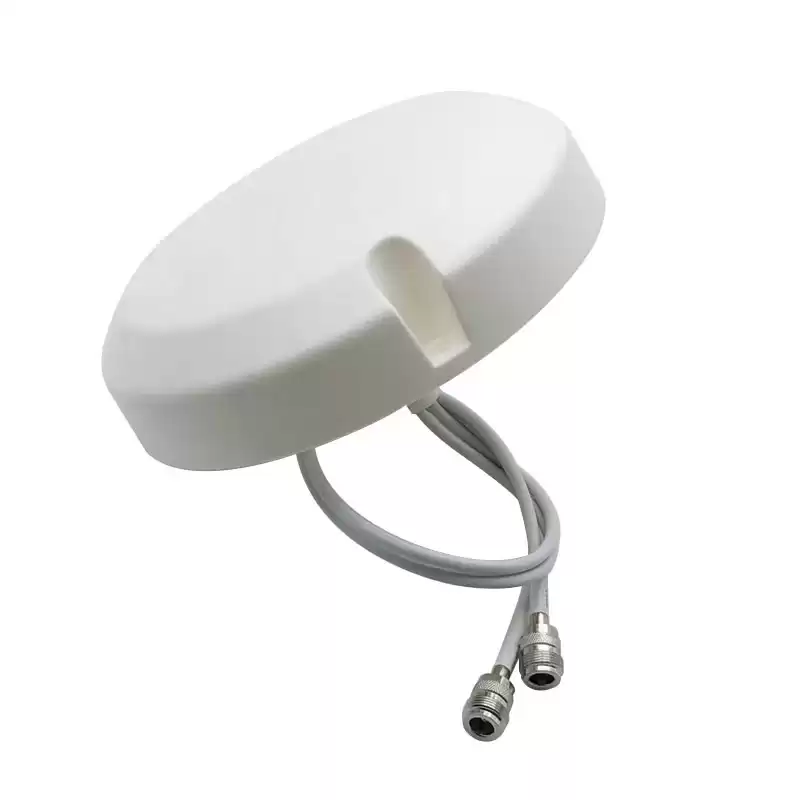

2.4GHz 5.8GHz 3-5dBi Omni Direction N Female Connector MIMO Ceiling Antenna for Indoor DAS Antenna

Features:

  • Radiation Pattern of Antenna;
  • Polarization of Antenna;
  • Intensity of Radiation;
  • Effective Aperture;
  • Gain & Directivity;
  • Bandwidth;
  • Power Gain & Radiation Efficiency;
  • Effective Length;
  • Input Impedance.



2.4GHz 5.8GHz 3-5dBi Omni Direction N Female Connector MIMO Ceiling Antenna for Indoor DAS Antenna

The Antenna, also called Aerial, component of radio, television, and radar systems that directs incoming and outgoing radio waves. Antennas are usually metal and have a wide variety of configurations, from the mastlike devices employed for radio and television broadcasting to the large parabolic reflectors used to receive satellite signals and the radio waves generated by distant astronomical objects.



Specifications

ELECTRICAL DATA
Frequency Range(GHz)  2.4/5.8GHz
VSWR  ≤1.5
Gain(dBi)   3-5dBi
Input Impedance(Ω)  50
Cable Type  /
Connector Type  N Female Connector
Mounting  Ceiling Mount
Housing White
Storage Temperature  -45 to +75
Operating Temperature  -45  to +75



Applications

  • Antenna Gain
  • Aperture
  • Directivity and bandwidth
  • Polarization
  • Effective length
  • Polar diagram




Product Tags 2.4GHz MIMO Ceiling Antenna          3dbi MIMO Ceiling Antenna          N Connector Ceiling Antenna          N Female MIMO Ceiling Antenna          5dBi MIMO Ceiling Antenna          N Female MIMO Ceiling Antenna
