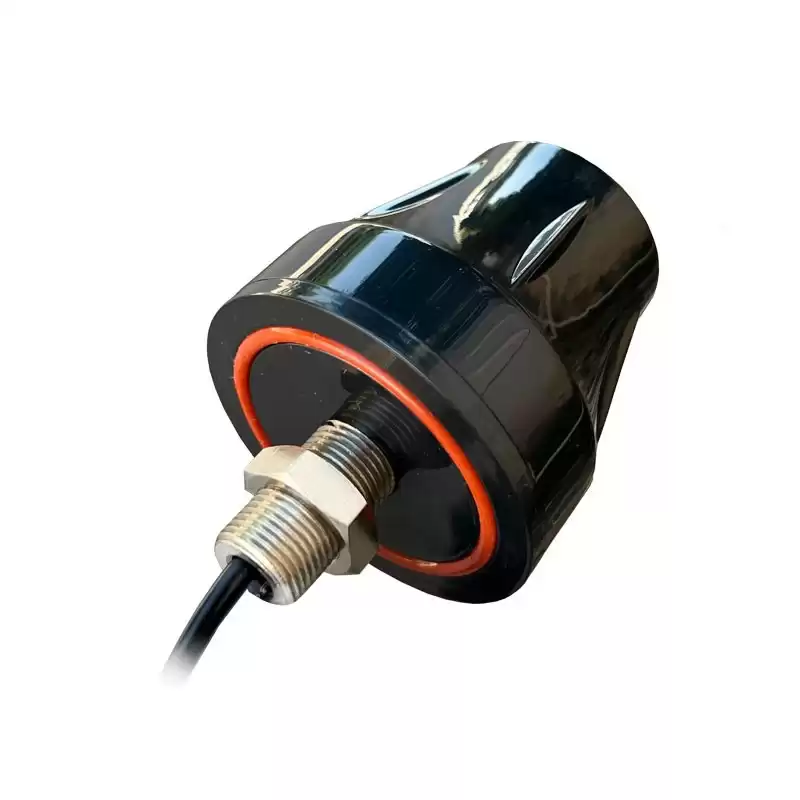

2.4GHz 5.8GHz 5dBi Omni Direction WIFI WLAN Antenna SMA Connector Screw Mount with RG174 Cable

Features:

  • Radiation Pattern of Antenna;
  • Polarization of Antenna;
  • Intensity of Radiation;
  • Effective Aperture;
  • Gain & Directivity;
  • Bandwidth;
  • Power Gain & Radiation Efficiency;
  • Effective Length;
  • Input Impedance.



2.4GHz 5.8GHz 5dBi Omni Direction WIFI WLAN Antenna SMA Connector Screw Mount with RG174 Cable

The Antenna, also called Aerial, component of radio, television, and radar systems that directs incoming and outgoing radio waves. Antennas are usually metal and have a wide variety of configurations, from the mastlike devices employed for radio and television broadcasting to the large parabolic reflectors used to receive satellite signals and the radio waves generated by distant astronomical objects.



Specifications

ELECTRICAL DATA
Frequency Range(GHz)  2.4/5.8
VSWR  ≤1.5
Gain(dBi)   5dBi
Input Impedance(Ω)  50
Cable Type  /
Connector Type  SMA Male
Mounting  /

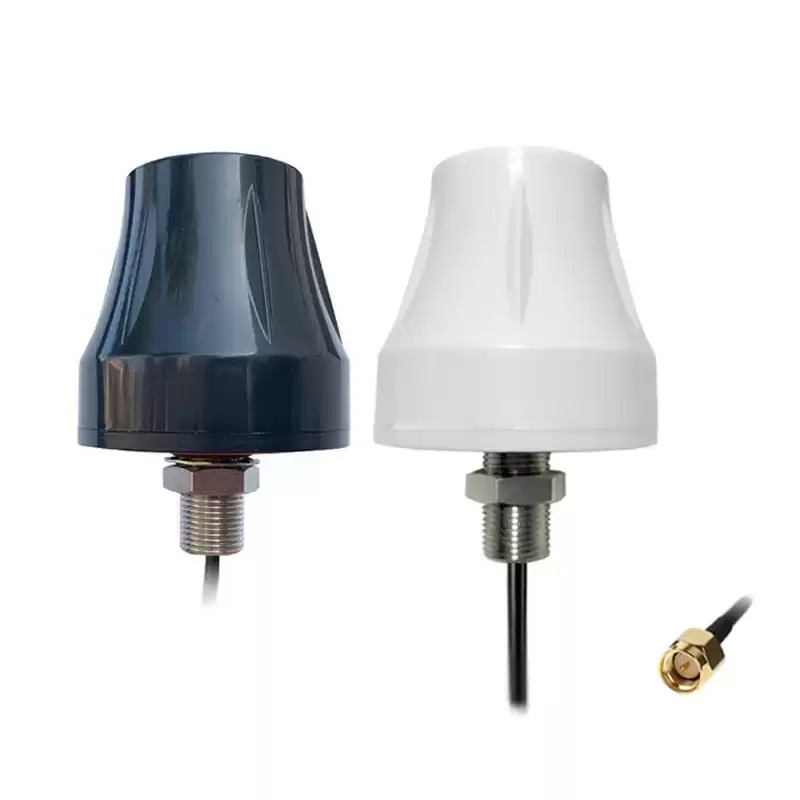

Housing  Black/White
Storage Temperature  -45'c to +75'c
Operating Temperature  -45'c  to+75'c



Applications

  • Antenna Gain
  • Aperture
  • Directivity and bandwidth
  • Polarization
  • Effective length
  • Polar diagram




Product Tags 2.4GHz 5.8GHz WiFi Antenna          2.4GHz 5.8GHzI WiFi WLAN Antenna          5dBi Omni WiFi Antenna          SMA 2.4GHz 5.8GHz Antenna          Antenna 2.4GHz 5.8GHz          2.4GHz 5.8GHz Antenna
