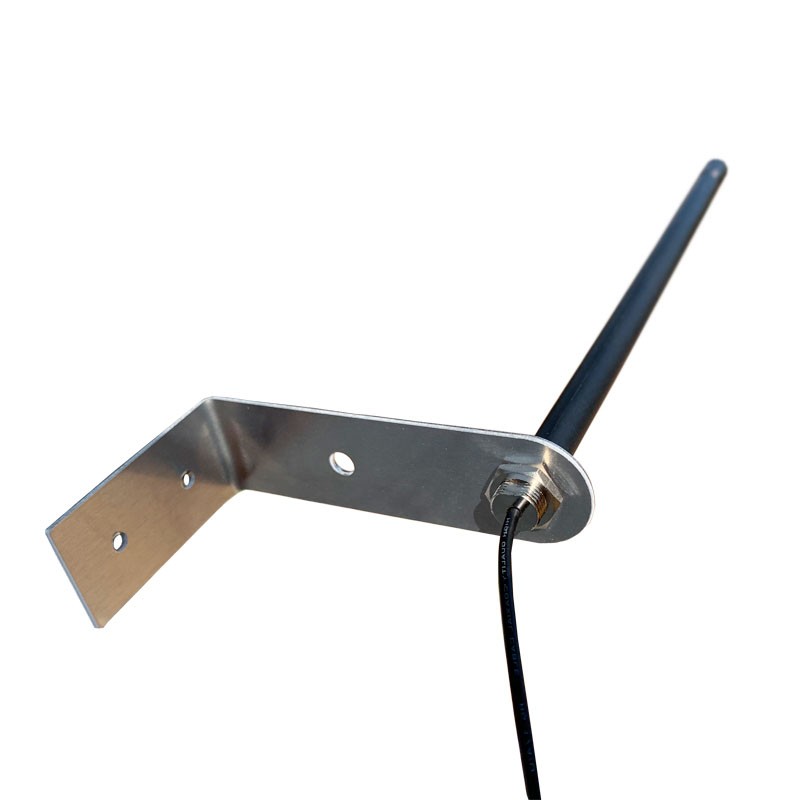

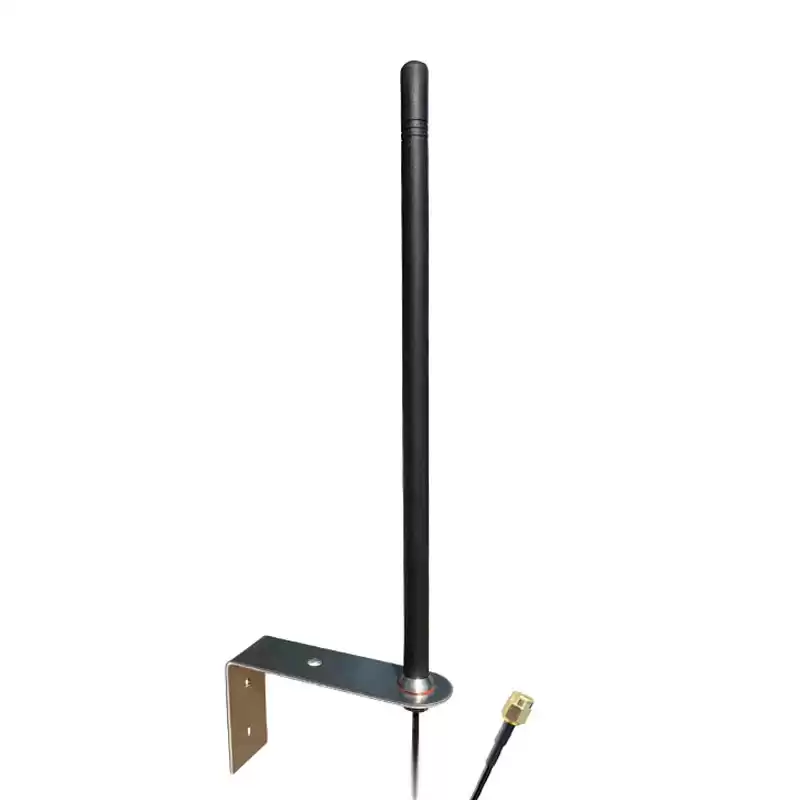

2.4GHz 5dBi Omni Direction SMA Male Connector Wall Mount Antenna with RG174 Cable

Features:

  • Radiation Pattern of Antenna;
  • Polarization of Antenna;
  • Intensity of Radiation;
  • Effective Aperture;
  • Gain & Directivity;
  • Bandwidth;
  • Power Gain & Radiation Efficiency;
  • Effective Length;
  • Input Impedance.



2.4GHz 5dBi Omni Direction SMA Male Connector Wall Mount Antenna with RG174 Cable

The Antenna, also called Aerial, component of radio, television, and radar systems that directs incoming and outgoing radio waves. Antennas are usually metal and have a wide variety of configurations, from the mastlike devices employed for radio and television broadcasting to the large parabolic reflectors used to receive satellite signals and the radio waves generated by distant astronomical objects.



Specifications

ELECTRICAL DATA
Frequency Range(GHz)  2.4GHz
VSWR  ≤1.5
Gain(dBi)   5dBi
Input Impedance(Ω)  50
Cable Type  /
Connector Type  SMA Male Connector
Mounting  Wall Mount
Housing Black/White
Storage Temperature  -45 to +75
Operating Temperature  -45  to +75



Applications

  • Antenna Gain
  • Aperture
  • Directivity and bandwidth
  • Polarization
  • Effective length
  • Polar diagram




Product Tags 2.4GHz 5dBi Wall Mount Antenna          5dbi VHF Wireless Antenna          SMA Connector Wall Mount Antenna          SMA Male Omni Gain Antenna          5dBi Wall Mount Antenna          SMA Male Wall Mount Antenna
