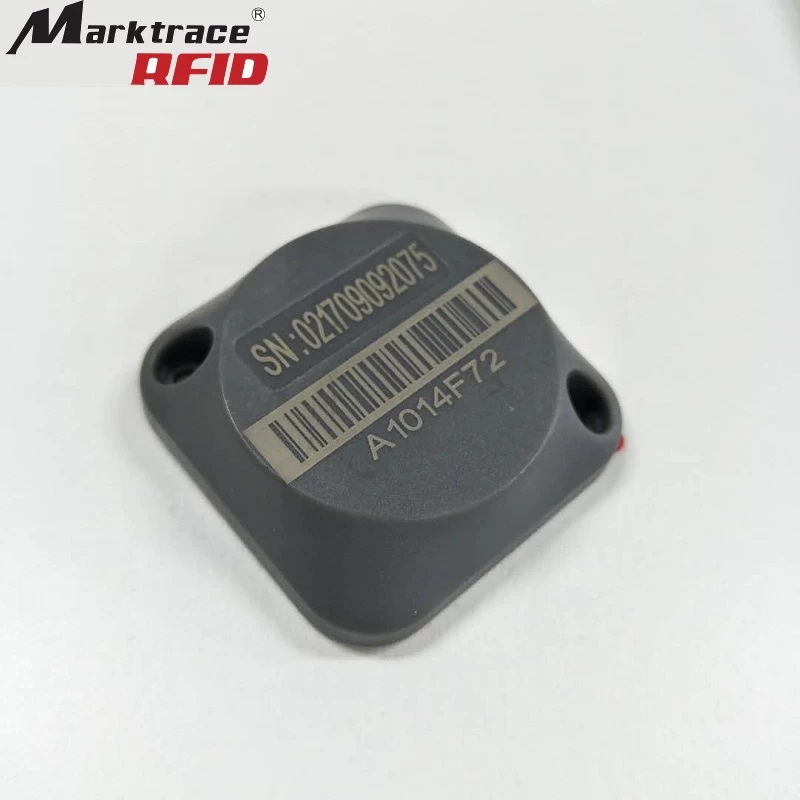

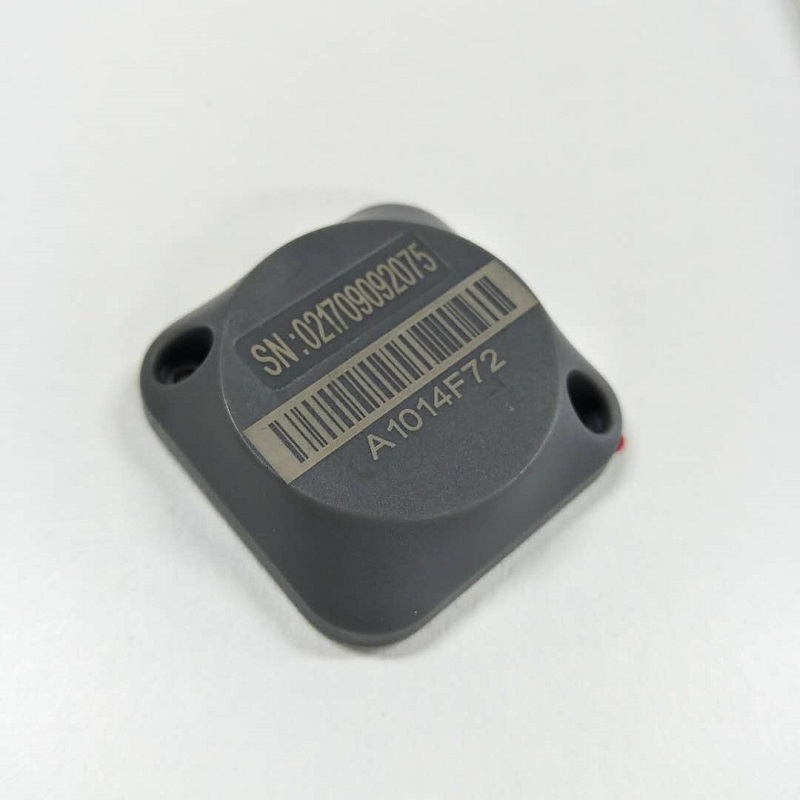

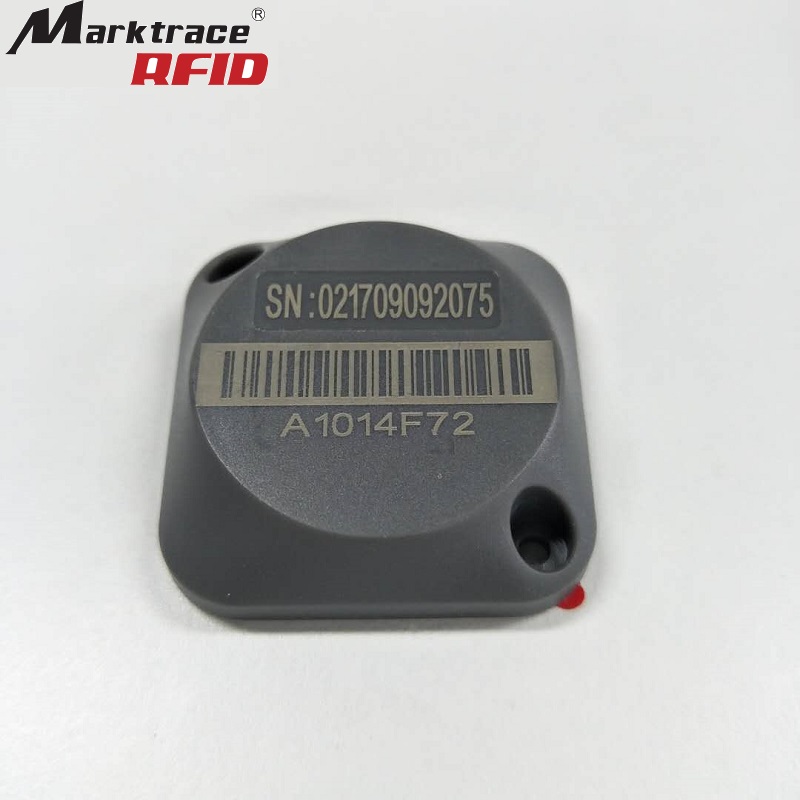

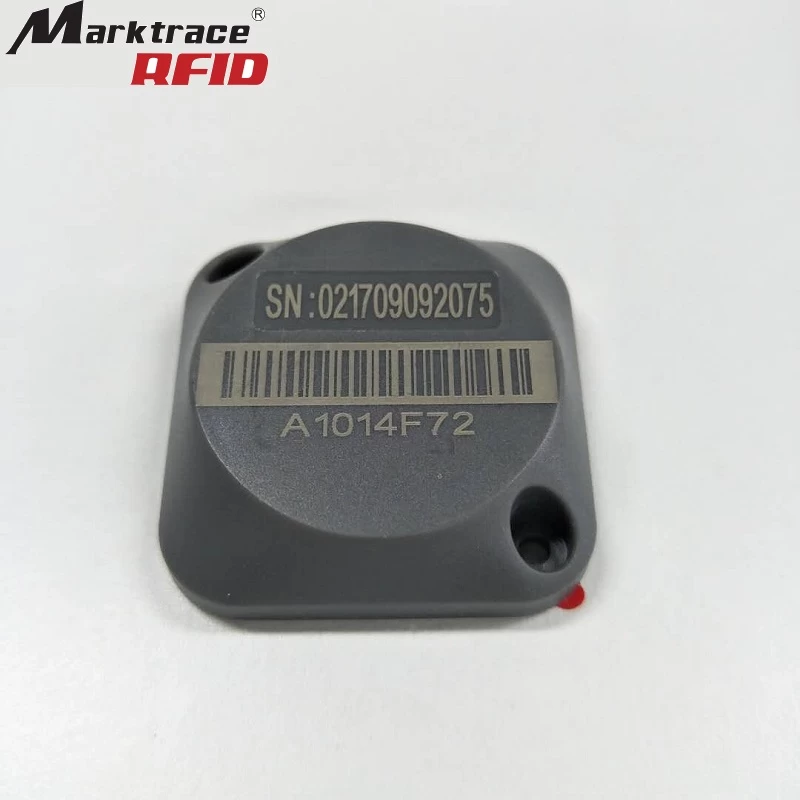

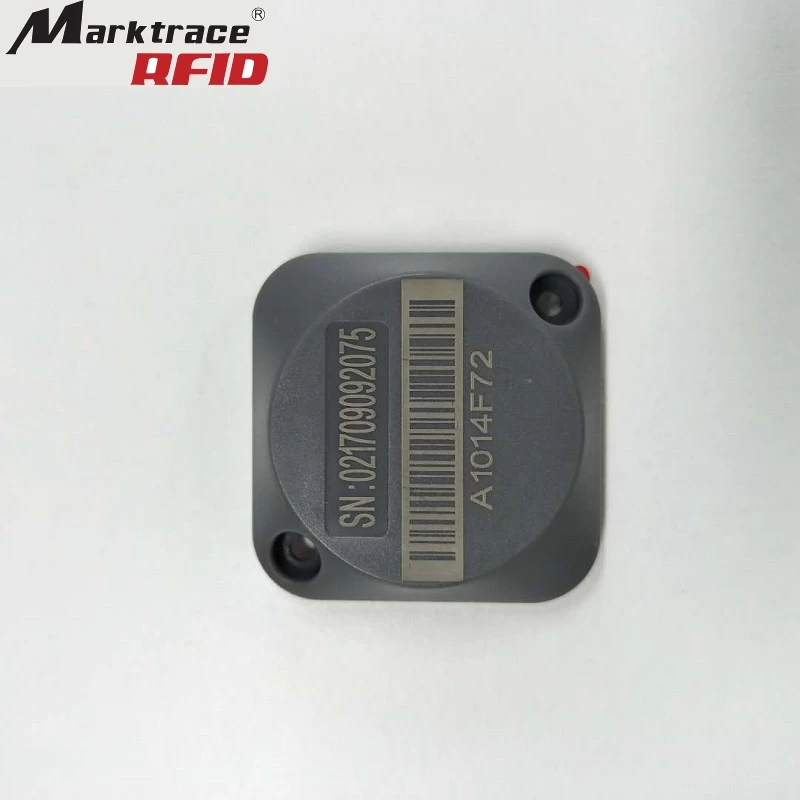

2.4Ghz Active RFID Tag for Assets Control
2.4Ghz Active RFID Tag for Assets Control
1.Suitable to adopt fixed
frequency working mode, with powerful anti-inteference ability.
2.Effective reading range
up to 80m (depend on reader and antenna software configurable).
3.Ultra-low power consumption
average working current< 10UA
4.Active tag, very important part of a RFID system, especially for people tracking and
assets management etc
5.Multi-tag reading at the same time(more than 100pcs per second), no
limitation or interference by tag quantity in the reading range
6.Inductively coupled with transformer model.
Specification
Model No.：MR3837C
Physical
Feature
Material: ABS
Dimension: 40*40*15mm(with 3M
adhesive sticker)
IP grade: IP67
2.4G
RF Feature
Sensitive way: Active
launch
Time interval: 500ms
Signal modulation way:
GFSK
Communicate rate: 1Mbit/s
Work frequency: 2.48GHz
Output power: 7dbm
Electric
Feature
Average current: <15uA
Battery model no.: CR2450H
Battery capacity: 550mA
Battery life: 3 years
Environment
Feature
Work tempt.: -15℃~+45℃
Storage tempt.: -30℃~+65℃
Package
Package: 1 carton=10
boxes=1000PCS
Our Advantage
1.ABS maternal, heat resistant
2.0-80m reading range
3.Easy usage for items tracking
4.Card type water-proof design
5.Continuously testing stability to ensure long stable work under
6.Long communication distance and good performance of anti-collision
7.Strong security and fast reading speed

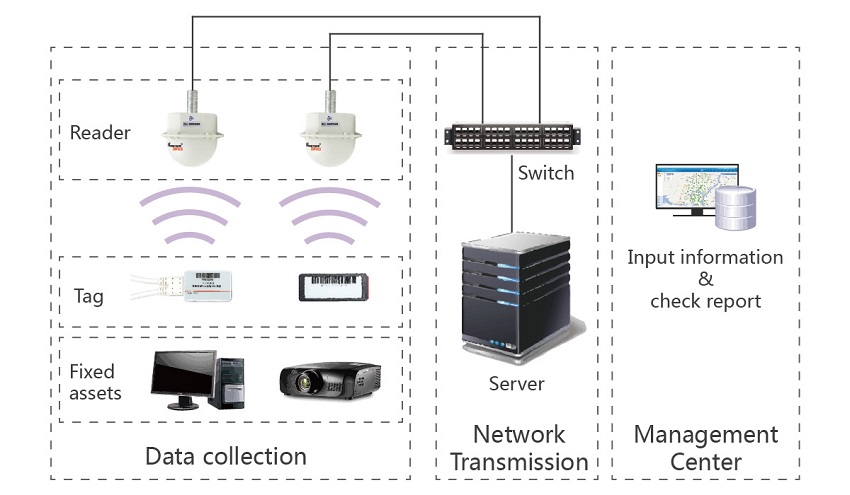

Application
1.Zone tracking Management
2.Student attendance system
3.Commodity flow control and tracking management
Do you like this 2.4Ghz Active RFID Tag, if you want wholesale 2.4GHz active rfid tags or custom rfid tags, contact us!
