Product Name
2.4KWH 48V 50AH solar energy storage battery system at cost-effective price
Highlights
1.Developed with the advanced LFP (lithium iron phosphate) cell to ensure the highest safety and most promising cycle life times.
2.High-end BMS protects the cell in all angels such as abnormal temperature, current, voltage, SoC, SoH,alaram etc
3.Easy installation cabinet design
4. Gain more power by parrallel

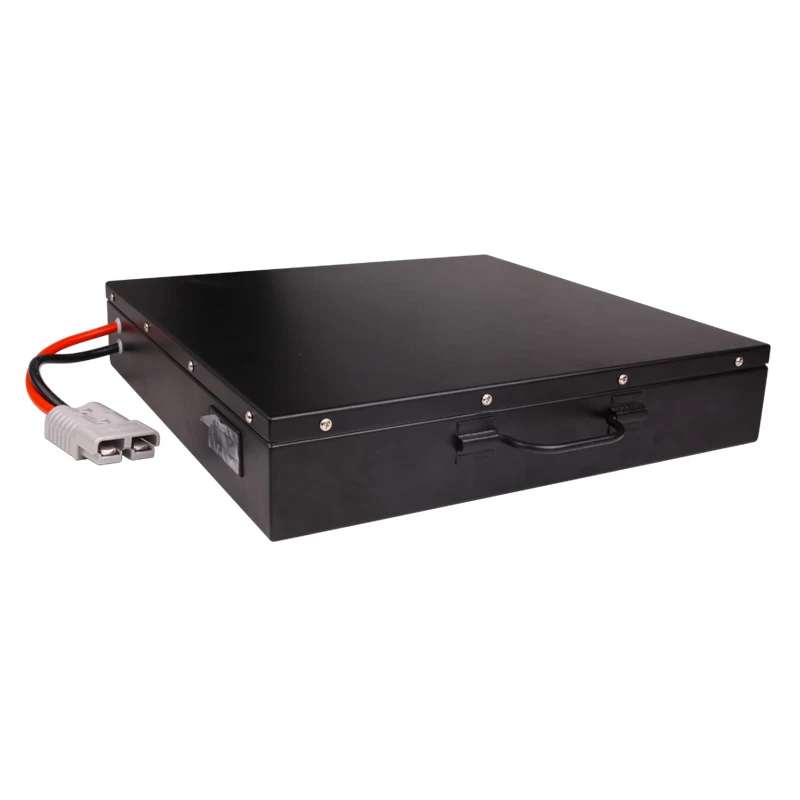

2.4KWH 48V 50AH solar energy storage battery system Picture as Below
We provide scalable energy storage from 5kwh to 200 kWh
Specification for LiFePO4 solar battery 48v 50Ah 2.4KWH System
|
MODEL
|
OSN-ESS-LFP4850
|
|
PERFORMANCE
|
|
Rated Capacity
|
50 Ah
|
|
Nominal Voltage
|
50.6 V
|
|
Discharge Ending Voltage
|
32 V
|
|
Charging Limited Voltage
|
58.4 V
|
|
Max. Charging Current
|
50 A
|
|
Max. Continuous Discharging Current
|
50 A
|
|
Parallel Connection
|
Optional (up to 16P). When paralleling Max. charging current = 20A
|
|
Containing Cell
|
32700
|
|
Design Life
|
More than 30 years
|
|
Cycle Life
|
30000 cycles @85% DOD (dependant on actual DOD, usage & temp.)
|
|
Discharge Rate
|
1C
|
|
Response Time
|
> 1ms
|
|
MECHANICAL SPECIFICATIONS
|
|
Dimensions (W*D*H)
|
440*430*85mm
|
|
Weight
|
27Kg
|
|
Enclosure
|
steel enclosure with protection handles
|
|
The size can be customized
|
|
|
OTHER
|
|
Operating Temperature
|
-20 to +60°C
|
|
Storage Temperature
|
-20 to +60°C
|
|
Humidity
|
5% to 95% Relative Humidity (Non-condensing)
|
|
Warranty
|
5 years
|
Other Features
1. Modular design gives the end customers the p ower of choice of capacity.
2. Compatible with most of the available Hybrid inverters.
3. Simple buckle fixing minimize the installation time and cost.
Application:
Related Products
With 10 years experience of making LiFePO4/NCM/LTO packs, we can customize any packs for you.
Please email us at service@osnpower.com to get solution and quotation.
