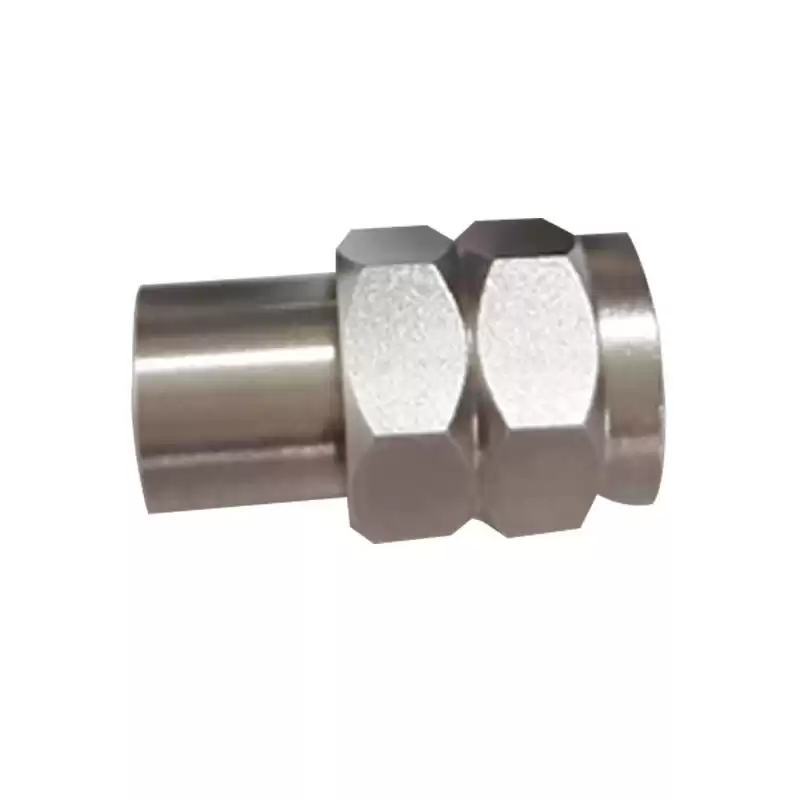

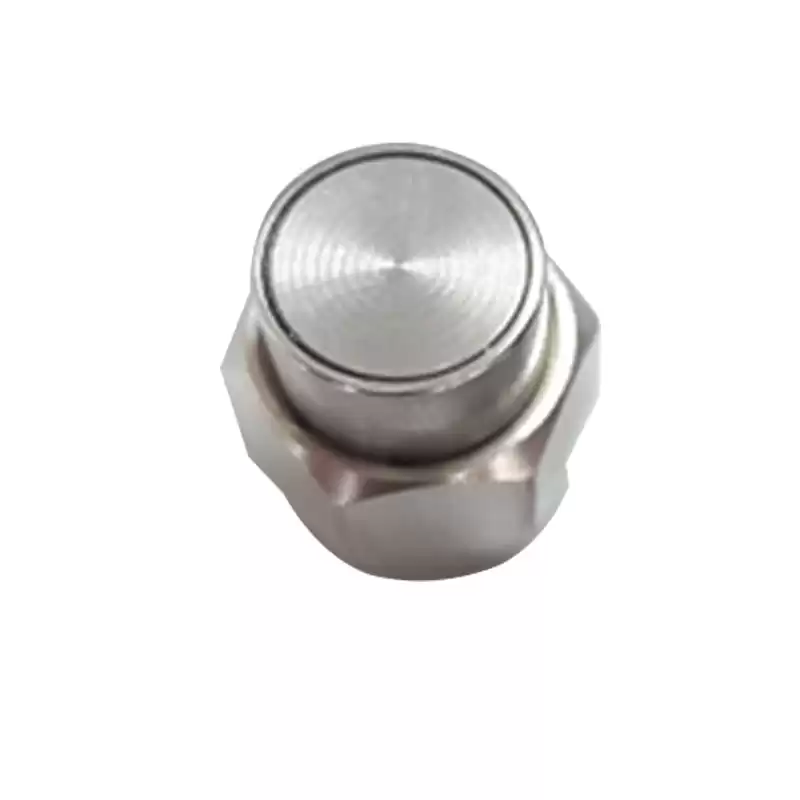

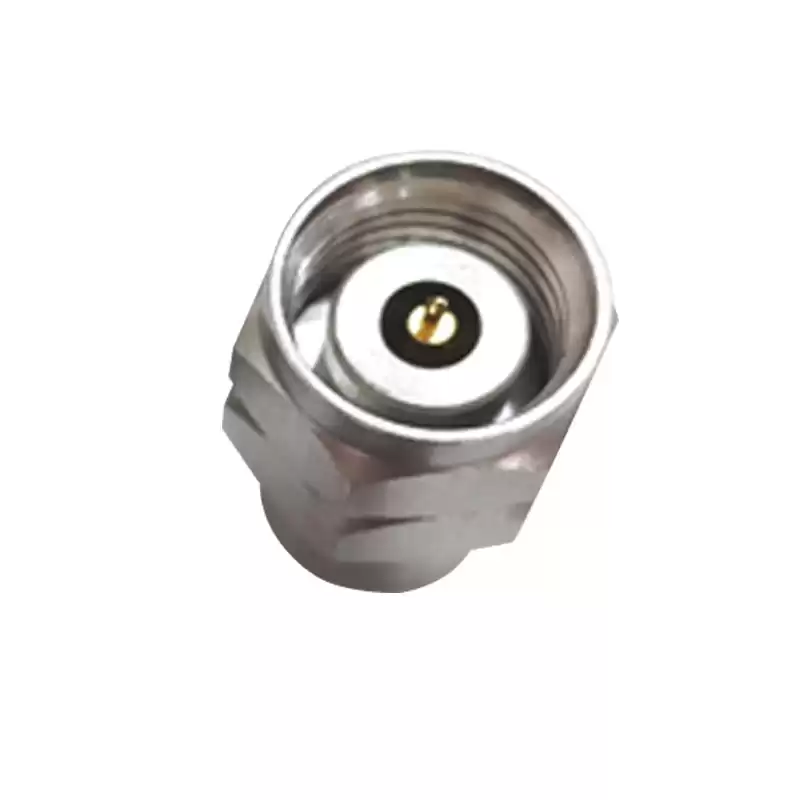

2.4mm Male Termination Dummy Load 50ohm DC-40GHz RF Terminator
The 2.4mm Male dummy load (also known as 2.4mm Male termination or 2.4mm Male RF load) has maximum frequency up to 50GHz. This ROHO Termination is a RF load rated to 2W and has a 50ohm impedance;Signal termination often requires the installation of a terminator at the beginning and end of a wire or cable to prevent an RF signal from being reflected back from each end, causing interference, or power loss.
Specifications
| ELECTRICAL DATA |
|
| Frequency |
DC~40GHz |
| Connector |
2.4mm Male |
| VSWR |
≤1.2 |
| Power |
1W |
| Impedance |
50Ω |
| Temperature Range |
-55℃～+125℃ |
| MATERIAL DATA |
|
| Connector body |
Stainless Steel,Passivate or Brass,Plating Ni |
| Insulator |
PTFE |
| Inner Conductor |
Phosphor Bronze ,Plating Au |
Applications
- Measurement systems
- Multi-port microwave device
- Directional couplers
- Isolators
