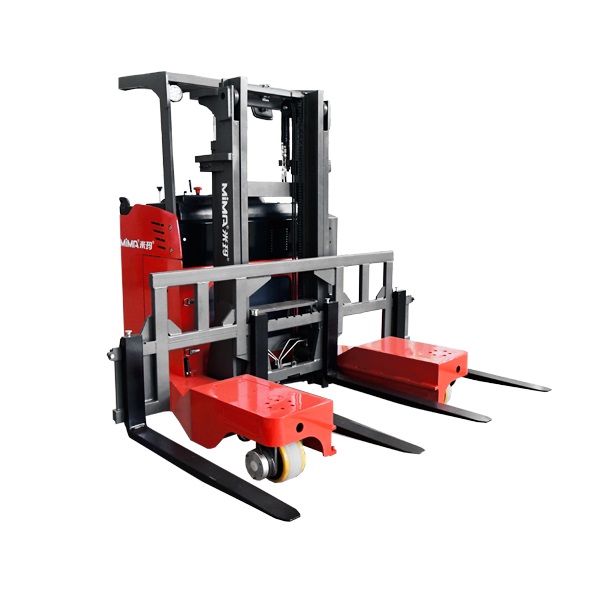

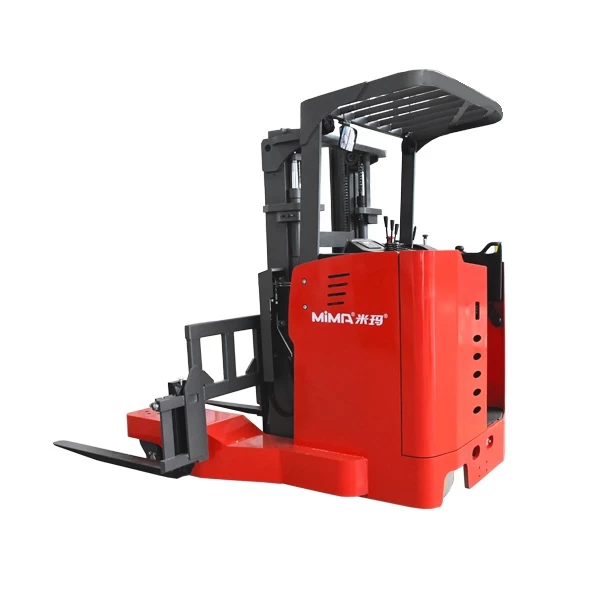

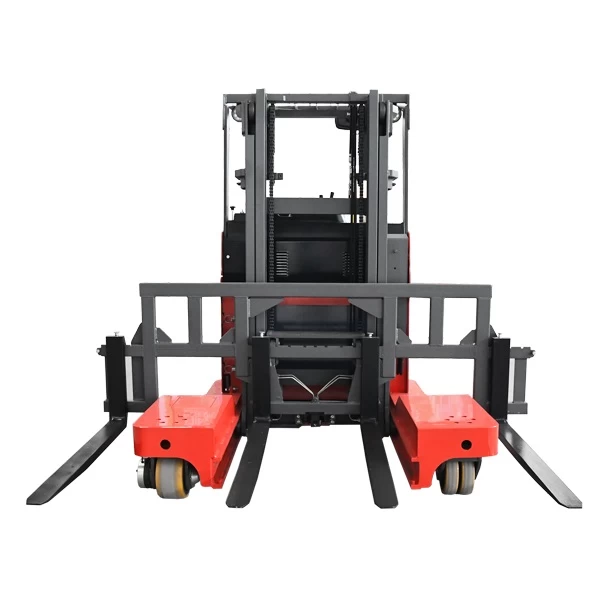

2.5 Ton 4-Directional reach truck for long material handling solution
Main Features:
1.Electric powering steering and one key switch function, with switch shortcut key of straight travelling and side travelling, high stacking efficiency.
2.Imported gear pump, full buffer hydraulic cylinder, working stable and low noise.
3.Imported controller, high precisioncontrolling, easy electric controll setting, high performance and low fault.
4.Impored hydraulic hose, long service life.
5.Cast steel drive box and high strength polyurethane tires.
Specification:
|
Brand
|
|
MiMA
|
MiMA
|
|
Model
|
|
MQB2530
|
MQB2545
|
|
Power Type
|
|
Battery
|
Battery
|
|
Operation Type
|
|
Stand on
|
Stand on
|
|
Service weight(incl. battery)
|
kg
|
3700
|
3900
|
|
Rated Capacity
|
Q(kg)
|
2500
|
2500
|
|
Load Center
|
C(mm)
|
500
|
500
|
|
Lifting height
|
h3(mm)
|
3000
|
4500
|
|
Forks size
|
l/e/s(mm)
|
920/100/45
|
920/100/45
|
|
Front Overhang
|
x(mm)
|
175
|
175
|
|
Turning radius
|
Wa(mm)
|
1975
|
1975
|
|
Max. climbing ability
|
%(tanθ )
|
≤10
|
≤10
|
|
Driving speed(load/unload)
|
km/h
|
7.9/9
|
7.9/9
|
|
Lifting speed(load/unload)
|
mm/s
|
220/300
|
220/300
|
|
Lowering speed(load/unload)
|
mm/s
|
310/260
|
310/260
|
Advantages:
Long material handling
●Based on 4 direction travelling, use for long material in very narrow aisle, material max length can reach to 10M
4 direction travelling modes
●Forward and backward, left and right modes, very easy to switch with low fault and high efficiency
●With high definition drive wheel display, easy to adjust direction in narrow aisle, very safe and high precision
Safe and reliable
●Full AC system, long service life, low energy consumption and working fast
●High capacity battery, strong power with long working time, easy to charge, very safe and low maintenance cost.
Company Exhibition:
MiMA can offer you electric pallet truck, pallet stacker, counterbalance stacker,reach truck, stand-on reach truck, seated reach truck, reach stacker, electric counterbalance forklift truck, counter balance forklift, tow tractor, order picker, narrow aisle forklift, 4-direction reach truck, 3-way pallet stacker(VNA), multi-direction forklift, special forklift, AGV and other customized types for options, which can provide our customers with logistics handling solutions from 500kg to 100,000kg. Due to product serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.
Certification:
FAQ:
Q1: Are you electric forklift factory?
A1: Yes, we are the professional manufacturer of electric forklift for more than 20 years.
Q2: How about the delivery time?
A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM service?
A4: Yes.
