2.5GbE 4LAN Fanless Embedded Industrial Mini Box PC, J4125 J6412 CPU, Intel i225V net chip
Product Introduction
Elevate your industrial operations with the cutting-edge J4125/J6412 CPU 4LAN Gigabit Ethernet Fanless Embedded Industrial Box PC. Unleash remarkable processing power and multi-LAN capabilities for seamless data management. Experience superior performance and durability in a fanless design, revolutionizing your connectivity and productivity.
| Specification |
Optional specification |
| Chassis |
All aluminium construction, sandblasted titanium black |
Customizable silver |

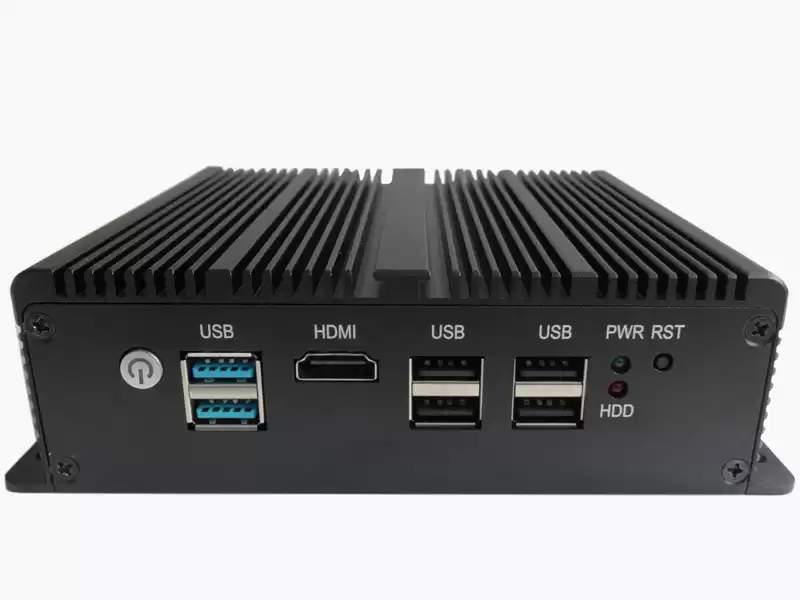

| Front |
Switch；2USB3.0；HDMI；4USB2.0；PWR/HDD indicator；Reset switch |

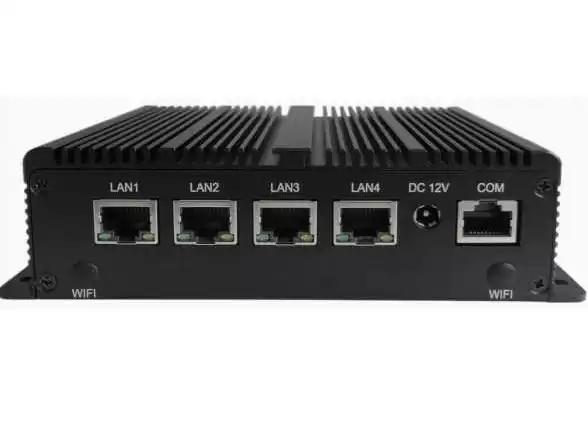

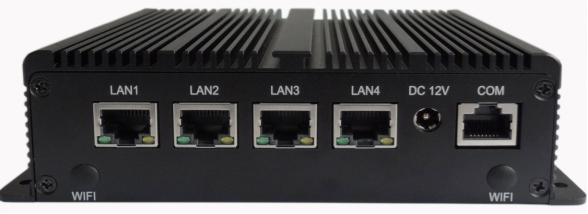

| Back |
4RJ45 2.5GbE；DC IN；COM(RJ45)； 2 WIFI holes |
|
| Hard disk rack |
The motherboard supports MSATA SSD |
|
| Motherboard |
Special soldered on-board J4125/J6412 motherboard |
|
| CPU/GPU |
J4125/J6412 |
|
| Memory |
8G DDR4 |
Optional 4G/16G DDR4 |
| Hard disk |
128G MSATA |
Optional 256G/512G/1T Msata SSD; |
| Size |
138*125*45mm（Dimensions without bracket） |
N.W/G.W |
1/1.5KG |
| Power supply |
12V adapter as standard |
|
| Installation |
Bracket installation |
Product Features
■ Soldered on board Intel J1900/J4125/J6412 CPU
■ 4LAN 2.5GbE，6USB，1COM(RJ45)
■ 2 WIFI holes
■ HDMI display interface
■ Flexible configurations with various capacities of memory and hard disks
■ DC12V input
| Work and Environment |
| Working temperature |
（0～60）℃ |
Storage temperature |
-40～75℃ |
Environmental humidity |
0~90% Air humidity, non-condensing |
| |
|
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |
| Ordering Information |
| MIS-EPIC02-4L/J4125 |
J4125 CPU |
| MIS-EPIC02-4L/J6412 |
J6412 CPU |

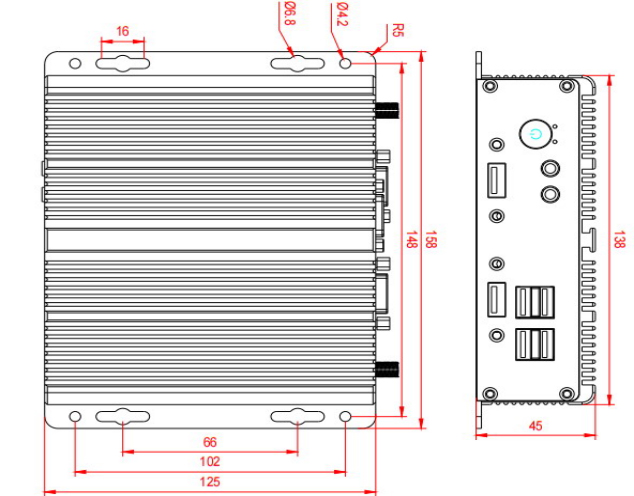

Installation Dimensional Drawing
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
