A single core cable means that there is only one conductor in an insulating layer. When the voltage exceeds 35kV, most of them use a single-core cable. The relationship between the core and the metal shield can be regarded as the relationship between the coil and the core in the primary winding of a transformer. When the single-core cable core passes current, there will be a magnetic wire cross-linked aluminum package or a metal shield layer, so that the induced voltage appears at both ends.
we also offer pvc power cable free sample for you,inquiry now!

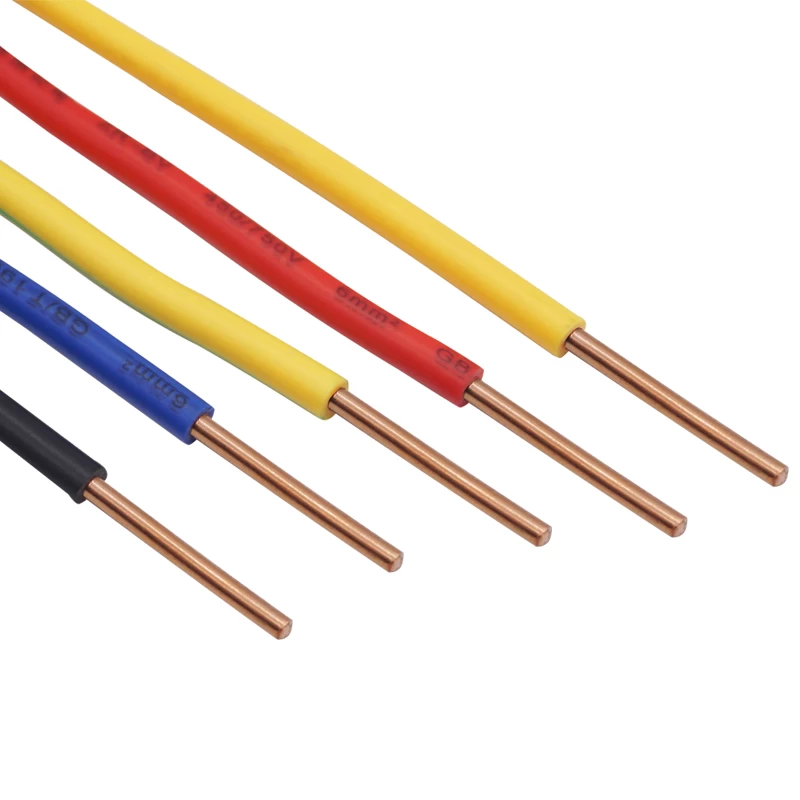

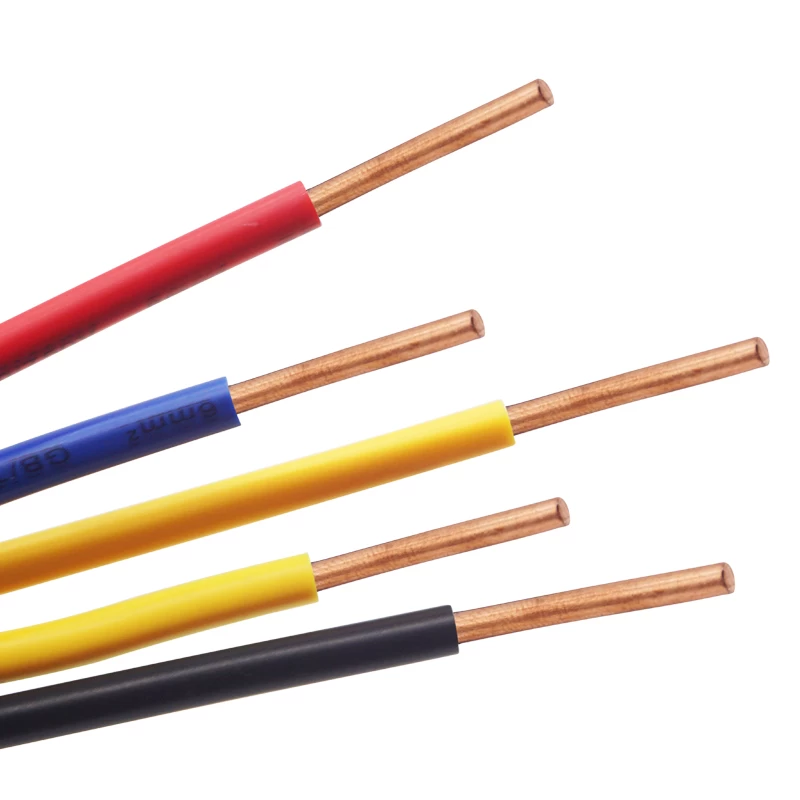

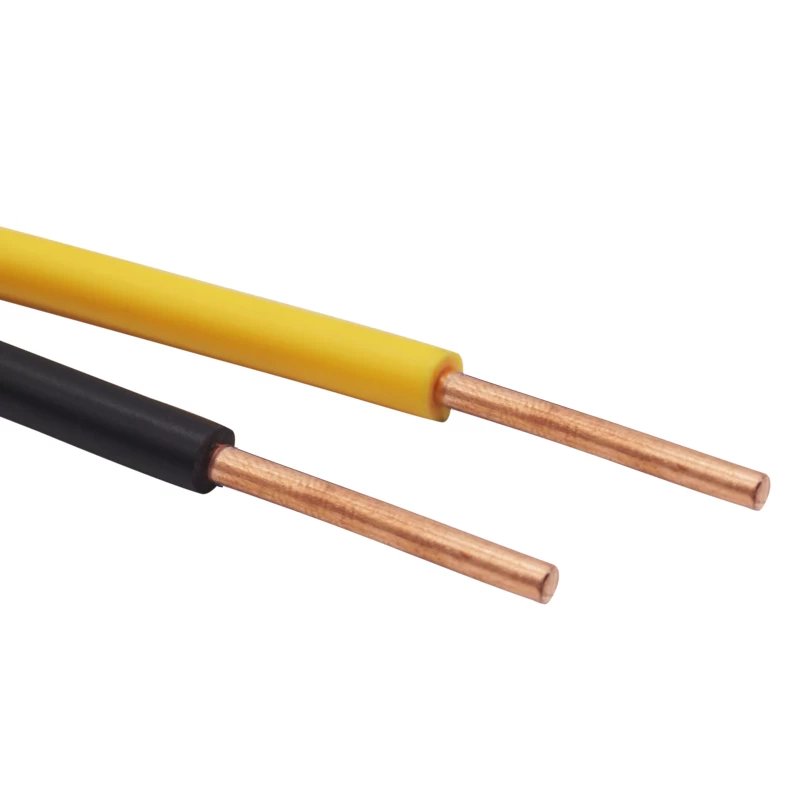

2.5mm Free Sample H05Z-K PVC Insulated Single Core Cable
Specification:
• Sample free • 100% pure copper • 100% virgin cable compound
• Fast delivery time • Reasonable price • More than 20 years experience
Application and Standard:
(1)The flexible pvc electrical cable and wires can be produced and provided according to standard IEC60227,BS6004,BS6005.
(2)The flexible pvc electrical cable and wires belong to the series of laying wires,which are mainly suitable for laying at the fixed places.They are widesly used as connectors of driving,lighting,electric equipments,instrument and telecommunication equipments with rated voltage to 450/750V.Part of the plastic wires are used at the equipment with AC rated voltage upto 300/500V.
Working condition:
(1)The flexible pvc electrical cable and wires working temperature is different according to different insulation materials, mainly 70 and 90 degrees temperature, etc.
(2)Enviroment temperature of laying should be not less than 0℃
(3)Rated voltage U0/U is 450/750V,300/300V,300/350V
Category:
(1)According to the conductor type, including solid conductor PVC insulated electrical wire, standed PVC insulated wire, Flexible PVC insulated wire with different colors.
(2)According to its shape, including flat wire, round wires, etc. with different colors.
(3)Accoding to its core number, including single core wires, multi-core wire, etc. with different colors.
