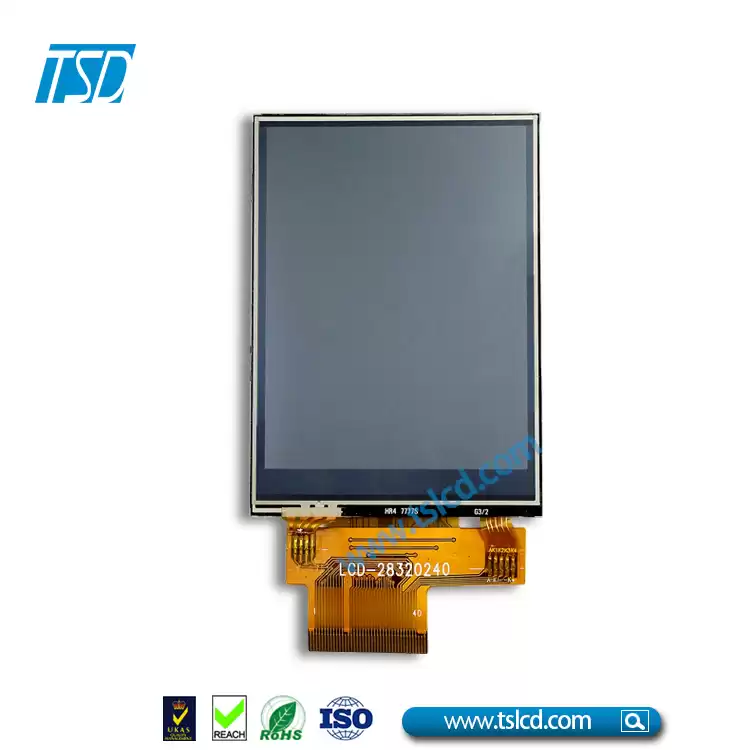

2.8 inch 240X320 TFT LCD display with ST7789V controller

2.8 inch 240X320 TFT LCD display with ST7789V controller

Facebook Twitter Pinterest LinkedIn 分享

Specification
Display type 262k color TFT,Transmissive
Description QVGA 240x320 2.8 tft lcd
Display Colors 16.7M Dithering
Outline Dimension(mm) 50x69.2x3.35
A.A.(mm) 43.2x67
Driver IC ST7789V
Resolution(dots)_ 240*RGB*320
Viewing Direction 12H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 240(H)x 3RGB x 320(V)
Dots Pitch 0.18x0.18
Color Configuration RGB stripe
Backlight 4 LEDs, White
Weight(g) TBD
Interface 8080 system 8/16 bits parallel interface
Module lifetime(Hours) 50,000-100,000
